ACS Two Part Tie
Verified by manufacturer 1 day ago
CCPI Product
Certificate type
Two Part Wall Tie
Application
Cavity wall tie applications.
Description
The ACS Two Part tie is a standard duty cavity wall tie designed to exceed the requirements of a Type 2 Tie up to a 300 mm cavity as described in PD 6697 when installed in line with the following guidance. The tie is resistant to water crossing a cavity due to the unique connection feature. This feature serves to prevent the transgression of water from the outer to the inner leaf of a building even when installed with an angle of up to 5° in an unfavourable direction. The minimum mortar joint thickness for which this tie is intended for use is 10 mm.
Features and benefits:
- Type 2 Capacity at 300mm cavity (PD 6697: 2019).
- Austenitic stainless steel, 1.4301 (304) grade.
- UKCA marked (EN 845-1).
- Lucideon tested.
- Masonry - masonry tie.
- 150-400 mm cavities.
General information
Color | Silver |
Finish | Natural |
Material | Stainless steel |
Uniclass | |
CAWS | F30/214 Cavity wall ties F30/24 Cavity wall ties |
Specification data - Cavity wall ties
Classification data | |
Standard | To BS EN 845-1 and PD 6697:. |
Tie type | PD 6697 Type 2 (Masonry – general purpose). Guidance for specification option: Up to 300 mm cavity. |
Material | Austenitic stainless steel, 1.4301 (304) grade. |
Length | ACSTPT/150. Guidance for specification option: 150 mm cavity range. ACSTPT/175. Guidance for specification option: 151-175 mm cavity range. ACSTPT/200. Guidance for specification option: 176-200 mm cavity range. ACSTPT/225. Guidance for specification option: 201-225 mm cavity range. ACSTPT/250. Guidance for specification option: 226-250 mm cavity range. ACSTPT/275. Guidance for specification option: 251-275 mm cavity range. ACSTPT/300. Guidance for specification option: 276-300 mm cavity range. ACSTPT/325. Guidance for specification option: 301-325 mm cavity range. ACSTPT/350. Guidance for specification option: 326-350 mm cavity range. ACSTPT/375. Guidance for specification option: 351-375 mm cavity range. ACSTPT/400. Guidance for specification option: 376-400 mm cavity range. |
Design embedment length (minimum) | The two-part tie requires an embedment of 62.5 mm into the bed joint in both leaves. |
Additional requirements | |
Compressive load capacity | 1040/ 1452 N. Guidance for specification option: 400 mm/ 300 mm cavity. |
Tensile load capacity | 1860 N. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Stainless steel |
Recyclability | Fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
Product certifications
CCPI Product
ACS Two Part Tie CCPi Certificate
Literature

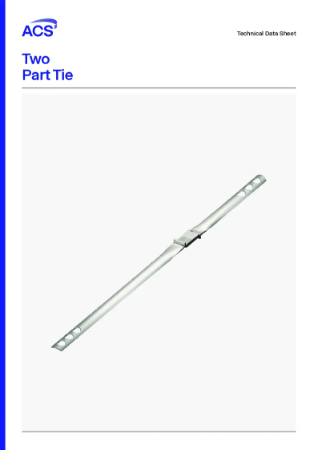

ACS Two Part Wall Tie
