Acoustiroc Plafometal Wall Panel – INFINITY
Application

Suitable for schools, offices, lobbies and plant rooms.

Description

Perforated acoustic metal wall panel.

Features and benefits:

  • Absorption class: Class A – 0.8 mm-thick metal panels, perforated and filled in with an acoustic fleece and stone wool, and covered with a black glass fibre veil.
  • All metal sheets are powder-coated with polyester paint that is capable of withstanding ultraviolet light and scratches.
  • Impact-resistant; tested to standard NF P 08-301. Indoor air quality A+.
  • All panels have a fire reaction rating of A2-s1, d0.

General information

Finish

Polyester powder-coated

Capable of withstanding ultraviolet light and scratches.

Color

Green

White

Grey

Blue

Red

Show more

Features

Impact-resistant; tested to standard NF P 08-301. Indoor air quality A+

Material

Metal

Thick metal panels, perforated and filled in with an acoustic fleece and stone wool, and covered with a black glass fibre veil.

Shape

Rectangular

Size

2700 x 790 mm

40 mm thickness.

WarrantyDescription

Full warranty available upon request

Uniclass 2015

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K13/170 Acoustic panel lining

K13/160 Proprietary

Specification data - Acoustic panel lining systems Enhanced data

Battens

U-shaped aluminium profiles

Acoustic insulation

Acoustic fleece and stone wool

Panelling

-

Type

Individual panels joined with clips

Surface material

Metal sheet

Surface finish

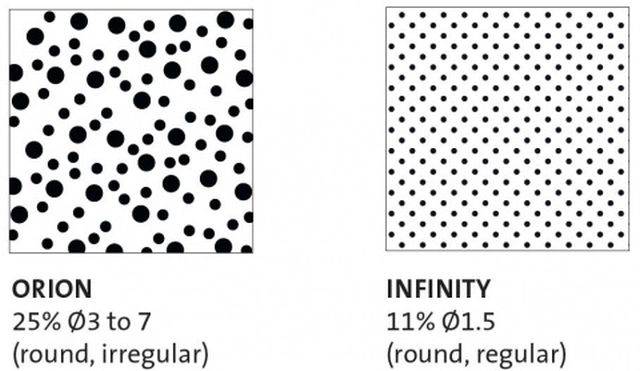

Perforated – round, regular

Fasteners

Panel clips to ensure a flush installation

Product Reference

Acoustiroc Plafometal Wall Panel – INFINITY

Finish

Anis green

Artic white

Asphalt grey

Azurite blue

Candy blue

Show more

Trim

Acoustiroc aluminium profile - Finish/ colour to match the panel.

Environmental information

Contains Red List materials

No

Country of product manufacture

France

Embodied carbon

CO2 emissions: 29 kg/m² on whole product life cycle. In addition, 12 kg/m² is gained by considering the recycling of metal, which gives 17 kg/m²

Recyclability

Dependent on material

Recycled content

13

Steel.

32

Aluminium.

45

Wool.
