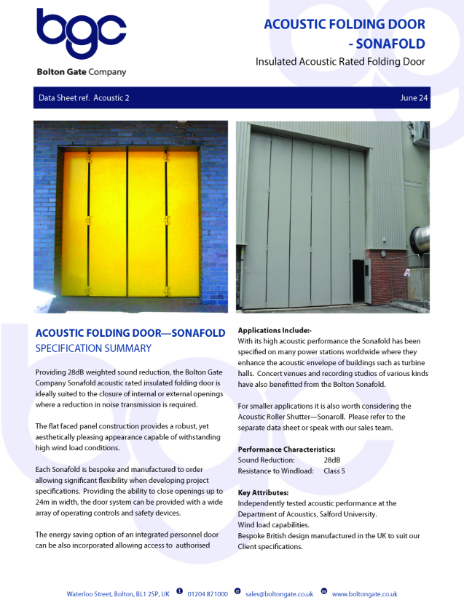

Acoustic Folding Door - Sonafold

Summary

Providing 28dB weighted sound reduction, the Bolton Gate Company Sonafold acoustic rated insulated folding door is ideally suited to the closure of internal or external openings where a reduction in noise transmission is required.

The flat faced panel construction provides a robust, yet aesthetically pleasing appearance capable of withstanding high wind load conditions.

Each Sonafold is bespoke and manufactured to order allowing significant flexibility when developing project specifications.  Providing the ability to close openings up to 24m in width, the door system can be provided with a wide  array of operating controls and safety devices.

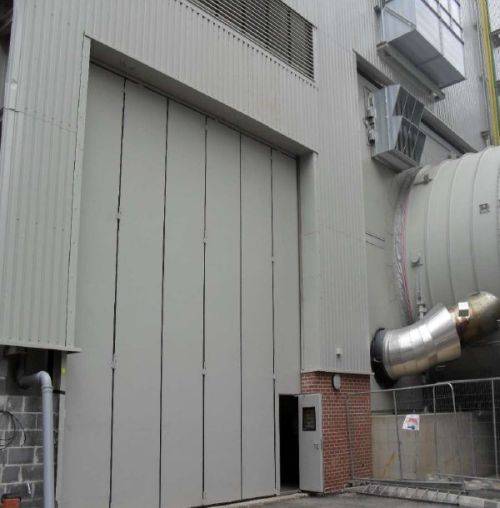

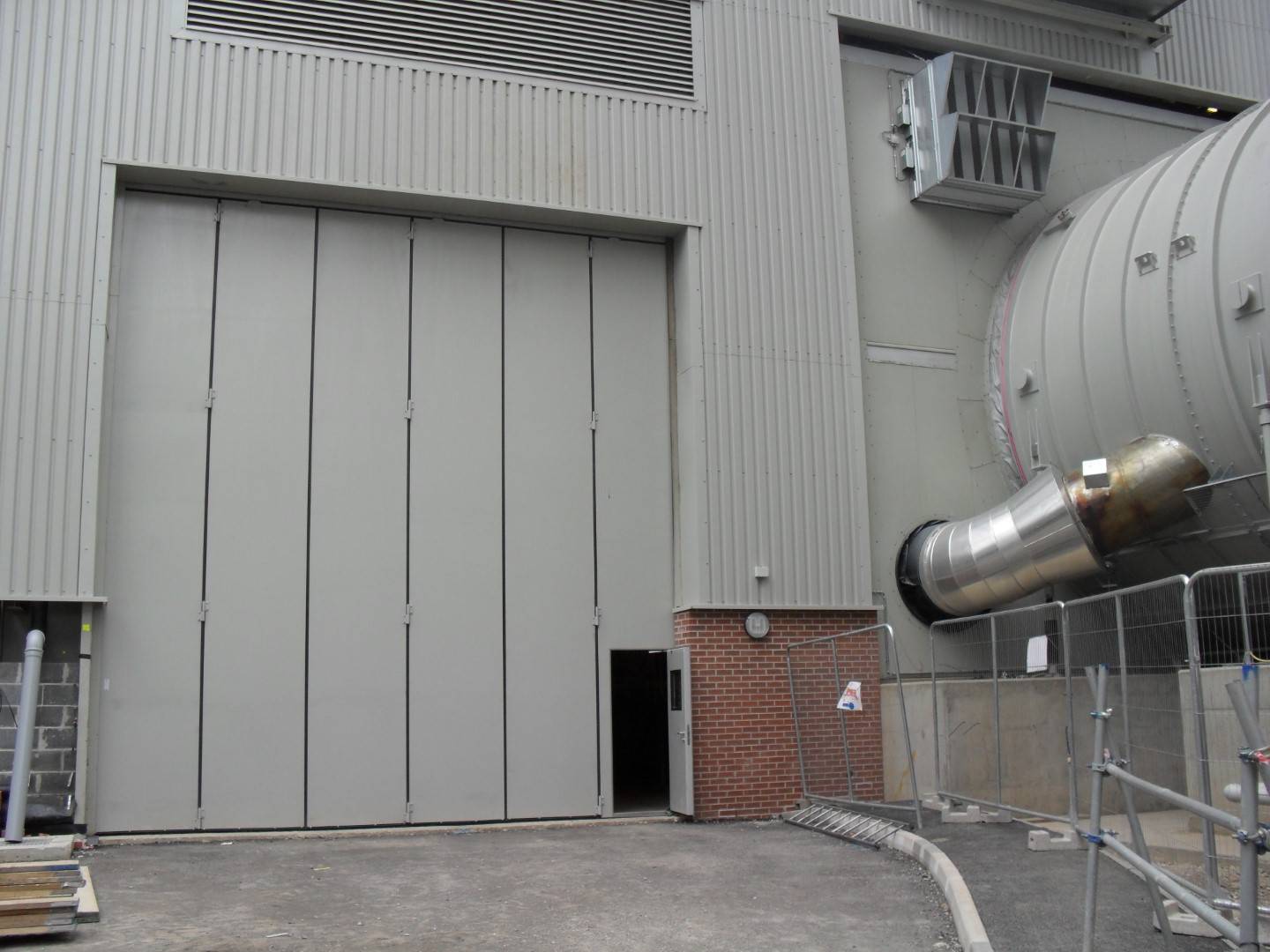

The energy saving option of an integrated personnel door can be also incorporated allowing access to authorised  personnel without the need to open the full door.

Operation

The doors are electrically operated as standard using a 400volt nominal , 3 phase direct drive motor mounted on the top track.

Emergency hand chain operation with low level engagement is provided with the motor.

A control panel with integrated open/close/stop push buttons is positioned adjacent to the opening at the bunch side.

A wireless safety edge is mounted to the front edge of the leading panel(s).

Arrangement

The standard arrangement is for the Sonafold to be face fixed internally but there is also the option of mounting  between the jambs.

The doors can be single (bunching to one side) or bi-parting.

Panels

The panels are constructed from rolled steel hollow sections with 2mm thick flat galvanised steel facing sheets.

The panels are filled with a high density, acoustic dampening, insulation material and have an overall thickness of 64mm.

Hinges / Guide Pins

The panels are connected using heavy duty hinges arranged at the top, bottom and intermediate positions.

Seals

Brush strip is mounted at the top and lower edge of the door panels and a heavy duty rubber seal is mounted to full height between each panel.

Tracks

The door panels are top hung on four wheel type bearing hangers which incorporate the panel hinges and run in a galvanised steel top track. An auxiliary top track is attached to allow the panels to fold correctly.

A steel channel bottom track is provided and set for alignment within a 200 x 75mm chase before final grouting into position. The unique profile of the bottom track both assists weather sealing whilst providing the necessary level threshold.

Finish

The majority of parts are galvanised with other components prime painted. A polyester powder coat finish to a range of standard RAL colours is available as an extra option.

Weight

Approximately 50kg per m² albeit this may vary dependent on the door width and height.

Sizes

Single: 12m clear width x 8m clear height

Pair: 24m clear width x 8m clear height

Options

· Integrated wicket door complete with hardware.

· Polyester powder coat finish to a single RAL colour.

· A wide array of control and safety equipment such as light curtains, radar, pressure mats, remote controls—please discuss with our sales team.
