Absorb-R WoodTec Perforated Ceiling - Perforated Acoustic Panel

Verified by manufacturer 1 month ago

Soundis Third party certifications:
  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • Acclaim Accreditation

    Certificate type

Perforated panels, which are available in different perforations or patterns.

Jump to:
+44 (0)330 056 3195 Website

Application

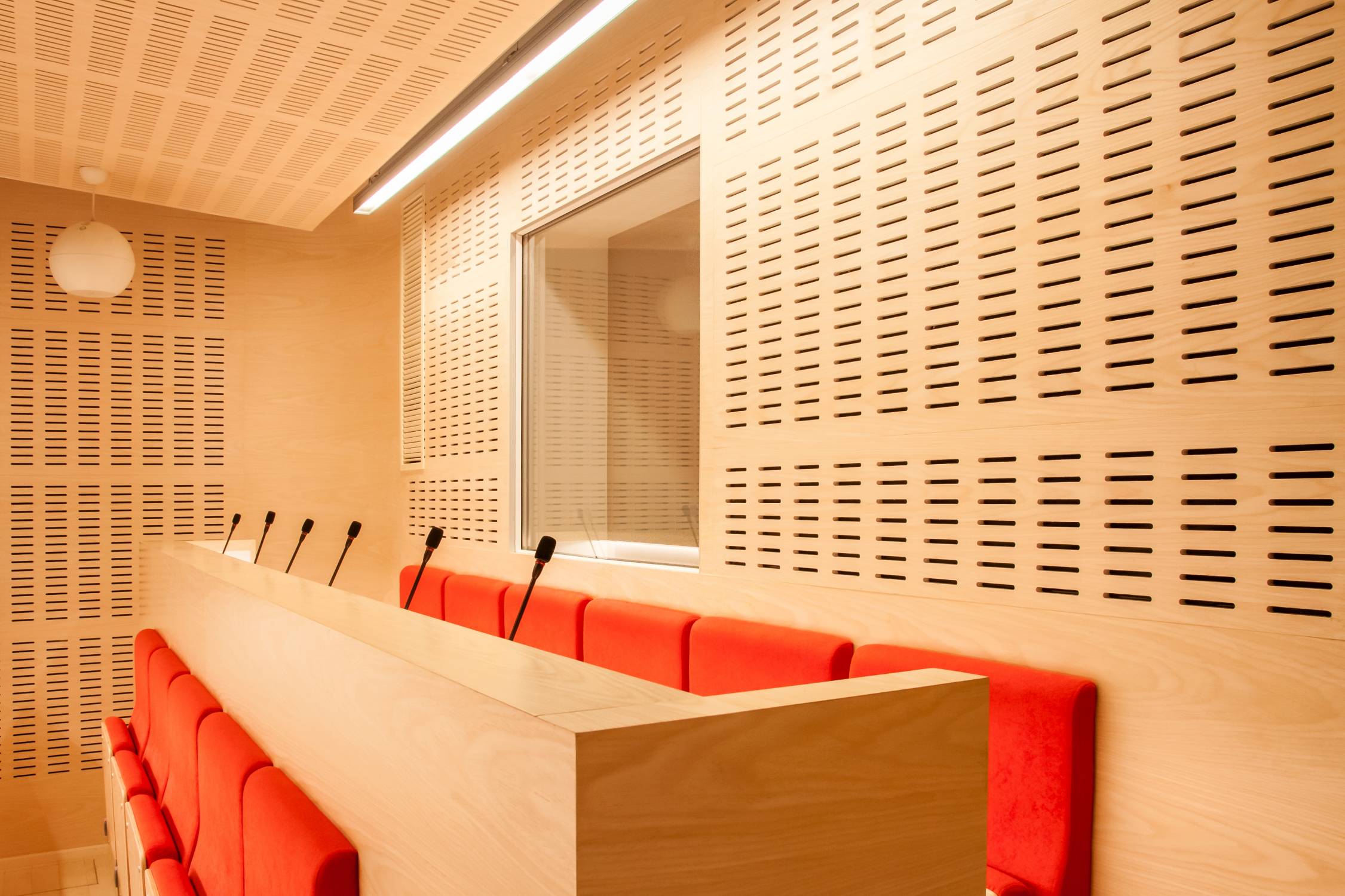

  • Perforated wood panels are suitable for use in auditoriums, offices, hotels, restaurants, sports halls and conference halls available in many styles and finishes.
  • Suitable for ceiling mounting.

Description

Absorb-R WoodTec Perforated Panels are designed to reduce noise levels projected by speakers, music and other sounds. These perforated wood panels decrease sound reverberation within a room/ building to prevent sound from disturbing adjoining rooms. The timber paneled systems are perforated allowing them to absorb and centralize sound waves.


Features and benefits:

  • Available in different hole diameters.
  • Painted or veneer finishes available.


Fire rating:

  • Class 2, class 1 and class 0 materials.


Standard:

  • To BS EN ISO 354.


For more details contact manufacturer

General information

Color

Other

Guidance for specification option:

Painted in RAL or NCS colours or in low pressure laminates.

Brown

Black

White

Finish

Painted

Veneered

Material

Wood

Melamine

Medium density fibreboard (MDF)

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

16 mm

Uniclass

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K40/135 Board-suspended ceiling system

K40/20 Board-suspended ceiling systems

K13/350 Fixing linings and panelling

K13/170 Acoustic panel lining

K13/350 Fixing linings and panelling

K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems

System performance

Acoustic performance.

Battens

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Acoustic insulation

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Panelling

-

Type

Individual panels.

Surface material

Painted wood.

Wood veneers.

Surface finish

Perforated.

Fasteners

Secret clip fixings direct to SFS.

Secret clip fixings direct to batten framework.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Sound absorption

0.75–0.91 aw.

Colour

Painted RAL.

Guidance for specification option:

Consult manufacturer and insert requirements.

Painted NCS.

Guidance for specification option:

Consult manufacturer and insert requirements.

Low pressure laminate.

Guidance for specification option:

Consult manufacturer and insert requirements.

Thickness

16 mm + 0.5 mm.

Panel Type

Absorb-R 8/8/3.

Absorb-R 16/16/6.

Absorb-R 16/16/8.

Absorb-R 32/32/6.

Absorb-R 32/32/8.

Show more

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

CHAS

CHAS

CHAS

Constructionline Gold

Constructionline Gold

Constructionline Gold Member

smas WORKSAFE

smas WORKSAFE

SMAS

 Acclaim Accreditation

Acclaim Accreditation

SSIP Acclaim

Literature

Absorb-R WoodTec

Absorb-R WoodTec
