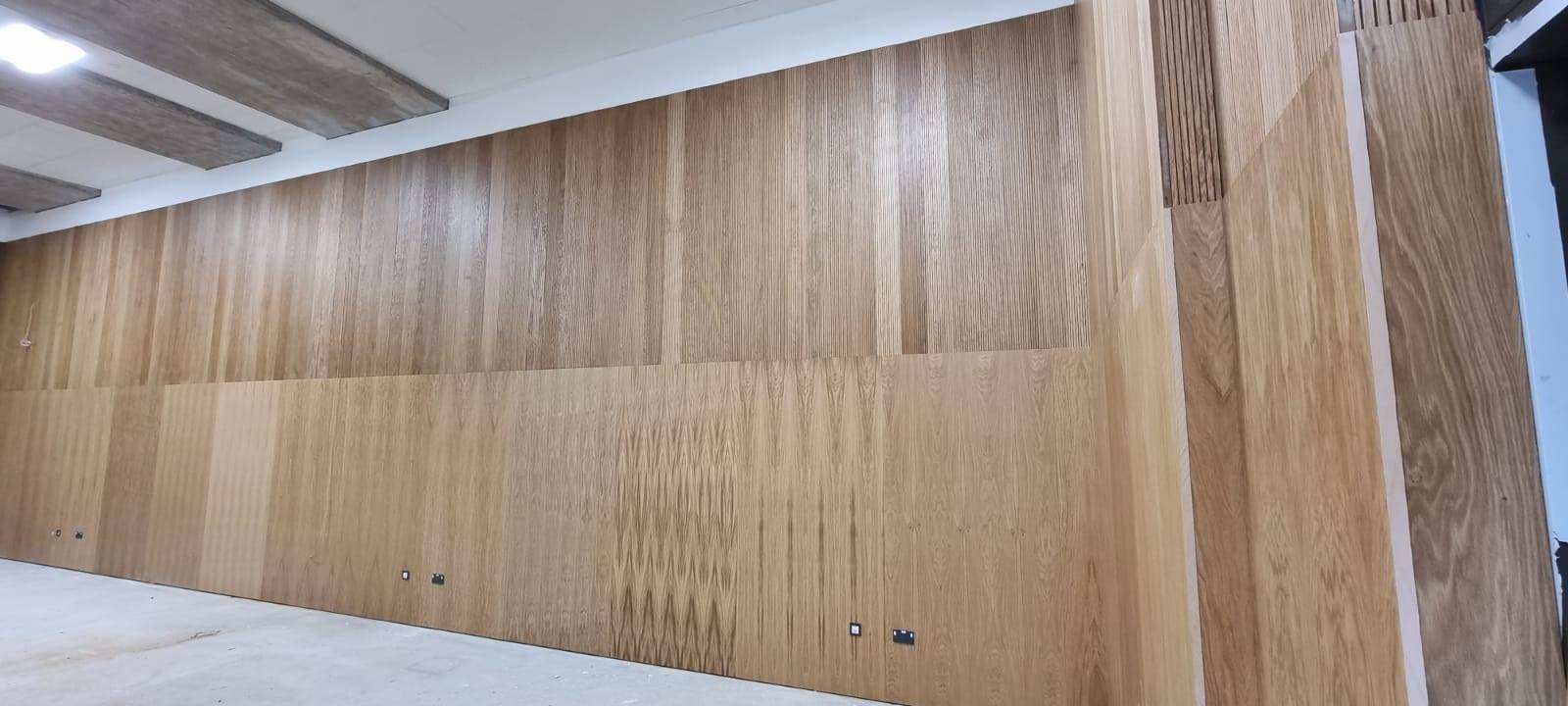

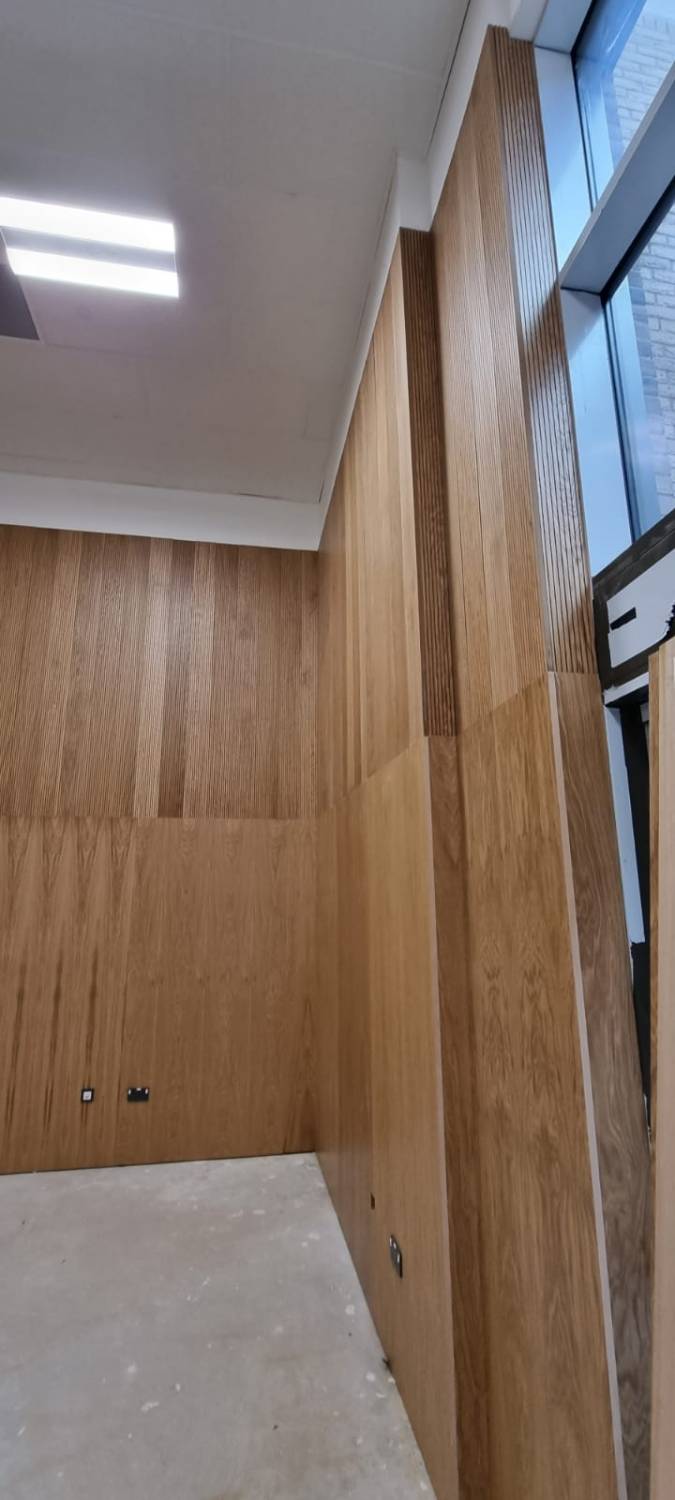

Absorb-R WoodTec Grooved Wall - Grooved Acoustic Panel

Verified by manufacturer 2 months ago

Soundis Third party certifications:
  • Acclaim Accreditation

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

Grooved acoustic wall panels, made up of a series of slats and grooves.

Jump to:
+44 (0)330 056 3195 Website

Application

  • Grooved wood panels are suitable for use in auditoriums, offices, hotels, restaurants, sports halls and conference halls available in many styles and finishes.
  • Suitable for wall mounting.

Description

Absorb-R WoodTec Panels are designed to reduce noise levels projected by speakers, music and other sounds. These grooved wood panels decrease sound reverberation within a room/ building to prevent sound from disturbing adjoining rooms. The timber paneled systems are grooved allowing them to absorb and centralize sound waves.


Features and benefits:

  • Painted or veneer finishes available.
  • Grooved.


Fire rating:

  • Class 2, class 1 and class 0 materials.


Standard:

  • To BS EN ISO 354.


For more details contact manufacturer

General information

Color

Other

Guidance for specification option:

Painted in RAL or NCS colours or in low pressure laminates.

Black

Brown

White

Finish

Painted

Veneered

Material

Wood

Melamine

Medium density fibreboard (MDF)

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

16 mm

Uniclass

Ss_25_25_75_05 Acoustic panel lining systemsPrimary

CAWS

K13/350 Fixing linings and panelling

K13/350 Fixing linings and panelling

K13/170 Acoustic panel lining

K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems

System performance

Acoustic performance.

Battens

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Acoustic insulation

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Panelling

-

Type

Individual panels.

Surface material

Painted wood.

Wood veneers.

Surface finish

Grooved.

Fasteners

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Sound absorption

0.75–0.91 aw.

Colour

Guidance for specification option:

Consult manufacturer and insert requirements. Available painted in RAL or NCS colours or in Low pressure laminates

Thickness

16 mm + 0.5 mm.

Panel Type

Absorb-R WoodTec 14/2.

Absorb-R WoodTec 13/3.

Absorb-R WoodTec 28/4.

Grooved acoustic panels.

Guidance for specification option:

Made up of a series of slats and grooves. Consult manufacturer for options.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

 Acclaim Accreditation

Acclaim Accreditation

SSIP Acclaim

smas WORKSAFE

smas WORKSAFE

SMAS

Constructionline Gold

Constructionline Gold

Constructionline Gold Member

CHAS

CHAS

CHAS

Literature

Absorb-R WoodTec

Absorb-R WoodTec

Case studies

Absorb-R WoodTec Timber Grooved Wall Paneling System at Herman Miller HQ in Melksham, Wiltshire

Absorb-R WoodTec Timber Grooved Wall Paneling System at Herman Miller HQ in Melksham, Wiltshire

Soundis Absorb-R Timber Grooved and Perforated Wall Panels at University of Birmingham

Soundis Absorb-R Timber Grooved and Perforated Wall Panels at University of Birmingham
