A2 Versapanel® Cement Bonded Particle Board
Verified by manufacturer 16 days ago
KIWA BDA
Certificate type
Cement bonded particle board.
Application

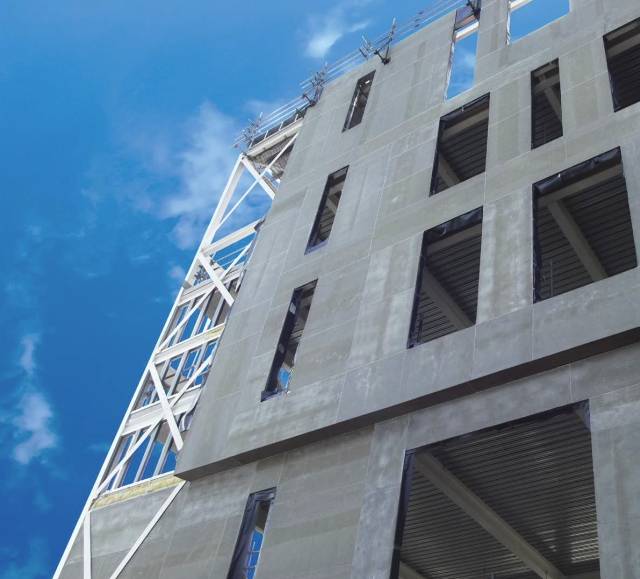

Intended for use as a steel framing system (SFS) sheathing board but can also be used for timber frames, modular frames or off-site. A range of systems can be applied over A2 Versapanel® to help acoustic, fire, impact and pull out performance such as:
- Approved insulated render systems.
- Terracotta cladding systems.
- High performance cladding systems.
- Traditional brick coursework.
A breather membrane is recommended for external applications. Consult manufacturer for details.
Description

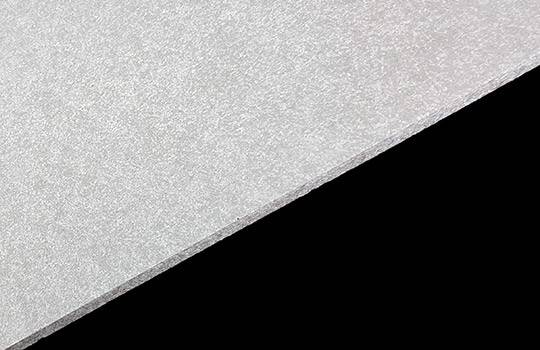

Cement bonded particle board comprising of wood particles and cement.
Features and benefits:
- Reaction to fire, A2-s1, d0 in accordance with BS EN 13501-1:2007 (+A1:2009).
- Contains no hazardous volatiles, is asbestos-free and any process dust is non-aggressive.
- High performance in the presence of moisture, in comparison to exterior gypsum boards.
- Cut edges require no sealing to prevent degradation and there is no time limit of exposure before covering with elements of the facade.
- Helps to improve the air tightness of facades when sealed at any joint.
- Provides a high mass robust exterior lining to optimize the acoustic performance of the building envelope.
- Can also be provided in a pre-fabricated kit to reduce site works.
- Weather resistant and will not degrade with permanent exposure.
- Tested for wind serviceability to CWCT standards.
- CE marked in accordance with BS EN 13986:2004 + A1:2015.
General information
Color | Grey |
Finish | Smooth |
Material | Wood Cement Particleboard |
Shape | Rectangle |
Length | 2400 mm 3000 mm Guidance for specification option: Maximum. |
Width | 1200 mm |
Height | 10 mm Guidance for specification option: Covered by the Kiwa BDA Agrement certification. 12 mm Guidance for specification option: Covered by the Kiwa BDA Agrement certification. 16 mm 18 mm |
Warranty description | 60 year Guidance for specification option: Minimum service life according to third party Agrement from Kiwa. |
Uniclass | |
CAWS | H20/10 Sheet cladding H20/150 Sheet cladding (attached to metal support systems) H20/155 Sheet cladding (attached to timber battens) K11/60 Board K11/825 Particleboard K11/845 Cement-bonded particleboard K11/885 Fire protection board |
Specification data - Cement-bonded particleboards
Classification data | |
Standards | Conformity assessed according to BS EN 13986:2004+A1:2015. |
Third-party certification | Kiwa BDA Agrément BAW-19-093-P-A-UK. |
Reaction to fire classification | A2-s1, d0 to BS EN 13501-1, 2007 (+A1:2009). |
Thickness | 10 mm. Guidance for specification option: Tolerance: ±0.7 mm. Weight: 44.93 kg ±10%. Covered by the Kiwa BDA Agrement certification. 12 mm. Guidance for specification option: Tolerance: ±1.0 mm. Weight: 53.91 kg ±10%. Covered by the Kiwa BDA Agrement certification. 16 mm. Guidance for specification option: Tolerance: ±1.2 mm. Weight: 71.88 kg ±10%. 18 mm. Guidance for specification option: Tolerance: ±1.2 mm. Weight: 80.87 kg ±10%. |
Edges | Square. |
Finish as delivered | |
Worked finish | Smooth. |
Colour | Light grey. |
Dimensions | 2400 x 1200 mm. Guidance for specification option: Tolerance: ±5 mm. |
Density | 1560 kg/m³ (±10%). |
Modulus of elasticity | ≥4000 N/mm². |
BendingStrength | ≥9 N/mm². |
AlkalinityConcentration | pH: 11–13. |
MoistureContent | 9% (±3%). |
ThicknessSwelling | ≤0.7%. Guidance for specification option: Average. Manufacturer guidance(Cyclic test). |
Thermal Conductivity: | ≤0.55 W/m²K. |
TensileStrength | ≥0.50 N/mm². Guidance for specification option: Normal climate. ≥0.30 N/mm². Guidance for specification option: Under cyclic test. Manufacturer guidance(Transverse). |
Water vapour transmission | 30 µ, Dry: 50 µ. Guidance for specification option: Wet. |
Sound insulation | Rw: 32 dB. |
Formaldehyde emissions | Class E1. Guidance for specification option: Product contains wood chip, which is a natural emitter of formaldehyde. Product does not have added formaldehyde. |
Sustainability data
Contains Red List materials | No Manufacturer guidanceProduct contains wood chip, which is a natural emitter of formaldehyde. Product does not have added formaldehyde. |
Country of material origin | Thailand |
Country of product manufacture | Thailand |
Material | Wood Cement Particleboard |
Recyclability | No current recycling methods available. |
Expected Life | 60 year |
Product certifications
KIWA BDA
BAW-19-093-P-A-UK Flat Sheet Building Board
Literature
Literature type
Versatape - Technical Data Sheet
EMF Fixings
Euroform A2 Versapanel Brochure Issue 9 2024
