90° Stair nosing / stair edging for no flooring - QR-SF125R
Compare variants

Application

  • Suitable for use on stairs with vinyl or laminate floorcoverings.
  • Suitable for installation in all categories of public and commercial buildings.

Description

Range of narrow gauge aluminium stair nosings.


Free site surveys are available; contact the manufacturer for details.


Features and benefits:

  • Manufactured in Britain.
  • Available in a range of profiles.
  • All over tread provides a slip resistant surface from the nose to the back edge, providing extra safety when ascending or descending stairs.
  • Satin etched aluminium riser surface is scratch resistant and inhibits the potential for 'glare', one of the requirements of the latest BS 8300:2:2018 and Building Regulation guidelines applicable to stairways in areas of Public Access.
  • No dirt traps, easy to clean.
  • Third party certification: ISO 9001. ISO 14001.
  • Independently tested by Grip Potential Ltd.
  • All products are available in a variety of stock lengths and packing; see manufacturer's literature for details.


Related products (to be specified separately):

  • Stair Edging Side Trims.
  • Landing and Stairway Tactiles.

General information

Shape

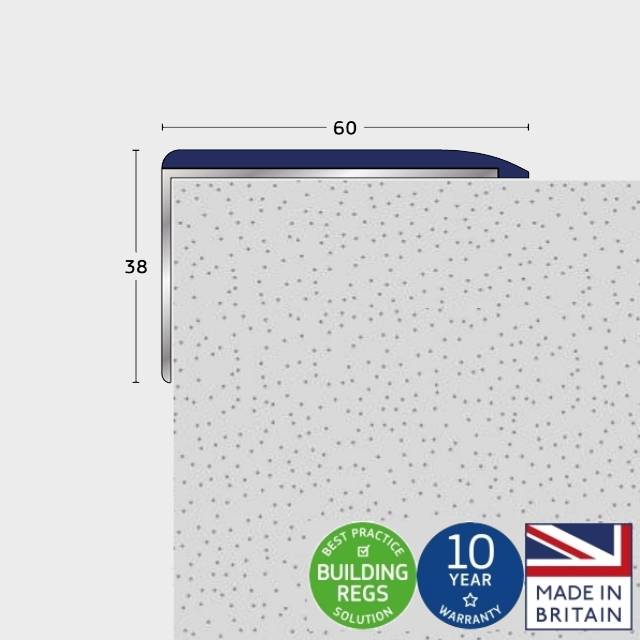

90° L shaped profile.

Other

Color

Black

Blue

Grey

Red

Green

Show more

Finish

As per manufacturer and includes satin etched.

Satin

Material

Aluminium

WarrantyDescription

Ten year

On project application.

Size

41 x 55 mm

35 x 60 mm

40 x 60 mm

55 x 60 mm

Uniclass

Pr_35_90_31_74 Rigid stair nosingsPrimary

CAWS

L30/30 Proprietary stairs

L30/310 Proprietary stairs

L30/590 Applied stair nosings

M50/75 Stair nosings and trims

M50/750 Stair nosings and trims

M51/550 Stair nosings and trims

Product range

Stair nosing and stair edging
Q-Range standard stair nosings / stair edging

Specification data - Rigid stair nosings Enhanced data

Profile

Bullnose.

Base section

-

Material

Anodized aluminium.

Finish

Satin etched.

Size

-

Rise x going

41 x 55 mm.

Gauge

0 mm.

Tread

Standard.

Light reflectance value (LRV)/ Colour

6 Black.

6 Claret.

10 Rustic.

10 Peat.

11 Dark Blue.

Show more

Fixing

Mechanical (screw) and adhesive fix, secret fix, without pips.

Mechanical (screw) and adhesive fix, with pips.

Q-Fix (adhesive only).

Ten-year project warranty available, consult manufacturer for details.

Third-party certification

Groundworks Green Business Certificate.

Slip resistance value

To BS 7976-2, 60 dry, 36 wet.

All tread options have a minimum PTV of 36+ in a wet test and 60+ in a dry test; this is considered ‘Low Slip Potential’.

Environmental information

Country of product manufacture

United Kingdom

Recyclability

100%

Digital objects

Platform Compatible Version Certified to
IFC

IFC2X3

4

1.3
Revit

Revit 2016

5

2.0
ARCHICAD
-

1.0

1.0

Vectorworks
-

1.0

1.0

AECOsim
-

1.0

1.0

Download now from NBS National BIM Library

Literature

Flooring Accessories & Access Solutions Specification Guide 2020

Flooring Accessories & Access Solutions Specification Guide 2020

Stair Nosings (Stair Edgings) and Flooring Trims Colours (with LRV)

Stair Nosings (Stair Edgings) and Flooring Trims Colours (with LRV)

Q-Range Aluminium Stair Nosings - Stair Edging (0mm to 8mm Floorcovering) Product Data Sheet

Q-Range Aluminium Stair Nosings - Stair Edging (0mm to 8mm Floorcovering) Product Data Sheet
