70 cm Venting Hobs with Integrated Extraction Unit
Verified by manufacturer 2 months ago

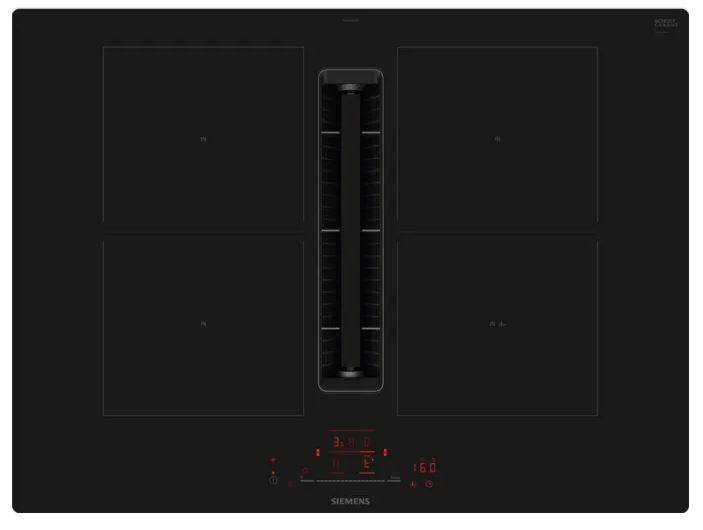

Induction hob with integrated ventilation system.
Application
For domestic applications.
Description
Induction hob with integrated ventilation system surface mounted without a frame.
Features and benefits:
- combiZone – connect two induction zones together for large cookware.
- touchSlider: control the power level with a touch of a finger.
- The inductionAir Plus guarantees minimal noise without compromising on suction power.
- Easy cleaning – minimal cleaning effort for the built-in extractor.
- Home Connect: integrate the hob into a intelligent kitchen.
Models:
- ED711HQ26E: 70 cm inductionAir venting hob, built-in dimension 60 cm, new touch slider control, 2 x combiZone and ventilation, home connect, favourite button, frying Sensor Pro, auto-on fan, 7.4 kW, frameless. Includes four cleanAir Plus filters, a telescopic slider, and an adhesive seal for un-ducted installation.
General information
Color | Black |
Material | Ceramic Glass |
Shape | Rectangle |
Length | 522 mm |
Width | 710 mm |
Height | 223 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N12/330 Cooking equipment N12/330 Cooking equipment N11/360 Appliances N11/40 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Ceramic hob with two 3.7 kW combi zones.Guidance for specification option: Two combi zones: use bigger cookware by connecting two classic cooking zones into one large zone.
|
Dimensions | |
Width (maximum) | 710 mm. |
Depth (maximum) | 522 mm. |
Rating | 7.4 kW. |
Electrical supply | 220–240 V.380–415 V. |
Material and finish | Ceramic black. |
Features | Automatic safety cut-out. |
Frequency | 50-60 Hz. |
Cable length | 110 cm. Manufacturer guidanceLength electrical supply cord. |
Output | Maximum output air extraction: 500 m³/h. |
Noise | 69 dB( A) re 1 pW. Manufacturer guidanceNoise level. |
Energy rating | B. |
Mounting | Worktop mounted. |
Control | Multitouch+. |
Heating element | Power of second heating element: 3.6 kW. |
Integral accessories | Slider for unducted recirculation, clean air plus odor filter. |
Accessories | Not required. HZ9VRPD1: Plinth diffusor. HZ9VRCR1: Clean air plus odor filter (replacement). HZ9VRCR0: cleanAir recirculation replenishment fil. HZ9VEDU0: Acoustics filter. |
Sustainability data
Material | Ceramic Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
iQ500, Induction hob with integrated ventilation system, 70 cm, surface mount without frame ED711HQ26E
