90 cm Flex Induction Hob
Verified by manufacturer 2 months ago
Flex induction plus hob with TFT touch display and home connect for maximum flexibility.
Application
For domestic applications.
Description

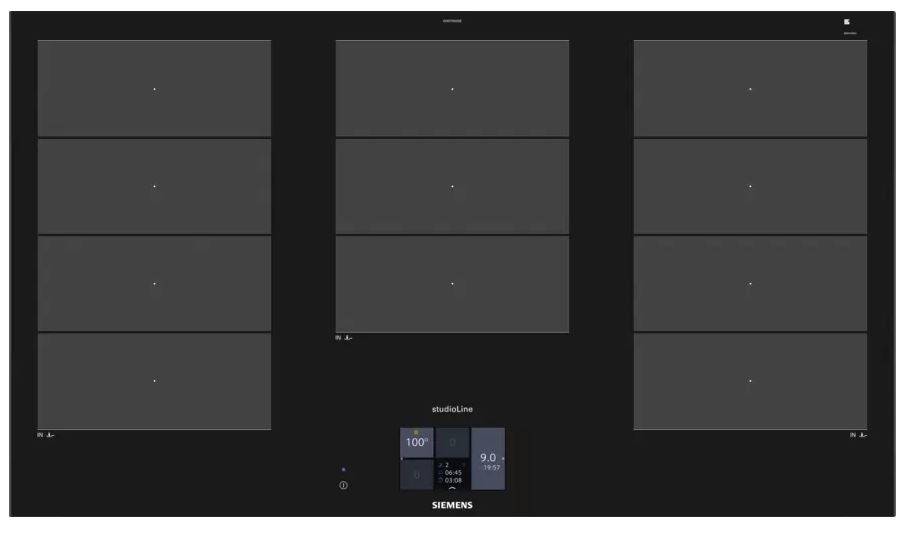

Induction hob, 90 cm in black.
Features and benefits:
- Shows position, size and form of the cookware directly in the screen and allows intuitive control of the cooktop - Colour TFT-Touch Display Plus.
- Sleek light bars provide intuitive visual feedback on where heat is applied and the selected settings - activeLight Plus.
- Home Connect: integrate the hob into a intelligent kitchen.
- Precisely maintaining the chosen temperature to avoid overboiling– cookingSensor Plus.
- powerMove Pro: Change the power level of the pot or pan in five steps, using only movement of the cookware.
Model:
- EX977KXX5E: 90 cm flex induction, TFT control, three Flex zones, frying sensor plus, cooking sensor plus, cookConnect, side trims, 11.1 kW.
General information
Color | Black |
Material | Ceramic Steel Glass |
Shape | Rectangle |
Length | 520 mm |
Width | 912 mm |
Height | 61 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N12/330 Cooking equipment N12/330 Cooking equipment N11/360 Appliances N11/40 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Ceramic hob with one continuous cooking zone.Guidance for specification option:
|
Dimensions | |
Width (maximum) | 912 mm. |
Depth (maximum) | 520 mm. |
Rating | 11.1 kW. |
Electrical supply | 220–240 V. |
Material and finish | Ceramic black. |
Features | Automatic safety cut-out. |
Frequency | 50-60 Hz. |
Cable length | 110 cm. Manufacturer guidanceLength electrical supply cord. |
Control | Full TFT touch display. |
Heating element | Power of second heating element: 3.3 kW. |
Integral accessories | Adjustment strip 750–780 mm, wireless temperature sensor for cooktop. |
Accessories | Not required. HZ9TY010: Teppan Yaki. HZ9SE060: Six pieces set. HZ9SE040: Four pieces set. HZ9SE030: Set of two pots and one pan. |
Sustainability data
Material | Ceramic Steel Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
iQ700, Induction hob, 90 cm, Black EX977KXX5E
