60 cm Induction Hob
Verified by manufacturer 2 months ago
Flex induction plus hob with touch and slide control and home connect for maximum flexibility.
Application
For domestic applications.
Description

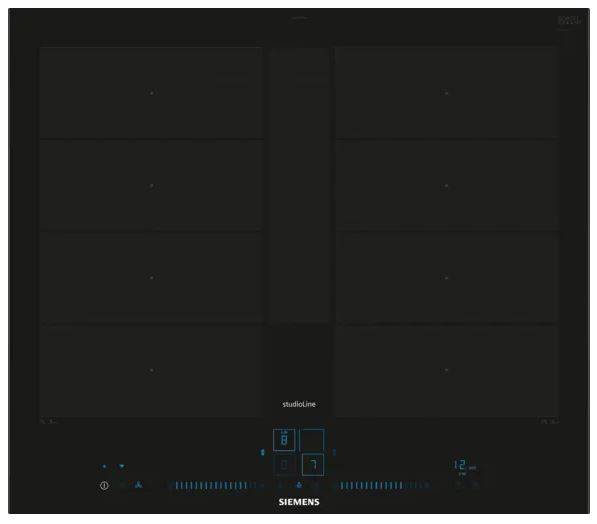

Induction hob, 60 cm in black.
Features and benefits:
- flexInduction Plus – smart, extendable cooking zone adapts to the cookware.
- Blue user interface – touch and slide control.
- Home Connect: integrate the hob into a intelligent kitchen.
- fryingSensor Plus – No more burning or scorching meals.
- powerMove Plus enables intuitive control thanks to three heating zones with different temperatures, just by moving the pan.
Model:
- EX677NYV6E: 60 cm flex induction, blue dual light slider control, two flex plus, frying sensor, cookConnect, Home Connect, studioLine black steel trim, 7.4 kW, improved flex features (auto join/split and transfer setting), top frame without front bevel.
General information
Color | Black |
Material | Ceramic Steel Glass |
Shape | Rectangle |
Length | 520 mm |
Width | 602 mm |
Height | 51 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N12/330 Cooking equipment N12/330 Cooking equipment N11/360 Appliances N11/40 Appliances |
Specification data - Built-in electric hobs
Hob arrangement | Ceramic hob with two extended flex induction zones.Guidance for specification option: Two extended flexInduction zones: use cookware of any shape or size anywhere within the 40 cm long zone or even place it laterally.
|
Dimensions | |
Width (maximum) | 602 mm. |
Depth (maximum) | 520 mm. |
Rating | 7.4 kW. |
Electrical supply | 220–240 V. |
Material and finish | Ceramic black. |
Features | Automatic safety cut-out. |
Frequency | 50-60 Hz. |
Cable length | 110 cm. Manufacturer guidanceLength electrical supply cord. |
Control | Dual light slider blue. |
Heating element | Power of second heating element: 3.3 kW. |
Accessories | Not required. HZ9TY010: Teppan Yaki. HZ9SE060: Six pieces set. HZ9SE040: Four pieces set. HZ9SE030: Set of two pots and one pan. |
Sustainability data
Material | Ceramic Steel Glass |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
iQ700, Induction hob, 60 cm, Black EX677NYV6E
