NBS Source

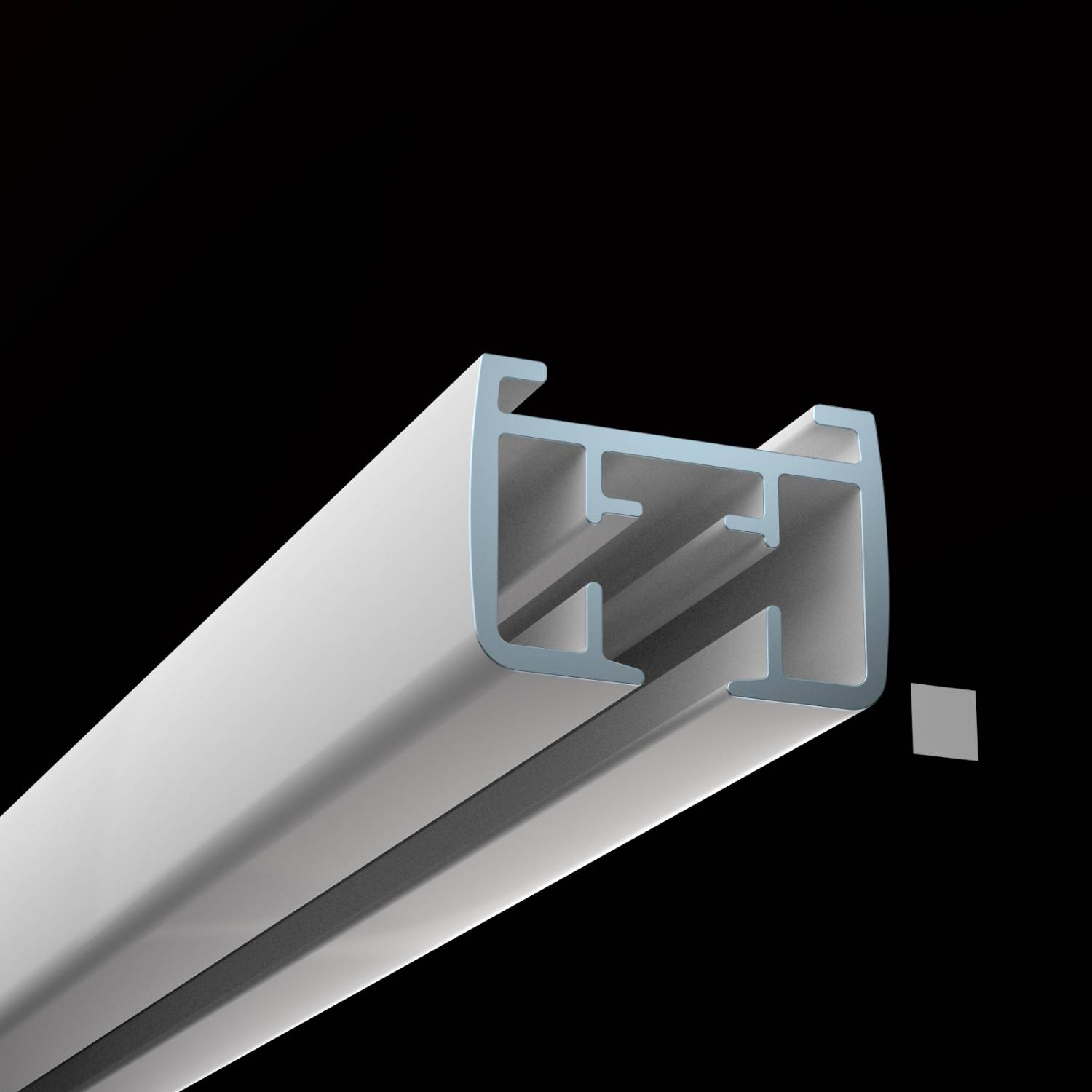

6200 Hand Drawn Curtain Track

Application

Suitable for practically all curtain fabrics ranging from standard sheers to heavy theatre curtains. It can be mounted invisibly on a ceiling using fixing clamps and is also available with various wall supports.

Description

Hand drawn curtain track for light, medium- and heavy-weight curtains.


Features and benefits:

  • The ideal track for light, medium-heavy or heavy curtains.
  • Easy to bend and exceptional quality.
  • Can be forward or reverse bent in different radii
  • Compatible with the Goelst Flow System for regularly pleated curtains.
  • Silent and smooth running, also round bends.

General information

Color

White

RAL 9010, white.

Black

RAL 9005, black.

Silver

Natural metallic.

Finish

Powder coated

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

31 mm

Height

22 mm

WarrantyDescription

Five year

Warranty for five years against manufacturing defects.

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

Specification data - Window curtain supports Enhanced data

Support

Curtain tracks.

Overall length

Bespoke, manufacturered to size according to project requirements.

Maximum length

Material

Aluminium.

Finish

Anodized.

Powder-coated.

Colour

Natural metallic.

RAL 9010, white.

RAL 9005, black.

Operation

24 V d.c. motorized.

Integral accessories

Motor unit.

Power supply.

Pulleys.

Pilot runner with overlap.

Toothed belt.

Gliders.

Fixing clamps.

Connecting bridge.

Railverbinder.

Accessories

Consult literature for details and insert requirements.

-

Weight

567 g/m.

Ceiling fixed

Ref 6050.

Ceiling fixing clamp.

Ref 6055-1000.

Ceiling fixing plate.

Ref 6055-2000.

Profile insert for recessed fixing.

Wall fixed

Ref 6051.

Wall support (4 cm projection).

Ref 6057.

Adaptable wall bracket (7–15 cm projection).

Environmental information

Country of product manufacture

United Kingdom

The UK and The Netherlands.

Recyclability

100%

Goelst aluminium profiles are 100% recyclable, synthetic components and raw materials are recycled either internally or by specialist converter.

Recycled content

75 %

Goelst curtain track profiles are composed of 75% recycled aluminium.
