6 W EN54-24, ABS, Cabinet Loudspeaker - 582426 - Cabinet Loudspeaker
Verified by manufacturer 2 months ago
100 V
100 V

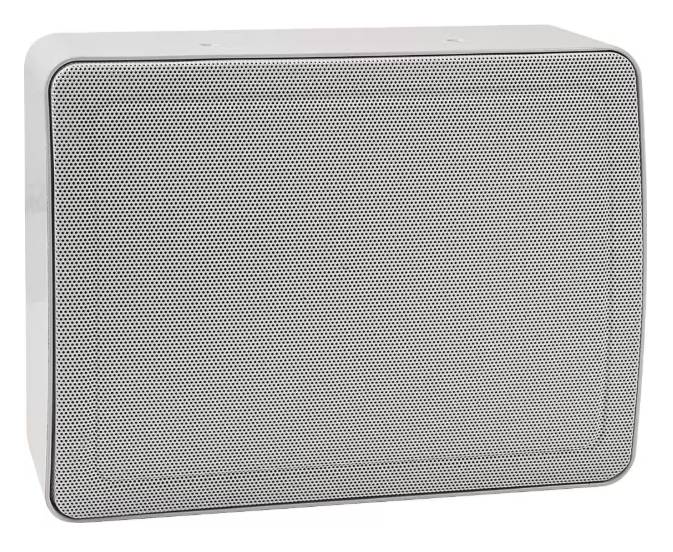

6 W cabinet loudspeaker, EN54-24.
Application
Suitable for sound distribution in various types of commercial buildings suitable for locations such as locations such as hotels, conference rooms, cinemas, factories and exhibitions spaces.
Description
High-performance 6 W voice alarm cabinet loudspeaker that provides a broad frequency response range.
Features and benefits:
- Provides a broad frequency response range.
- Low distortion and high sound pressure level for accurate and intelligible broadcast of evacuation messages and high quality sound reproduction.
- Suitable for sound distribution in various types of commercial buildings.
- Its low-profile white colour design blends easily with most interiors in locations such as hotel, conference rooms, cinemas, factories and exhibitions.
- Complies with requirements of BS 5859 Part 8, and is certified in accordance with EN 54 Part 24-24.
General information
Color | White |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Rectangle |
Length | 88 mm |
Width | 260 mm |
Height | 200 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582426 |
Specification data - Cabinet voice alarm loudspeakers
Classification data | |
Standards | To BS EN 54-24. |
Frequency response | 150 Hz to 16 KHz. |
Rated power | 6 W. |
Rated voltage | 100 V. |
Rated impedance | 1.67 kΩ. 3.3 kΩ. 6.67 kΩ. |
Sound power level (minimum) | 92 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 99.5 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Transformer tappings | 1.5 W. 3 W. 6 W. |
Enclosure | |
Material | ABS. |
Colour | White. |
Environmental requirements | Ambient temperature -20 to +80°C. Air humidity <95%. |
Dimensions | 260 x 200 x 88 mm. Manufacturer guidanceWidth x height x depth. |
Cable connections | |
Short circuit protection | Thermal fuse. |
Weight | 1.63 kg. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
Literature

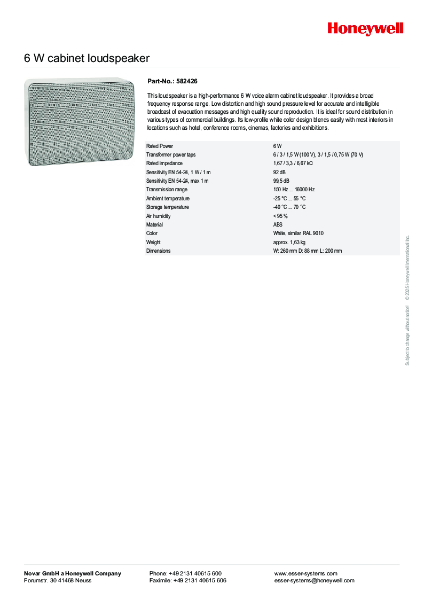

582426 6watt cabinet loudspeaker
