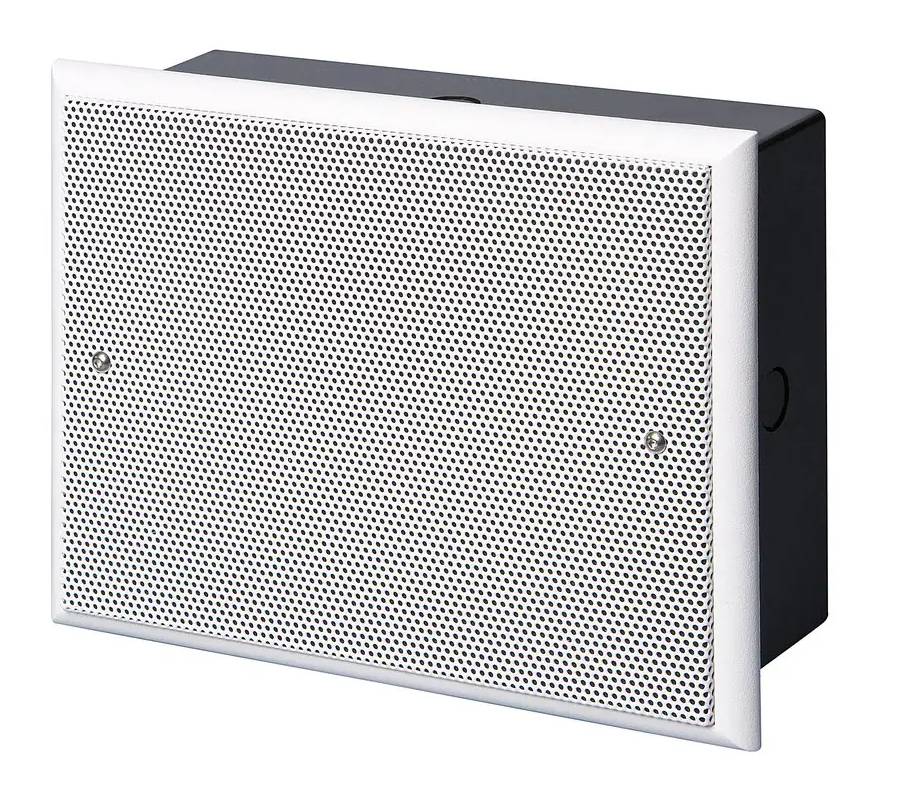

6 W 6.5" Flush-Mounted Wall Loudspeaker - 582425 - Cabinet Loudspeaker

Verified by manufacturer 3 days ago

Honeywell Voice Alarm

6 W, 6.5" flush-mounted wall loudspeaker EN 54.

Jump to:
+44 (0) 203 409 1779 Website

Application

Suitable for wall mounting.

Description

The white WU 06-165/T EN 54-24 was specifically developed for flush-mount installations. The stable, rectangular in-wall loudspeaker, with its durable sheet steel perforated grille cover, also stands out due to its discreet softline appearance.

Features and benefits:

  • Maximum output of 6 W, and can be adjusted to 3 W or 1.5 W, if necessary.
  • Balanced sound dynamics are provided by a high-grade 165 mm broadband loudspeaker chassis.
  • Protected against dust and other forms of environmental impact by way of a synthetic shock-resistant ABS-flush mount enclosure in black.
  • Features an integrated ceramic terminal block and a thermal fuse.
  • Chassis is impregnated against moisture.
  • Flush-mounted.
  • White in colour, similar to RAL 9010.

General information

Color

White

Finish

Powder-coated

Material

Acrylonitrile butadiene styrene (ABS)

Steel

Shape

Rectangle

Length

88 mm

Width

255 mm

Height

195 mm

Uniclass

Pr_75_75_94_11 Cabinet voice alarm loudspeakersPrimary

CAWS

V90/430 Electrical accessories

SKU Code

582425

Specification data - Cabinet voice alarm loudspeakers

Classification data

Standards

To BS EN 54-24.

Frequency response

93 Hz to 23.5 kHz.

Rated power

6 W.

Dispersion

180° horizontal 180° vertical @ 1 kHz.

Sound power level (minimum)

91.6 dB @ 1 m.

Guidance for specification option:

Sensitivity EN 54-24, max 1 m: 99.1 dB.

Manufacturer guidance

Sensitivity EN 54-24, 1 W / 1 m.

Transformer tappings

1.5 W.
3 W.
6 W.

Enclosure

-

Material

ABS.

Colour

White.

Environmental requirements

Ambient temperature -20 to +80°C.

Protective grille

Perforated steel.

Dimensions

225 x 195 x 88 mm.

Manufacturer guidance

Width x height x depth.

Cable connections

-

Type

Ceramic terminal block.

Short circuit protection

Thermal fuse.

Weight

1.3 kg.

Sustainability data

Material

Acrylonitrile butadiene styrene (ABS)
Steel
