6 W 4" EN54-24 Cabinet Loudspeaker - 582470 - Cabinet Loudspeaker
Verified by manufacturer 3 days ago
Intertek
Certificate type

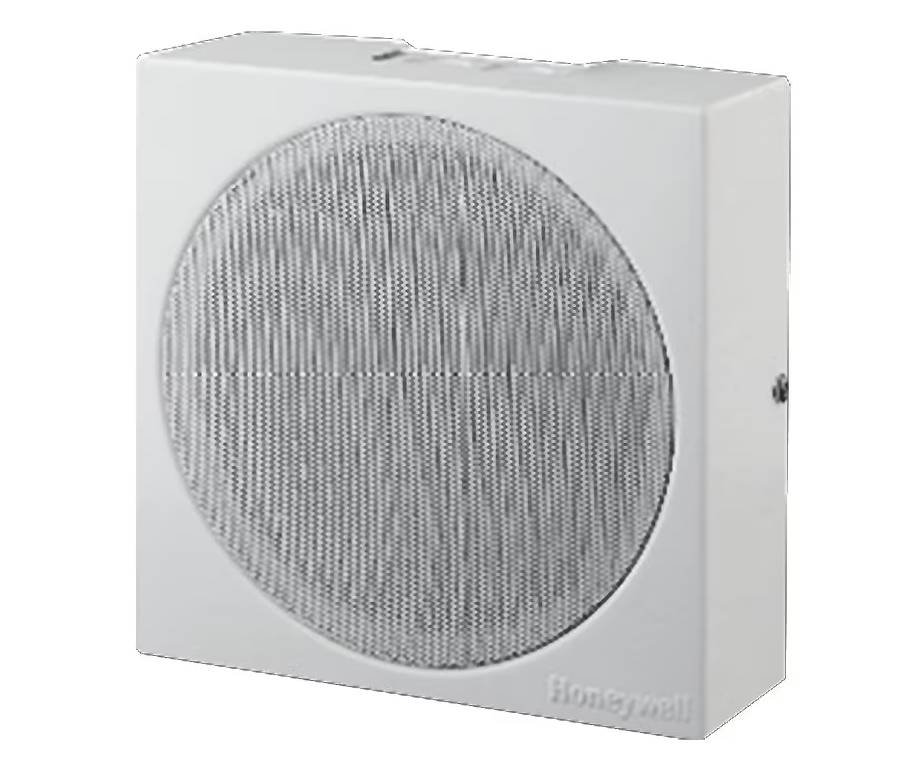

6 W, 4" metal cabinet loudspeaker EN 54-24.
Application
Suitable for public and commercial buildings.
Description
The cabinet loudspeaker offers a broad frequency range and a high sound pressure level for an accurate and intelligible transmission of the evacuation messages, including an excellent sound reproduction. It is suitable for an even dispersion of sound in public and commercial buildings.
Features and benefits:
- Intelligible transmission of the evacuation messages.
- Excellent sound reproduction.
- Its low-profile, white colour design blends easily with most interiors in locations such as hotels, schools, conference rooms, cinemas, amusement parks, factories, and trade fair halls.
- The driver unit is impregnated against moisture.
- Complies with the BS 5859-8 standards, and is certified according to the EN 54-24 standard.
General information
Color | White |
Finish | Powder-coated |
Material | Metal |
Shape | Square |
Length | 170 mm |
Width | 170 mm |
Height | 63 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582470 |
Specification data - Cabinet voice alarm loudspeakers
Classification data | |
Standards | To BS EN 54-24. |
Frequency response | 300 Hz to 15 kHz. |
Rated power | 6 W. |
Rated voltage | 100 V. 70 V. |
Rated impedance | 1.7 kΩ. 3.3 kΩ. 6.7 kΩ. 14 kΩ. |
Dispersion | 175° horizontal 174° vertical @ 1 kHz. |
Sound power level (minimum) | 91 dB @ 1W/ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 99 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Transformer tappings | 0.75 W. 1.5 W. 3 W. 6 W. |
Enclosure | |
Material | Powder-coated metal. |
Colour | White. |
Environmental requirements | Ambient temperature -25 to +55°C. Storage temperature -40 to +70°C. Air humidity <95%. |
Dimensions | 170 x 170 x 63 mm. Manufacturer guidanceLength x width x depth. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Knock-outs | Two no. 20 mm, top and bottom entry. |
Weight | 1.56 kg. |
Sustainability data
Material | Metal |
Product certifications
Intertek
582470 EN54-24 Certificate of Conformity
Literature
Literature type

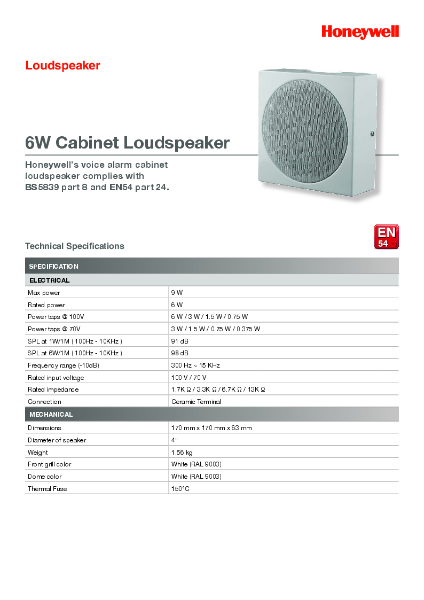

582470 6 watt cabinet loudspeaker EN54-24

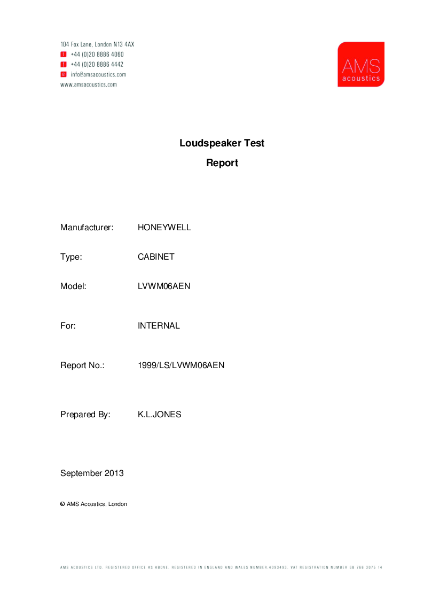

582470 AMS Acoustics Report
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
