10 W 6.5" Round Wall or Ceiling Surface Mount Loudspeaker EN54-24 - 582423 - Ceiling Loudspeaker
Verified by manufacturer 3 days ago
10 W, 6.5" round wall or ceiling surface-mount loudspeaker, EN54-24
Application
Suitable for surface mounting.
Description

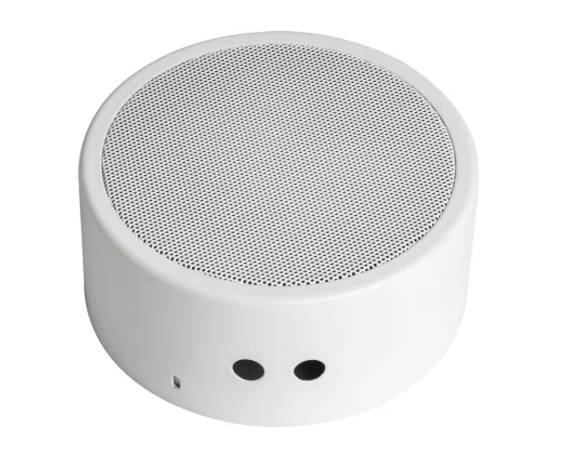

The 582423 (DL-A 10-165/T-EN 54) is a round cabinet voice alarm loudspeaker made of white powder-coated metal, with a high degree of efficiency and a high-quality 200 mm broadband loudspeaker chassis. It can be installed on ceiling and walls, where recessed mounting is not possible.
Features and benefits:
- Flat and elegant design for unobtrusive installations provided with a metal back plate.
- Equipped for highest security requirements with a ceramic terminal and a thermal fuse.
- The chassis is protected against moisture by impregnation.
- Offers a powerful sound besides the high safety standard.
- Wall or ceiling surface mounted.
- White in colour, similar to RAL 9010.
- Complies with requirements of BS 5859 Part 8, and is certified in accordance with EN 54 Part 24-24.
General information
Color | White |
Finish | Powder-coated |
Material | Metal |
Shape | Circle |
Length | 170 mm |
Width | 170 mm |
Height | 75 mm |
Uniclass | |
CAWS | V90/430 Electrical accessories |
SKU Code | 582423 |
Specification data - Cabinet voice alarm loudspeakers
Classification data | |
Standards | To BS EN 54-24. |
Loudspeaker type | A. |
Frequency response | 290 Hz to 23.4 kHz. |
Rated power | 10 W. |
Rated voltage | 100 V. |
Dispersion | 80° @ 1 kHz. |
Sound power level (minimum) | 90 dB @ 1 m. Guidance for specification option: Sensitivity EN 54-24, max 1 m: 100.7 dB. Manufacturer guidanceSensitivity EN 54-24, 1 W / 1 m. |
Transformer tappings | 1.25 W. 2.5 W. 5 W. 10 W. |
Enclosure | |
Material | Powder-coated metal. |
Colour | White. |
Environmental requirements | Ambient temperature -20 to +80°C. |
Dimensions | 170 mm diameter x 75 mm depth. |
Cable connections | |
Type | Ceramic terminal block. |
Short circuit protection | Thermal fuse. |
Weight | 1.3 kg. |
Sustainability data
Material | Metal |
Literature
Literature type
582423 - 10". 6.5W Round cabinet Loudspeaker
VARIODYN ONE - EN54 Certified Voice Alarm Systems Brochure
