5100 Shower Curtain Track

Verified by manufacturer 6 months ago

Goelst UK Ltd

Hand-drawn shower curtain track.

Jump to:
+44 (0)1423 873002 Website

Application

  • Suitable for all shower curtains.
  • With suspension hangers, this track is suitable for hospitals and care institutions.

Description

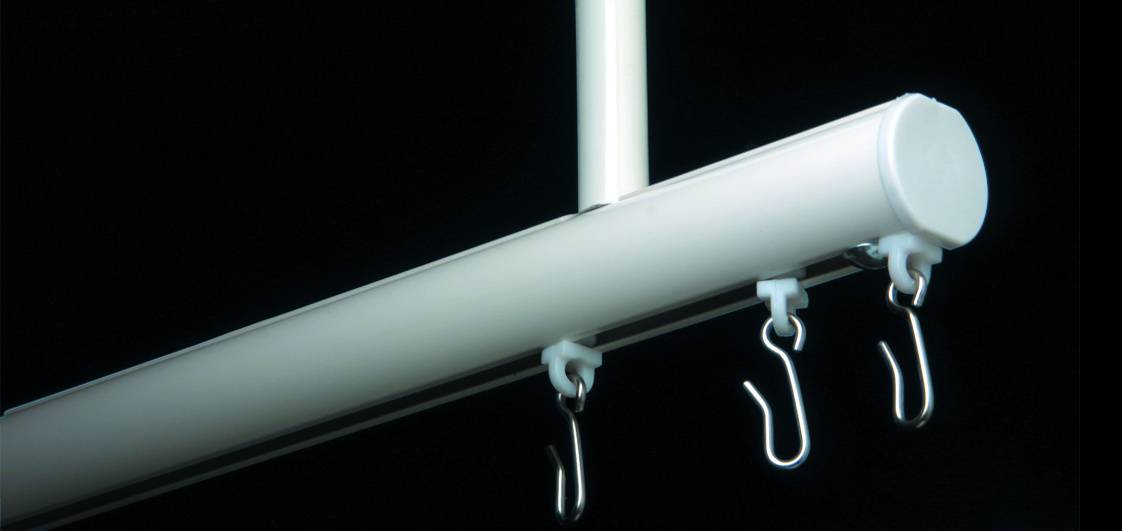

Hand-drawn, aluminium, shower curtain track with the appearance of a curtain pole.


Features and benefits:

  • Available with or without suspension hangers.
  • Without suspension hangers, this track can be mounted between two walls across a straight length of up to 250 cm.
  • Can be forward or reverse bent in different radii.
  • Wall or ceiling mounted.
  • Accessories available in matching colours.
  • Coated aluminium.

General information

Color

Silver

White

Black

Finish

Anodized

Powder coated

Material

Aluminium

Shape

Circle

Length

Bespoke

Width

26 mm

Height

28 mm

Warranty description

Five year

Guidance for specification option:

Warranty for five years against manufacturing defects.

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

N13/40 Shower units

N13/375 Shower units

Specification data - Window curtain supports

Support

Curtain tracks.

Overall length

-

Manufacturer guidance

Bespoke, manufacturered to size according to project requirements.

Material

Aluminium.

Finish

Anodized.

Powder-coated.

Colour

Self-coloured.

RAL 9010, white.

RAL 9005, black.

Operation

Manual.

Integral accessories

Gliders.

End stops.

Stainless steel hook.

Spring hook.

Flexible anti-dust strip.

Weight

522 g/m.

Sustainability data

Country of product manufacture

United Kingdom

Guidance for specification option:

The UK and The Netherlands.

Recyclability

100%

Guidance for specification option:

Goelst aluminium profiles are 100% recyclable, synthetic components and raw materials are recycled either internally or by specialist converter.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Guidance for specification option:

Goelst curtain track profiles are composed of 75% recycled aluminium.

Literature

G-Rail privacy rail systems - 5100

G-Rail privacy rail systems - 5100
