5100 Privacy Cubicle Curtain Track

Verified by manufacturer 5 months ago

Goelst UK Ltd

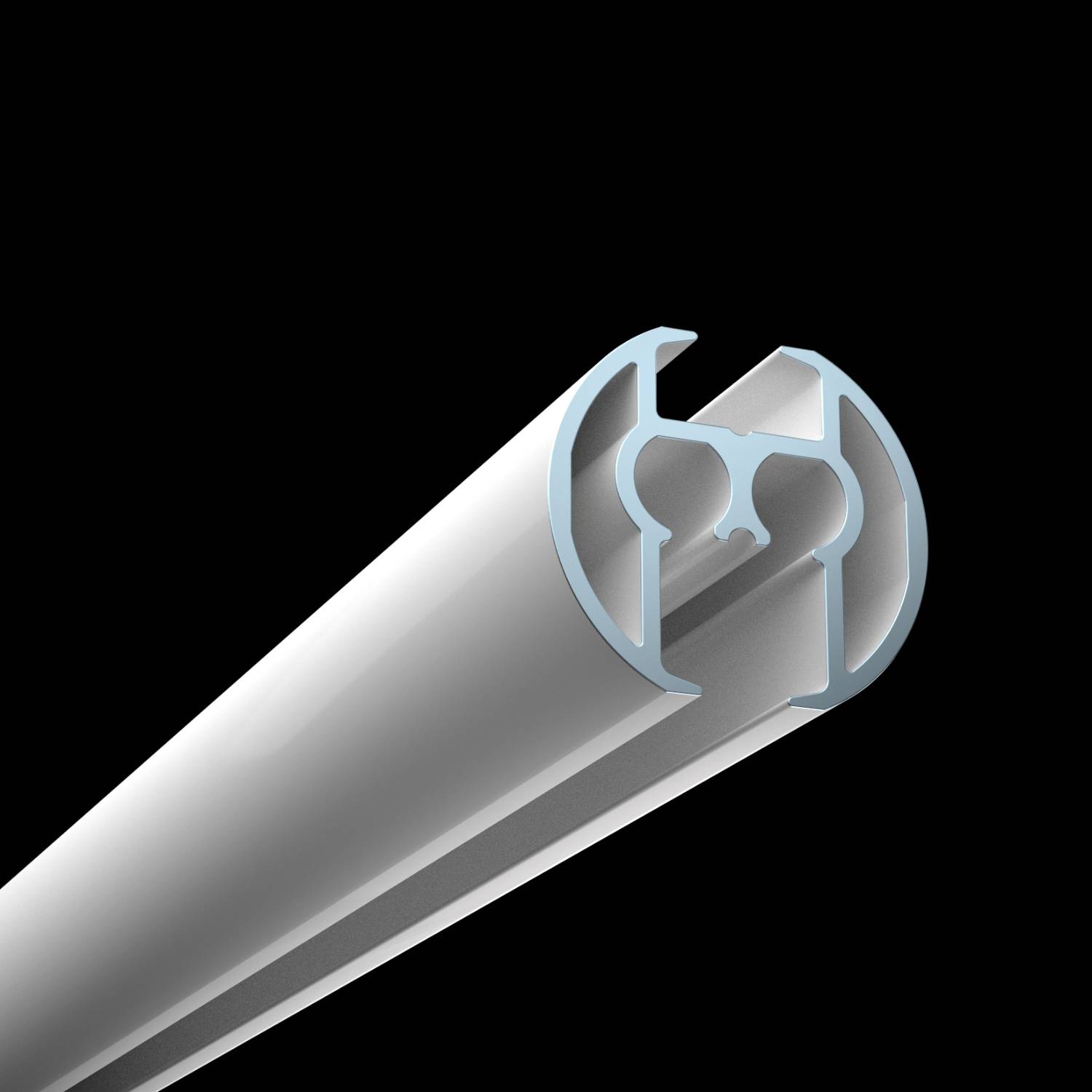

Aluminium cubicle curtain track for privacy.

Jump to:
+44 (0)1423 873002 Website

Application

  • Suitable for healthcare applications.
  • Suitable for mounting cubicle curtains in accordance with NEN1010.
  • Suitable for incorporating the Load Release System.

Description

The Goelst 5100 cubicle curtain track can help in dividing a hospital ward into multiple, temporarily separated areas to provide privacy for patients and caregivers.


Features and benefits:

  • Suitable for all partitioning curtains.
  • Can be forward or reverse bent in different radii.
  • Dust strip prevents the accumulation of dirt and simplifies cleaning.
  • Silent and smooth running, also round bends.
  • Length: 5 m, 6 m and 7 m.
  • Durable, comfortable glide, safe, room-divider that can be used with Goelst LRS system providing reduced ligature risk.

General information

Color

Silver

White

Finish

Anodized

Powder-coated

Material

Aluminium

Shape

Circle

Length

Bespoke

Width

28 mm

Height

26 mm

Warranty description

Five year

Guidance for specification option:

Warranty for five years against manufacturing defects.

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

Specification data - Window curtain supports

Classification data

Support

Curtain rails.

Overall length

5000 mm.
6000 mm.
7000 mm.

Material

Aluminium.

Guidance for specification option:

 EN AW-6060 T66.

Finish

Anodized.
Powder coated.

Colour

Self-coloured.
RAL 9010, white.

Manufacturer guidance

Other RAL colours and special coatings on request.

Operation

Manual.

Accessories

Not required.
Ref 5153: End cap.

Guidance for specification option:

White or grey. Insert requirements.

Ref 5153-20: End cap hollow.

Guidance for specification option:

White or grey. Insert requirements.

Ref 5152-20: Connecting bridge - natural.

Guidance for specification option:

White or natural. Insert requirements.

Ref 4159-A: Threaded insert without foot white.
Ref 4180: Infusion bottle hanger.
Ref 4181-30: Infusion hook 300 mm.
Ref 4181-50: Infusion hook 500 mm.
Ref 4145-050: Dust cover reel 50 m.
Ref 5165: Connecting bridge.
Ref 4170: Curtain holdback with fixing plate.

Guidance for specification option:

White or natural. Insert requirements.

Ref 4170-ISO: Curtain holdback nat. fixing plate isolated.

Guidance for specification option:

White or natural. Insert requirements.

Ref 4170-M: Curtain holdback with fixing plate - white.
Ref 1420-555: Ceiling rose white for tube ø15 mm.
Ref 1420-564: Ceiling rose white for tube ø22 mm.
Ref 4001-M-N: End stop metal with eye natural.
Ref 4001-M-N-60: End stop metal with eye natural and RV Shook.
Ref 4002: End stop metal.
Ref 4003: Spring stop plastic, requires punch hole.
Ref 4007: Rotating glider.

Guidance for specification option:

White, grey, silver or black. Insert requirements.

Ref 4007-60: Rotating glider with ss hook.
Ref 4007-LRS-10/20: Rotating glider LRS.

Guidance for specification option:

Grey or red. Insert requirements.

Ref 4007-60-LRS-10/20: Rotating glider LRS with SS hook

Guidance for specification option:

Grey or red. Insert requirements.

Ref 4007-70: Rotating glider with ring, white.

Weight

522 g/m.

Fixing

Ref 5135: Ceiling bracket.

Guidance for specification option:

White or natural metallic. Insert requirements.

Ref 4055-10: Threaded rod M6 with plug and 2xnut M6.
Ref 4055-30-10: Suspension hanger mounting set.

Guidance for specification option:

White or natural. Insert requirements.

Ref 4055-30-SYST-10: Suspension hanger mounting set, suspended ceiling.

Guidance for specification option:

White or natural. Insert requirements.

Ref 4055-40: Suspension hanger tube, 1 side threaded.

Guidance for specification option:

50, 100, 150 cm. White/ natural/black. Insert requirements.

Ref 4064-10: Base plate.

Guidance for specification option:

White, natural metallic or black. Insert requirements.

Ref 4064-20: Extender.

Guidance for specification option:

White, natural metallic or black. Insert requirements.

Ref 4064-30-10: Fixing set white.
Ref 4064-30/31-IS-10: Fixing set white isolated.
Ref 4064-40: Hanger tube.

Guidance for specification option:

White or natural metallic. 75, 120, 150, 200 cm. Insert requirements.

Ref 5116-10: Bridging plate with center hole.

Guidance for specification option:

White or natural. Insert requirements.

Ref 5116-20: Bridging plate.

Guidance for specification option:

White or natural. Insert requirements.

Ref 5116-30: Bridging plate for strut hanger.

Guidance for specification option:

White or natural. Insert requirements.

Ref 5130: Connecting bridge.

Guidance for specification option:

White or natural. Insert requirements.

Ref 5140: Wall bracket.

Guidance for specification option:

White or grey. Insert requirements.

Ref 4254: Mini suspension hanger 3 cm.

Guidance for specification option:

White or natural. Insert requirements.

Ref 5149: Wall bracket.

Guidance for specification option:

White or grey. Insert requirements.

Sustainability data

Country of product manufacture

United Kingdom

Guidance for specification option:

And The Netherlands.

Recyclability

100% recyclable

Guidance for specification option:

Goelst aluminium profiles are 100% recyclable, synthetic components and raw materials are recycled either internally or by specialist converter.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Guidance for specification option:

Goelst curtain track profiles are comprised of 75% recycled aluminium.

Literature

G-Rail privacy rail systems - 5100

G-Rail privacy rail systems - 5100
