5100 Hand-Drawn Curtain Track

Goelst UK Ltd

Heavy duty curtain tracks.

Jump to:
+44 (0)1423 873002 Website

Application

  • For sheers and heavy curtains.
  • Used in private homes as well as in professional environments such as office buildings, hotels and care institutions.
  • Suitable for the Goelst Flow system for regularly pleated curtains.

Description

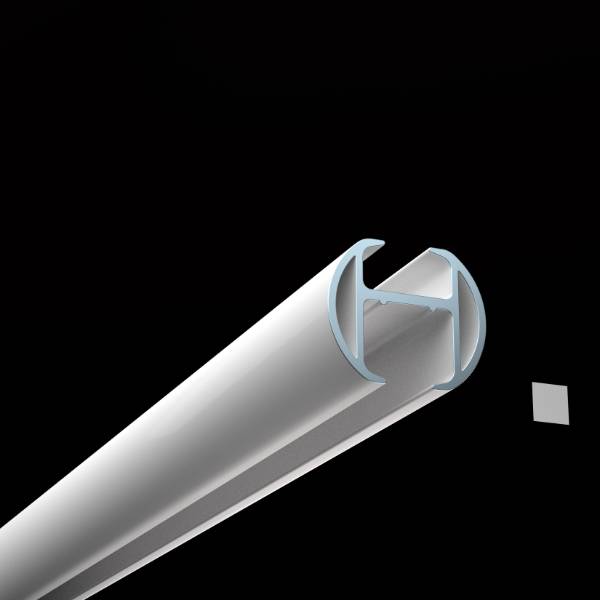

Hand-drawn curtain rail with the appearance of a classic curtain pole.


Features and benefits:

  • Easy to mount on either a wall or a ceiling.
  • Easy to bend.

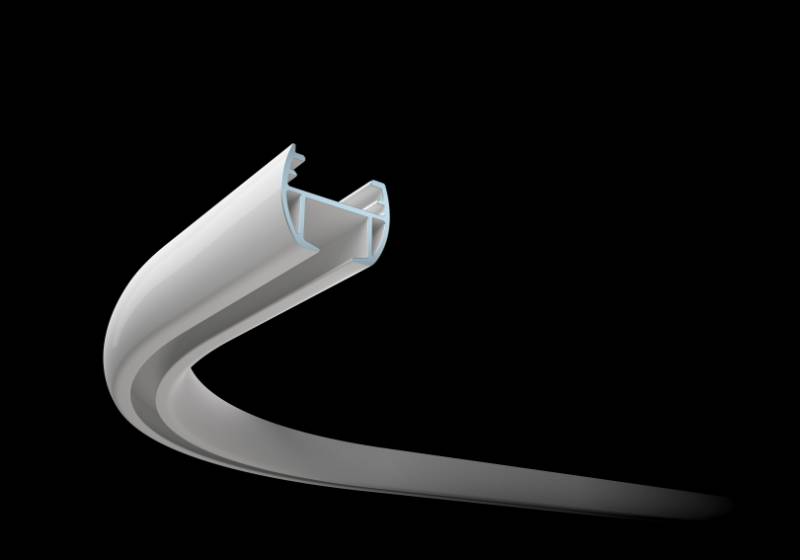

  • Can be forward or reverse bent in different radii.
  • Accessories available in matching colours.
  • Coated aluminium.
  • Selected materials allow curtains to run silently and smoothly, including around bends.
  • The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.
  • Track lengths above 6.0 mts will include internal connecting bridge 5152.

General information

Color

Silver

Natural metallic.

White

RAL 9010, white.

Black

RAL 9005, black.

Finish

Anodized

Powder-coated

Material

Aluminium

Length

Bespoke

Width

28 mm

Height

26 mm

WarrantyDescription

Five year

Warranty for five years against manufacturing defects.

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/230 Curtain supports

Specification data - Window curtain supports

Support

Curtain tracks.

Overall length

Bespoke, manufacturered to size according to project requirements.

-

Material

Aluminium.

Finish

Anodized.

Powder-coated.

Colour

Self-coloured.

RAL 9010, white.

RAL 9005, black.

Operation

Manual.

Integral accessories

Gliders.

End stops.

End caps.

Metal ceiling support bracket.

Weight

522 g/m.

Environmental information

Country of product manufacture

United Kingdom

The UK and The Netherlands.

Recyclability

100%

Goelst aluminium profiles are 100% recyclable, synthetic components and raw materials are recycled internally or by specialist converter.

Recycled content

75 %

Goelst curtain track profiles are composed of 75% recycled aluminium.

Literature

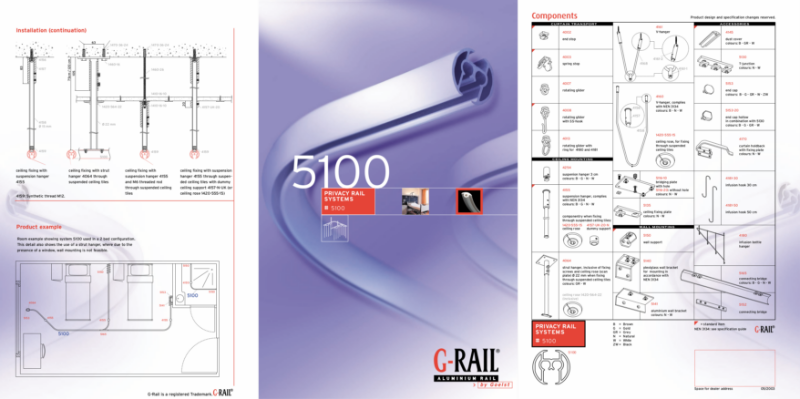

G-Rail privacy rail systems - 5100

G-Rail privacy rail systems - 5100
