4900 Hand-Drawn Curtain Track

Verified by manufacturer 4 months ago

Goelst UK Ltd

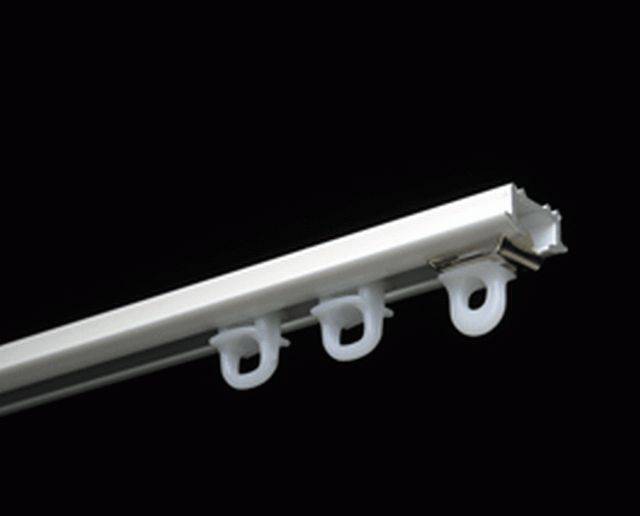

Aluminium hand-drawn curtain track.

Jump to:
+44 (0)1423 873002 Website

Application

  • For sheers and lightweight or mediumweight curtains.

Description

Hand-drawn curtain track with a profile that is suitable for mounting in a channel cut into a wooden surface.


Features and benefits:

  • Easy to forward or reverse bend in different radii.
  • Tapered sides of the track.
  • Can be invisibly mounted.
  • Accessories available in matching colours.

General information

Color

Silver

White

Finish

Anodized

Powder-coated

Material

Aluminium

Length

Bespoke

Width

15 mm

Height

8.5 mm

Warranty description

Five year

Guidance for specification option:

Warranty for five years against manufacturing defects.

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/230 Curtain supports

Specification data - Window curtain supports

Support

Curtain tracks.

Overall length

-

Manufacturer guidance

Bespoke, manufacturered to size according to project requirements.

Material

Aluminium.

Finish

Anodized.

Powder coated.

Colour

Self-coloured.

White.

Operation

Manual.

Integral accessories

Gliders.

End stops.

Screws.

Accessories

None.

Ref 2020.

Guidance for specification option:

Double hook.

Ref 2021.

Guidance for specification option:

G-Hook.

Ref 4001.

Guidance for specification option:

End stop.

Ref 2413.

Guidance for specification option:

Screws 19 mm.

Show more

Weight

97 g/m.

Sustainability data

Country of product manufacture

United Kingdom

Guidance for specification option:

The UK and The Netherlands.

Recyclability

100%

Guidance for specification option:

Goelst aluminium profiles are 100% recyclable, synthetic components and raw materials are either recycled internally or by specialist converter.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Guidance for specification option:

Goelst curtain track profiles are composed of 75% recycled aluminium.

Literature

G-Rail hand drawn wide track - 4900

G-Rail hand drawn wide track - 4900
