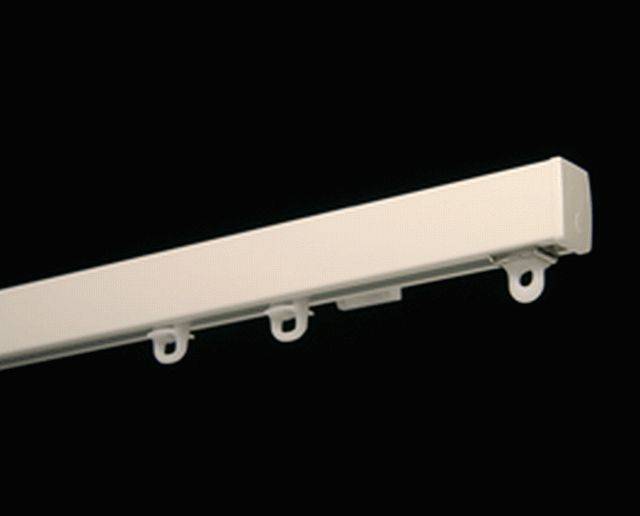

4800 Hand-Drawn Curtain Track

Verified by manufacturer 4 months ago

Goelst UK Ltd

Hand-drawn, heavy duty curtain track.

Jump to:
+44 (0)1423 873002 Website

Application

  • For sheers, mediumweight or heavy curtains.
  • Compatible with the Goelst Flow system for regularly pleated curtains.

Description

Heavy duty, hand-drawn curtain track.


Features and benefits:


  • Can be mounted on either a ceiling or a wall.
  • Profile 4800 can be used in tandem with other G-Rail profiles when main drapes and sheers are combined using double fixing brackets.
  • Easy to bend.
  • Can be forward or reverse bent in different radii.
  • Selected materials allow curtains to run silently and smoothly, including around bends.
  • The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.

General information

Color

Silver

White

Finish

Anodized

Powder-coated

Material

Aluminium

Length

Bespoke

Width

13 mm

Height

21 mm

Warranty description

Five year

Uniclass

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/230 Curtain supports

Specification data - Window curtain supports

Support

Curtain tracks.

Overall length

-

Manufacturer guidance

Bespoke, manufacturered to size according to project requirements.

Material

Aluminium.

Finish

Anodized.

Powder coated.

Colour

Self-coloured.

RAL 9010, white.

Operation

Manual.

Integral accessories

Gliders.

End caps.

End stops.

Connecting bridge.

Accessories

None.

Ref 2020.

Guidance for specification option:

Double hook.

Ref 2021.

Guidance for specification option:

G-hook.

Ref 4001.

Guidance for specification option:

End stop.

Ref 4002.

Guidance for specification option:

End stop.

Show more

Weight

231 g/m.

Fixing

Ref 2015/5.

Guidance for specification option:

Extension bracket

Ref 2015/10.

Guidance for specification option:

Extension bracket

Ref 2015/15.

Guidance for specification option:

Extension bracket

Ref 2216.

Guidance for specification option:

Double bracket

Sustainability data

Country of product manufacture

United Kingdom

Guidance for specification option:

United Kingdom and The Netherlands.

Manufacturer guidance

United Kingdom and The Netherlands.

Recyclability

-

Manufacturer guidance

Goelst aluminium profiles are 100% recyclable, synthetic components and raw materials are recycled either internally or by specialist converter.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Guidance for specification option:

Goelst curtain track profiles are composed of 75% recycled aluminium.

Literature

G-Rail hand drawn wide track - 4800

G-Rail hand drawn wide track - 4800
