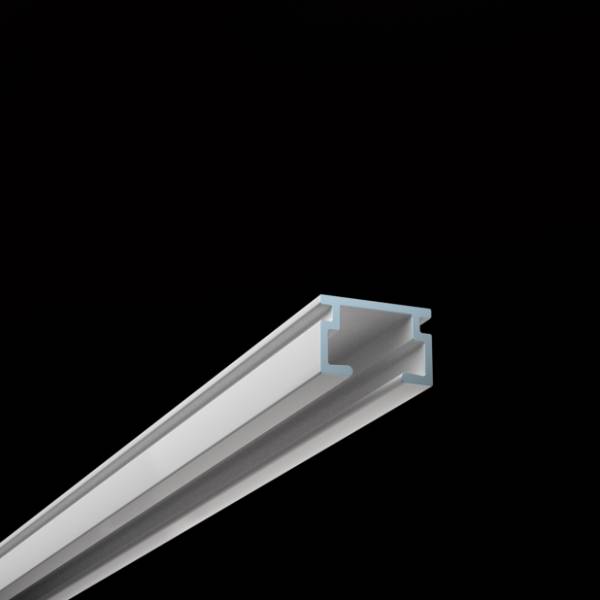

4701 Hand-Drawn Curtain Track
Verified by manufacturer 4 months ago
10 mm deep, hand-drawn curtain track.
Application
- For sheers and light-weight or medium-weight curtains.
- Can be used in homes or office buildings.
- Compatible with the Goelst Flow System for regularly pleated curtains.
Description
Hand-drawn, wide-channel, rectangular curtain track manufactured from aluminium.
Features and benefits:
- Easy to bend forward or reverse in different radii.
- Selected materials allow curtains to run silently and smoothly, including around bends.
- The curtain track can be pre-formed to match customer requirements and delivered as a single piece to eliminate the disadvantage of separate bends and joins in the running length.
- Concealed mounting on a ceiling or using fixing bracket.
- Several punch hole options are available with differing centres and either round or elongated holes.
General information
Color | Silver White |
Finish | Anodized Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | 15 mm |
Height | 10 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/230 Curtain supports |
Specification data - Window curtain supports
Support | Curtain tracks. |
Overall length | Manufacturer guidanceBespoke, manufacturered to size according to project requirements. |
Material | Aluminium.Guidance for specification option: TO EN AW-6060 T66. |
Finish | Anodized.Powder coated. |
Colour | Self-coloured.RAL 9010, white. |
Operation | Manual. |
Integral accessories | Gliders.End caps.End stops. |
Accessories | None. Ref 2020. Guidance for specification option: Double hook. Ref 2021. Guidance for specification option: G-Hook. Ref 4001. Guidance for specification option: End stop. Ref 2023. Guidance for specification option: Curtain hook. |
Weight | 137 g/m. |
Fixing | To timber. To concrete with ceiling bracket, ref 4750. |
Sustainability data
Country of product manufacture | United Kingdom Guidance for specification option: The UK and The Netherlands. Manufacturer guidanceThe UK and The Netherlands. |
Recyclability | Manufacturer guidanceAluminium profiles are 100% recyclable, synthetic components and raw materials are recycled either internally or by specialist converters. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 75 % Manufacturer guidanceCurtain track profiles are composed of 75% recycled aluminium. |
Literature
G-Rail hand drawn wide channel - 4700 series
