160 Surface Mount Corner Guard_1612

Verified by manufacturer 5 months ago

Inpro

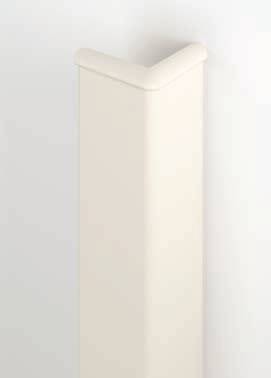

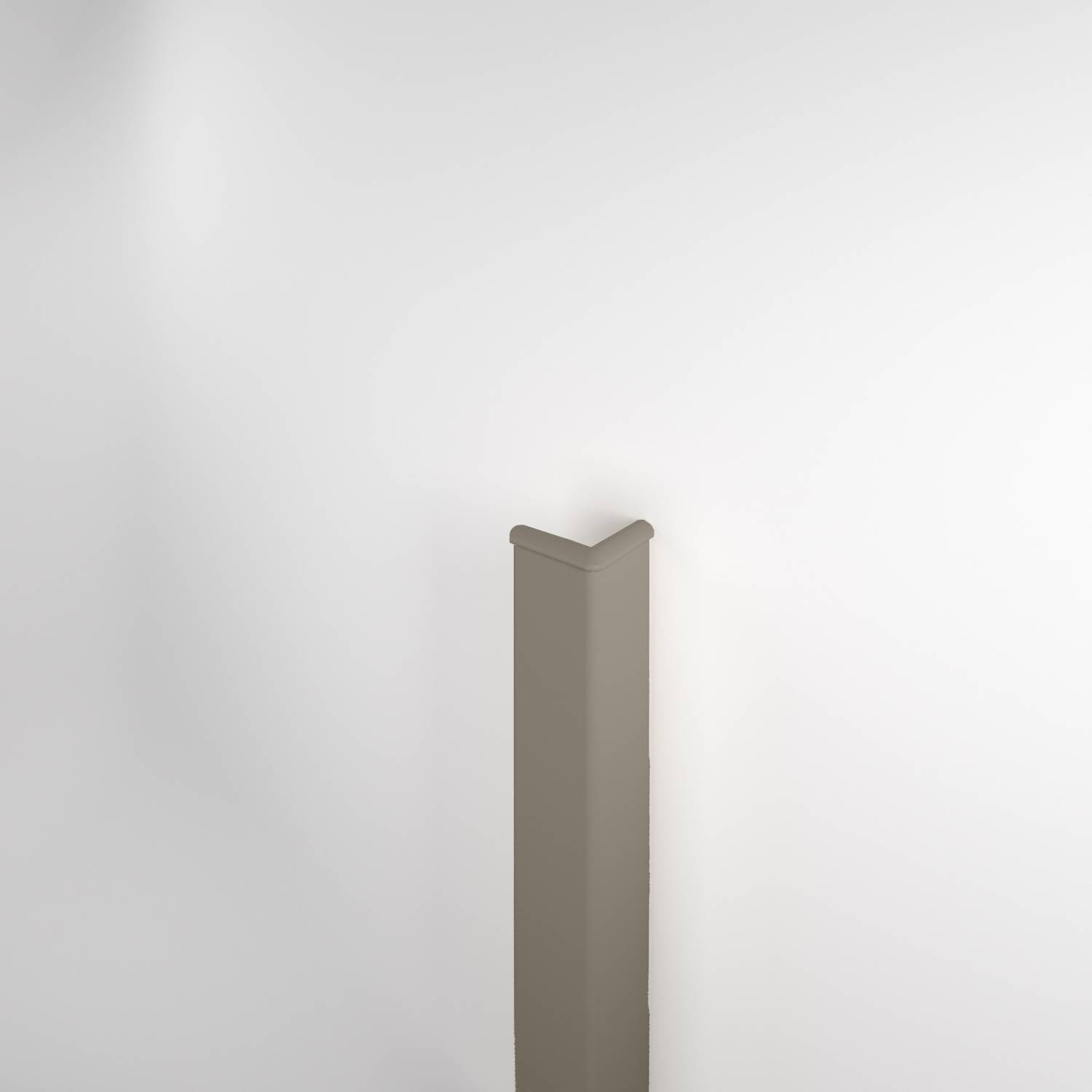

The 160 corner guard protects the most vulnerable areas of your walls from dings and scrapes - 90°, 51 mm wing.

Jump to:
07494249485 Website

Application

Suitable for use in all high impact areas where damage protection is required.

Description

The 160 surface mount corner guard protects the most vulnerable areas of walls from scrapes and other damage.

Includes:

  • 90°, 2" (51 mm) wing.
  • 0.080" (2 mm) rigid vinyl cover.
  • 0.070" (1.8 mm) continuous aluminium retainer.
  • 9" (2.74 m) high.


Features and benefits:

  • Manufactured from safe, durable and recyclable PVC-U.
  • Helps to protect corners from damage, and conceals existing scrapes.
  • Easy to install and maintain.
  • Available in a variety of colours.
  • Custom heights are available, consult manufacturer for details.
  • Includes mounting fasteners and top and bottom caps.
  • Cost effective.
  • Mounted onto a 1.8 mm thick aluminium retainer with pre-slotted holes.
  • Contains no phthalates, halogenated fire retardants or bisphenol-a (BPA).
  • Low fossil fuel consumption.


Approvals/ certifications:

  • GREENGUARD™ Indoor Air Quality Children and Schools certified.
  • May qualify for LEED™ and Green Globes™ credits – consult manufacturer for details.
  • Fungal and bacterial resistant (to ASTM G21 and G22).
  • Good impact resistance (to ASTM F-476).

General information

Color

-

Manufacturer guidance

Available in a range of colours.

Finish

Textured

Material

Aluminium

Guidance for specification option:

Retainer.

PVC-U

Guidance for specification option:

Corner guard.

Vinyl

Guidance for specification option:

Cover.

Warranty description

Guidance for specification option:

Standard Limited Lifetime Warranty against material and manufacturing defects.

Size

52 x 51 mm

Guidance for specification option:

2.74 m high.

90° angle.

Uniclass

Pr_35_90_43_15 Corner guardsPrimary

CAWS

N10/184 Wall rails

P20/170 Proprietary

P20/30 Proprietary

Product range

Corner Guards

Specification data - Corner guards

Material

PVC-U.

Fire rating

NFPA, class A.

Finish

-

Colour

Aloe 1057.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 59.33.

Beeswax 0249.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 56.9.

Black 0152.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 4.5.

Buoyant Blue 0132.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 25.5.

Burlap 0252.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 43.4.

Cabernet 0241.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 7.7.

Canary 1050.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 77.77.

Cardinal 0236.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 11.2.

Castle 0256.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 10.8.

Clam Shell 0154.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 71.1.

Cloudy 1059.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 49.09.

Clover 1058.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 19.82.

Crystal Jade 0187.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 34.8.

Designer White 0101.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 78.7.

Dove Gray 0106.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 37.1.

Eggshell 0111.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 68.4.

English Green 0125.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 16.6.

Honey 1053.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 34.21.

Light Beige 0109.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 70.5.

Mandarin 1054.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 36.69.

Mint 1056.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 55.21.

Orchid 1055.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 17.36.

Periwinkle 0272.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 19.5.

Pewter Gray 0107.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 17.5.

Point Blue 0165.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 8.9.

Purple Haze 0171.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 15.8.

River Rock 0351.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 22.4.

Sharkskin 0350.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 42.2.

Sherbet 1052.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 51.3.

Silver 0105.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 48.1.

Sunny Day 1051.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 69.84.

Taupe 0113.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 52.0.

Truffle 0284.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 9.6.

White Sand 0103.

Guidance for specification option:

Standard solid colours: Light reflectance value (LRV): 77.0.

Applewood 0537.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 30.5.

American Walnut 0555.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 6.3.

Boston Cherry 0534.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 9.2.

Honeynut 0535.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 15.9.

Natural Maple 0531.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 57.7.

Santa Rosa 0532.

Guidance for specification option:

Woodlands patterns (W): Light reflectance value (LRV): 37.3.

Texture

Pebblette.

Size

52 x 51 mm.

Fixing

Screws.

Height

2.74 m.

Angle

90°.

Cover

Scratch and stain resistant rigid vinyl.

Guidance for specification option:

2 mm thickness.

Retainer

1.8 mm continuous aluminium retainer.

Sustainability data

Country of material origin

Italy

Recyclability

-

Manufacturer guidance

Recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %

Guidance for specification option:

Up to 40% recycled content in aluminium retainers.

BIM objects

Platform Compatible Version
Revit

Revit 2017

1

Similar products from Inpro

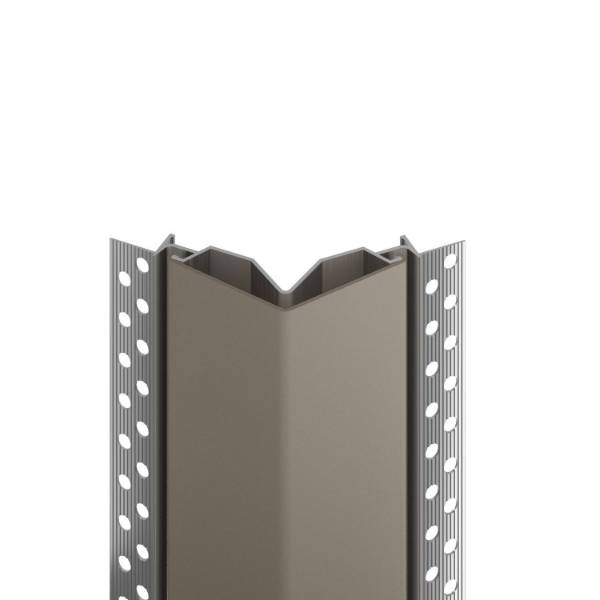

130 Flush Mount Corner Guard_1312F

130 Flush Mount Corner Guard_1312F

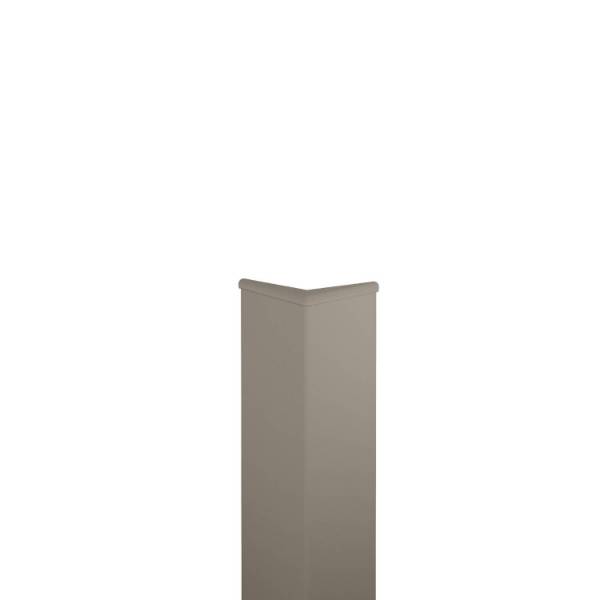

130 Surface Mount Corner Guard_1312

130 Surface Mount Corner Guard_1312

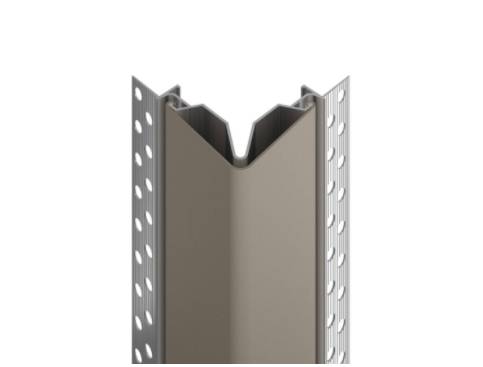

150 Flush Mount Corner Guard_1512F

150 Flush Mount Corner Guard_1512F

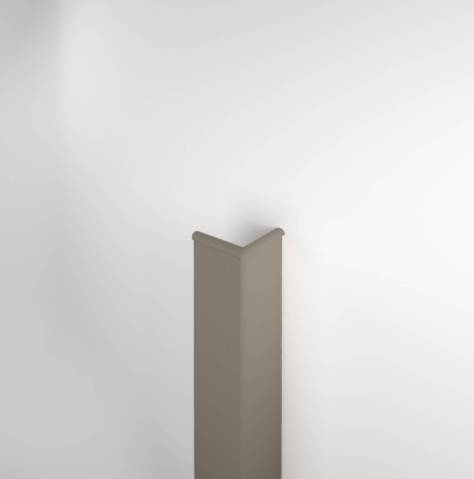

150 Surface Mount Corner Guard_1512

150 Surface Mount Corner Guard_1512

160 Flush Mount Corner Guard_ 1612F

160 Flush Mount Corner Guard_ 1612F

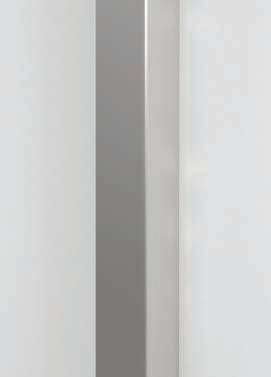

Aluminium Corner Guard

Aluminium Corner Guard

NuTree Corner Guard

NuTree Corner Guard

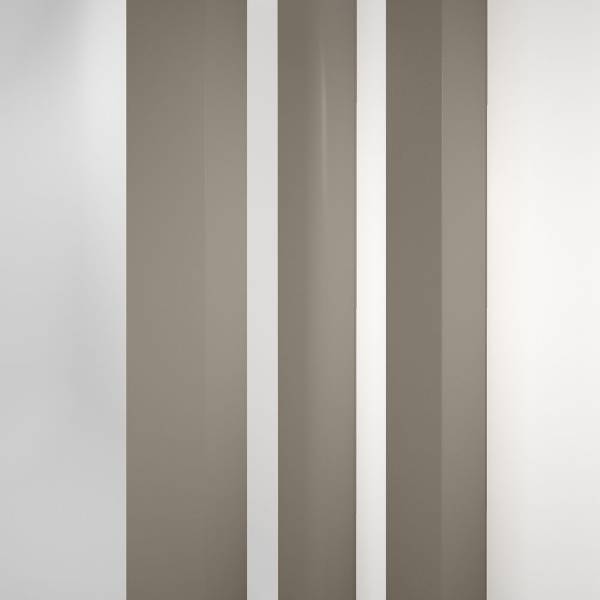

Tape-On Corner Guard
