150 Surface Mount Corner Guard_1512
Verified by manufacturer 4 months ago

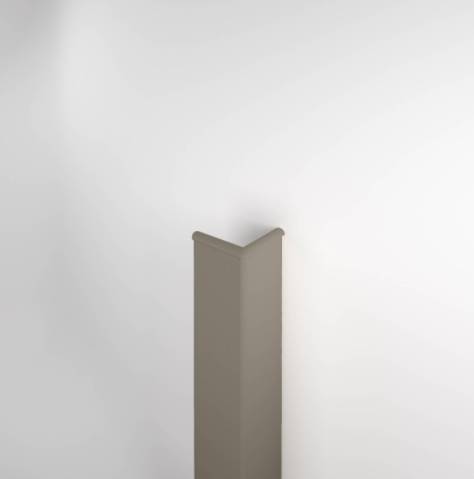

The 150 corner guard protects the most vulnerable areas of your walls from dings and scrapes - 90°, 76 mm wing.
Application
Suitable for use in all commercial areas where damage protection is required.
Description
The 150 surface mount corner guard protects the most vulnerable areas of walls from scrapes and other damage.
Includes:
- 90°, 3" (76 mm) wing.
- 0.080" (2 mm) rigid vinyl cover.
- 0.070" (1.8 mm) continuous aluminium retainer.
- 12" (3.66 m) length.
Features and benefits:
- Manufactured from safe, durable and recyclable PVC-U.
- Helps to protect corners from damage, and conceals existing scrapes.
- Easy to install and maintain.
- Available in a variety of colours.
- Custom heights and angles are available, consult manufacturer for details.
- Includes mounting fasteners and top and bottom caps.
- Cost effective.
- Mounted onto a 1.8 mm thick aluminium retainer with pre-slotted holes.
- Contains no phthalates, halogenated fire retardants or bisphenol-a (BPA).
- Low fossil fuel consumption.
General information
Color | Manufacturer guidanceAvailable in: Standard Solid Colours. |
Finish | Textured |
Material | Aluminium Guidance for specification option: Retainer. Unplasticized polyvinyl chloride (PVC-U) Guidance for specification option: Corner guard. Vinyl Guidance for specification option: Cover. |
Warranty description | Guidance for specification option: Standard Limited lifetime warranty against material and manufacturing defects. |
Size | 76 x 76 mm Guidance for specification option: 12" (3.66 m) high. 90° angle. |
Uniclass | |
CAWS | E42/350 Proprietary corner guards P20/170 Proprietary P20/30 Proprietary |
Specification data - Corner guards
Material | PVC-U. |
Fire rating | NFPA, class A. |
Finish | |
Colour | Aloe 1057.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 59.33. Beeswax 0249.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 56.9. Black 0152.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 4.5. Buoyant Blue 0132.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 25.5. Burlap 0252.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 43.4. Cabernet 0241.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 7.7. Canary 1050.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 77.77. Cardinal 0236.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 11.2. Castle 0256.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 10.8. Clam Shell 0154.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 71.1. Cloudy 1059.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 49.09. Clover 1058.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 19.82. Crystal Jade 0187.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 34.8. Designer White 0101.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 78.7. Dove Gray 0106.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 37.1. Eggshell 0111.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 68.4. English Green 0125.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 16.6. Honey 1053.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 34.21. Light Beige 0109.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 70.5. Mandarin 1054.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 36.69. Mint 1056.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 55.21. Orchid 1055.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 17.36. Periwinkle 0272.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 19.5. Point Blue 0165.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 8.9. Purple Haze 0171.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 15.8. River Rock 0351.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 22.4. Sharkskin 0350.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 42.2. Sherbet 1052.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 51.3. Silver 0105.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 48.1. Sunny Day 1051.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 69.84. Taupe 0113.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 52.0. Truffle 0284.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 9.6. White Sand 0103.Guidance for specification option: Standard solid colours: Light reflectance value (LRV): 77.0. |
Texture | Pebblette. |
Size | 76 x 76 mm. |
Fixing | Screws. |
Height | 3.66 m. |
Angle | 90°. |
Cover | Scratch and stain resistant rigid vinyl. Guidance for specification option: 2 mm thickness. |
Retainer | 1.8 mm continuous aluminium retainer. |
Sustainability data
Country of material origin | Italy |
Country of product manufacture | Italy |
Recyclability | Manufacturer guidanceRecyclable. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % Guidance for specification option: Up to 40% recycled content in aluminium retainers. |
