25/14 brick-tie Restraint System

25/14 brick-tie Restraint System

Wincro Metal Industries Ltd

This system is designed to tie back external masonry to SFS steel studwork. Dual thread self-drilling self-tapping screws fix back through the channel and insulation into the SFS. Wincro WTS2C27 safe ended brick ties slot into the channel and build into the outer leaf of brickwork.

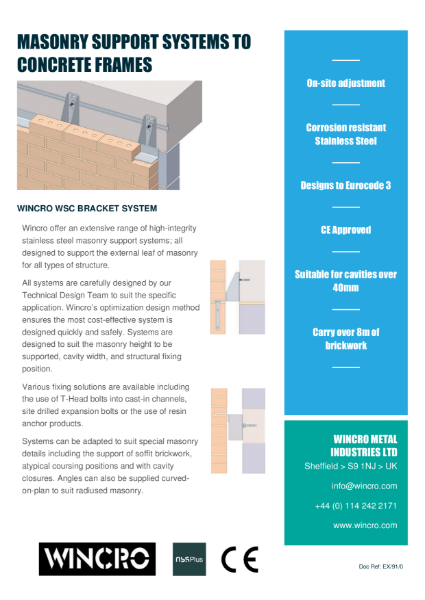

Brick Support System for Concrete Frames

Brick Support System for Concrete Frames

Wincro Metal Industries Ltd

Various fixing solutions are available including the use of T bolts into cast-in channels, site drilled expansion bolts or the use of resin anchor products.

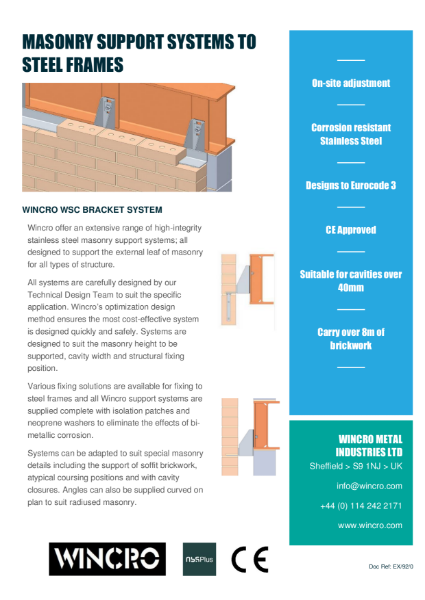

Brick Support System for Steel Frames

Brick Support System for Steel Frames

Wincro Metal Industries Ltd

Various fixing solutions are available for fixing to steel frames and all Wincro support systems are supplied complete with isolation patches and neoprene washers to eliminate the effects of bi metallic corrosion.
Channel and Bolt Fixings

Channel and Bolt Fixings

Wincro Metal Industries Ltd

Wincro channels provide positive anchorages for fixing components and allow generous tolerances for setting-out. A wide variety of stainless steel channel sections and fixings are available for use with our range of masonry supports, windposts, wall ties and restraints. Channels are available for casting into concrete or for surface fixing to the face of a structure. They are supported by a wide range of fixing bolts and restraint anchors to suit all construction applications. The use of channels often eliminates the need for the costly and time-consuming procedure of site drilling either concrete or steelwork. Our channels range includes: Light duty self-anchoring channels for restraining masonry through to heavy duty channels complete with welded wavy tail anchors.

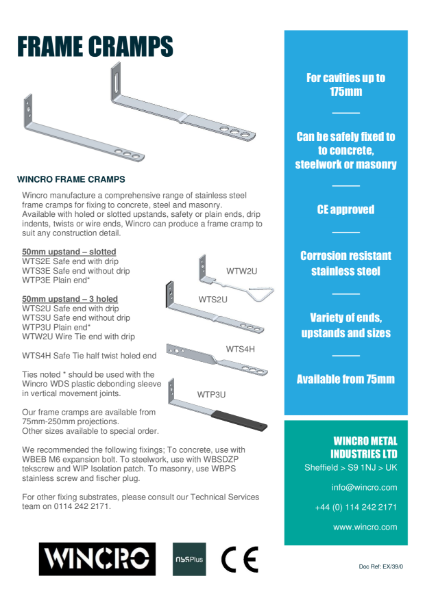

Frame Cramps

Frame Cramps

Wincro Metal Industries Ltd

Wincro manufacture a comprehensive range of stainless steel frame cramps for fixing to concrete, steel and masonry. Available with holed or slotted upstands, safety or plain ends, drip indents, twists or wire ends, Wincro can produce a frame cramp to suit any construction detail.

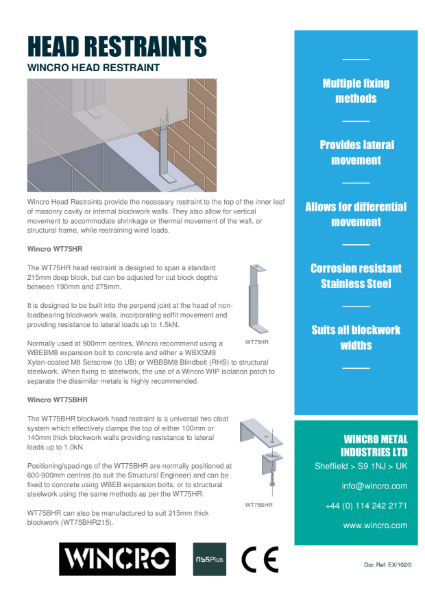

Head Restraints

Head Restraints

Wincro Metal Industries Ltd

The Wincro WT75HR internal blockwork head restraint is designed to span a standard 215mm deep block, but can be adjusted for block depths between 190mm and 275mm.

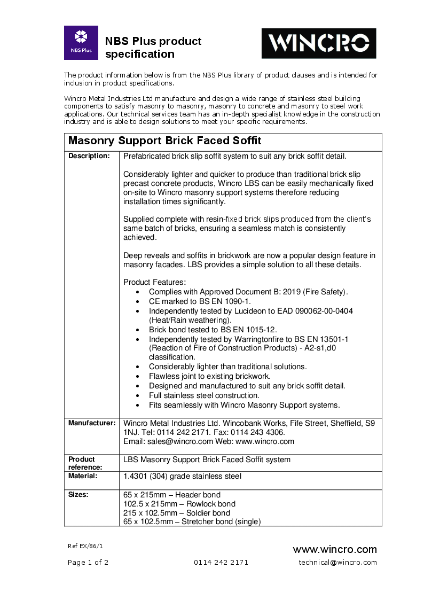

Masonry Support Brick Faced Soffits

Masonry Support Brick Faced Soffits

Wincro Metal Industries Ltd

Wincro LBS prefabricated brick slip units provide a simple, time-saving solution for incorporating soffit brickwork details to the full range of Wincro Masonry Support Systems.
Masonry Support Systems

Masonry Support Systems

Wincro Metal Industries Ltd

We have developed an extensive range of high integrity stainless steel masonry support systems, all designed to support the external leaf of masonry for all types of structure. Frame type, type of cladding, masonry load and cavity width all need to be considered when designing the most appropriate solution. The Wincro Masonry Support Systems range covers various applications including fixing to concrete, steel beam and steel RHS framed structures.

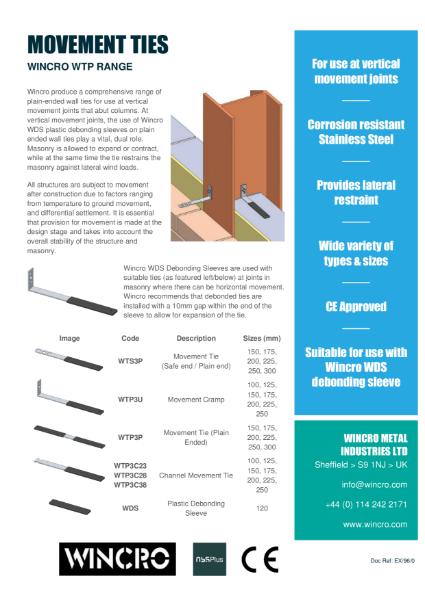

Movement Ties

Movement Ties

Wincro Metal Industries Ltd

At vertical movement joints, the use of plastic debonding sleeves on plain ended wall ties play a dual role. Masonry is allowed to expand or contract, while at the same time the tie restrains the masonry against lateral wind loads

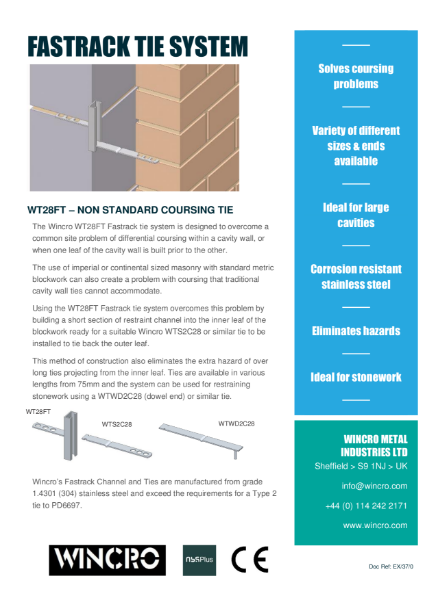

Non Standard Coursing

Non Standard Coursing

Wincro Metal Industries Ltd

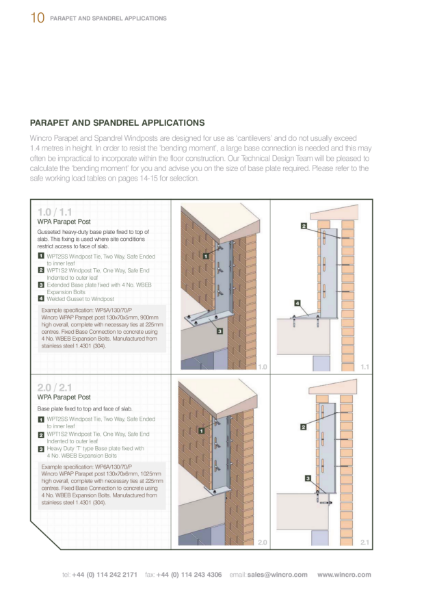

Parapet Posts

Parapet Posts

Wincro Metal Industries Ltd

Wincro Parapet Windposts provide lateral support for masonry clad parapet walls. They provide a cost-effective alternative to traditional techniques, such as increasing wall thicknesses or introducing piers or extra structural columns. Wincro have developed an extensive range of strong, lightweight, parapet posts with a wide range of base fixings to suit a variety of applications including connections to structural steel, concrete frame or precast floor planks. Parapet and Spandrel posts are designed as cantilevers and include a large base connection. Spandrel posts include spandrel rails and connections, designed to suit specific circumstances. Special designs can also be accommodated.

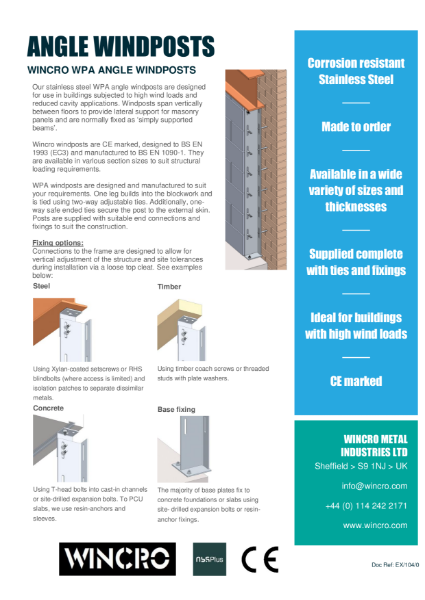

Stainless Steel Angle Windposts

Stainless Steel Angle Windposts

Wincro Metal Industries Ltd

WPA Windposts are ideal for use in buildings subjected to high wind loads and for reduced cavity applications. The main windpost leg is built into the inner leaf of the blockwork and tied using one-piece, two way ties. Windposts provide strength and stability for panels of masonry cladding.
Stainless Steel Cavity Windposts

Stainless Steel Cavity Windposts

Wincro Metal Industries Ltd

Ideal for buildings subjected to moderate wind loads; these channel section type windposts build into the cavity and tie to both masonry leaves using one-piece one-way ties without disturbing the inner blockwork skin.
Stainless Steel Flooring Systems

Stainless Steel Flooring Systems

Wincro Metal Industries Ltd

Our stainless steel flooring systems have been used extensively worldwide to provide long term corrosion resistant solutions in many environments. Our products include solid SUREGRIP floorplate, Thin Gauge SUREGRIP, Open Grid, Plank flooring and stainless steel balustrading. We also provide a full fabrication service including plates cut to size, with factory cut holes, stair treads, pre-assembled stairways, ladders and components ready for site assembly.

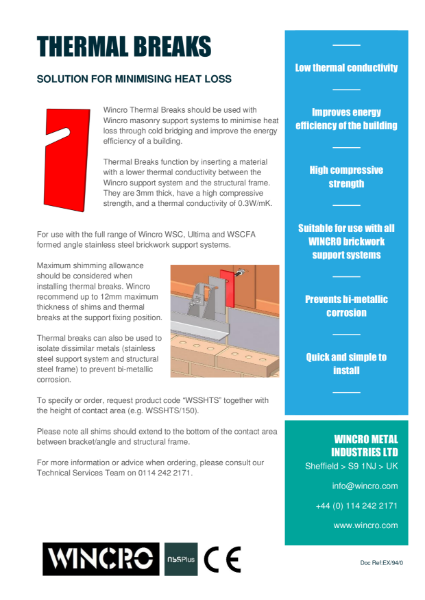

Thermal Breaks

Thermal Breaks

Wincro Metal Industries Ltd

Wincro Thermal Breaks are used with Wincro Masonry Support systems to minimize heat loss through cold bridging and improve the energy efficiency of the building.

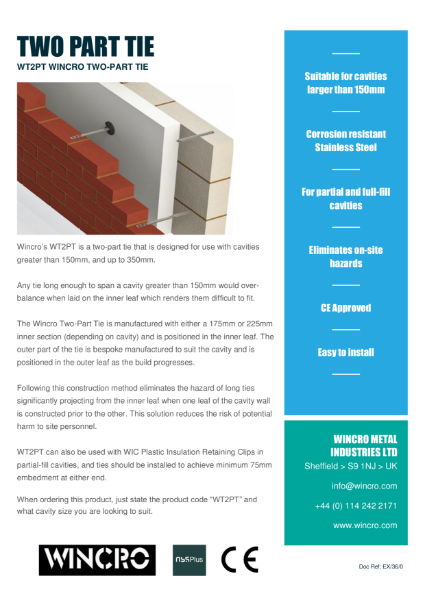

Two Part Wall Tie

Two Part Wall Tie

Wincro Metal Industries Ltd

The Wincro WT2PT is a two-part tie suitable for cavities greater than 150mm. Ties long enough to span a cavity greater than 150mm would over balance when laid on the inner leaf.
Type 1 Wall Tie

Type 1 Wall Tie

Wincro Metal Industries Ltd

WT1 is suitable for cavities from 50mm to 175mm and is available in lengths from 200mm to 300mm. Suitable for buildings of any height, anywhere in the U.K, WT1 has a measured dynamic stiffness of <113MN/m3 to meet the performance requirements of Approved Document E for use in ex-ternal masonry walls.

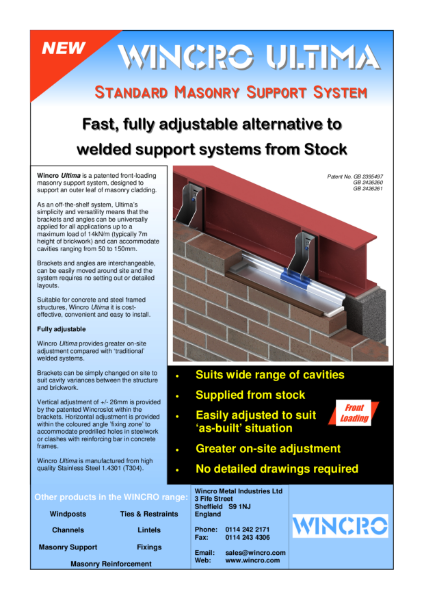

Ultima Standard Support System

Ultima Standard Support System

Wincro Metal Industries Ltd

Wincro ULTIMA is a standard, ex-stock, fully adjustable stainless steel masonry support system that is supplied in kit form, offering greater flexibility on site compared to traditional welded support systems. Wincro ULTIMA is cost effective, convenient and easy to install. Brackets and angles are fully interchangeable, can be easily moved around site and the system requires no setting out or detailed layout drawings. Brackets can be simply changed on site to suit cavity variances between the structural face and masonry. Suitable for concrete and steel framed structures, the system is supplied with all necessary fixings and installation instructions.
Wall Ties & Restraints

Wall Ties & Restraints

Wincro Metal Industries Ltd

Wincro have developed an extensive range of stainless steel wall ties and restraint fixings to comply with all relevant standards to meet the vital requirements for the stability of masonry panel designs. The selection and spacing of wall ties depend on many factors and should include the type of masonry to be restrained, the cavity width, height and type of building, its location and the specified design life. Our range of standard wall ties and restraints can be used in many applications including masonry to masonry (brick and blockwork cavity walls), concrete and steelwork structures. We produce a comprehensive range of cavity wall ties, shear ties, movement ties, frame cramps, slot ties for cast in systems and a variety of head restraint products, all to exacting standards.
Windposts & Parapet Posts

Windposts & Parapet Posts

Wincro Metal Industries Ltd

Wincro Windposts provide lateral support for panels of masonry cladding. They provide a cost-effective alternative to traditional techniques, such as increasing wall thicknesses or introducing extra structural columns. Wincro have developed an extensive range of strong, lightweight, windposts that span vertically between floors and are available with a wide range of head and base fixings to suit a variety of applications including connections to structural steel, concrete frame or precast floor planks. Parapet and Spandrel posts are designed as cantilevers and include a large base connection. Spandrel posts include spandrel rails and connections, designed to suit specific circumstances. Special designs can also be accommodated.
