Aluminium in Architecture
Showing 1-36 of 46

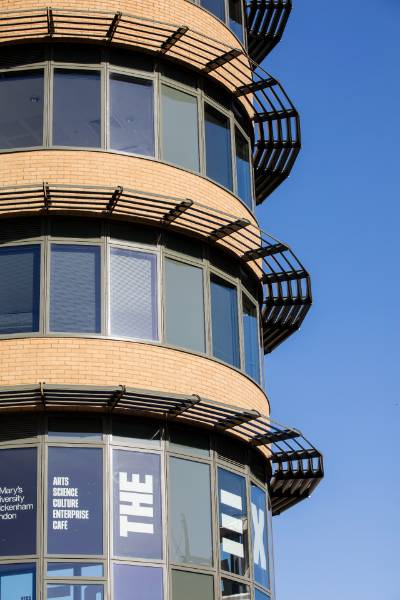

150 Solar Shade System at The Exchange, London
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Twickenham, LondonProject Type: Community & LeisureDevelopment cost: £5mProduct: Shadex 150 Solar Shade Horizontal (First Fix Brackets)Finish: Syntha Pulvin RAL 7009 Gloss Green GreyFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Berkeley Homes for LB of RichmondArchitect: Buller Welsh Chartered ArchitectsMain Contractor: Berkeley HomesSub Contractor: AJE Facades Ltd
Aluminium Eaves System at Wymondham Library, Norfolk
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Wymondham, Norfolk Project: Educational Product: Curved Meridian Aluminium Wall Coping, Aluminium Eaves System with hidden gutter & support-work, Rainwater pipes & Brise Soleil Shading System Finish: Syntha Pulvin RAL 7012 Matt Basalt Grey Fire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018) Architect: NPS Property Consultants Ltd Main Contractor: Morgan Ashurst Sub Contractor: Roweaver Developments Ltd
Aluminium Eaves System with Secret Fix Soffit Panels at The Gade, Hemel Hempstead
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Hemel Hempstead, HertsProject Type: Local Authority OfficesDevelopment Cost: £11.2mProduct: Aluminium Eaves SystemSecret Fix Soffit PanelsMonocoque Support System & Curtain-Wall SurroundFinish: Syntha Pulvin RAL 2001 MattFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Dacorum Borough CouncilArchitect: Aukett SwankeMain Contractor: R.G.Carter LtdSub Contractor: Drayton Windows Ltd
Aluminium Plain Fascia at Netherfield Primary School
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Netherfield, NottinghamshireProject Type: EducationalProduct: Aluminium Plain FasciaKwikfix Soffit Planks (Perpendicular)Finish: Syntha Pulvin RAL 7015 Gloss Slate GreyFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Nottinghamshire County CouncilArchitect: Nottinghamshire County CouncilSub Contractor: Cladceil Ltd

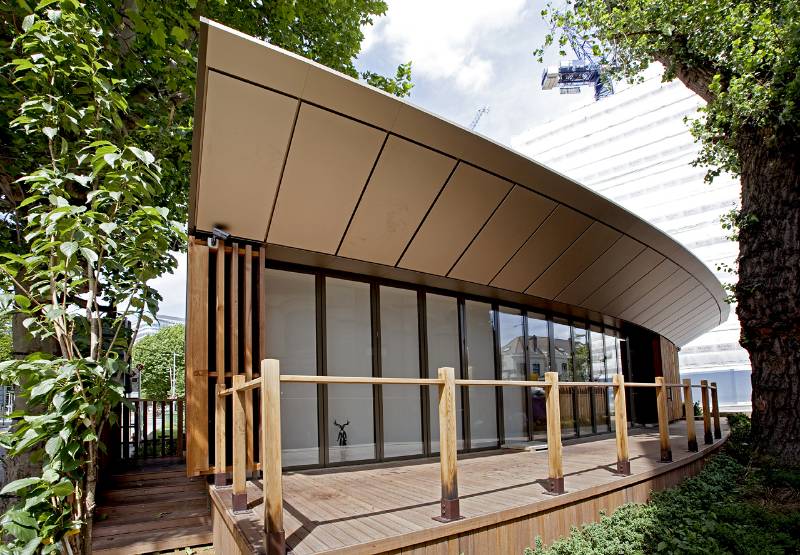

Anodised Aluminium and Polyester Powder Coated Finishes On Aluminium Fascia Soffit At The Restaurant Story
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Tooley Street, London BridgeProject: RestaurantProduct: Raking Fascia Secret Fix Soffit Panels (facetted to both concave and convex radii)Finish: United Anodisers Anolok Bronze 541Fire Rating: A1 – Non-combustibleProduct: Plain Verge Fascia Finish: Syntha Pulvin RAL 7013 Brown Grey MattFire Rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Tom Sellers Restaurant StoryArchitect: Spacecraft ArchitectsMain Contractor: McGee Ltd
Anodised Raking Fascia Soffit & Feature Fins in Blue
Dales Fabrications Ltd - Aluminium Eaves Products
Project type: Commercial Offices
Development cost: £11m
Product: Anodised Aluminium Raking Fascia & Secret Fix Soffit Panels, Modulated
Finish: Anodised to UA-150-0 Blue colour Shade
Client: Aviva
Architect: Scott Brownrigg Architects
Main Contractor: Gilbert Ash-NI Ltd
Sub Contractor: Alufix
Balcony Cladding at The Astley, Manchester
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Port Street, Northern Quarter Manchester M1 2EGProject Type: Housing (Private Rental Sector) Development Cost: £27m Products: Aluminium Soffit Cladding to Recessed Balconies, Weatherstruck Aluminium Wall Copings Finish: Interpon D1036 RAL 1036 Matt Pearl Gold Fire rating: A2 s1, d0 (Classification Reaction to Fire EN BS 13501-1:2018). Client: Mulbury City Architect: Tim Groome Architects Main Contractor: Bardsley Construction Ltd Facades Contractor: Longworth Building Services Ltd Sub Contractor: Stafford Rainwater Systems Ltd
Balcony Soffit Cladding at Catford Green, London
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Catford, LondonProject Type: HousingDevelopment Cost: £8.95mProduct: Self-Draining Balcony Soffit Cladding with Integral GutterFinish: Syntha Pulvin RAL 7006 Matt Beige GreyFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Barratt Developments PlcArchitects: ATP Group PartnershipMain Contractor: Barratt Developments PlcSub Contractor: Balguard Engineering Ltd
Balcony Soffit Cladding for Colindale Housing development
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Barnet, LondonProject Type: HousingDevelopment Cost: £26mProduct: Balcony Cladding with THX Soffit PanelsFinish: Syntha Pulvin RAL 7022 Matt Umbra GreyFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Redrow HomesArchitect: Fourpoints ArchitectsMain Contractor: Barratt Developments PlcSub Contractor: Balguard Engineering Ltd
Balcony Soffit Cladding used on Acton Gardens Regeneration
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Acton, London
Project Type: Housing
Development Cost: £160m
Product: Balcony Soffit Cladding, Meridian Copings, 101.6 Dia & 76.2 Dia Contemporary Rainwater
Finish: Interpon YW255F Golden Beach (Balcony Soffits), RAL 7016 Matt (Meridian Copings & Rainwater Pipes)
Client: Countryside Properties Plc
Architects: A&Q Partnership (London) Limited
Main Contractor: Countryside Properties Plc
Sub Contractor: Roweaver Developments Ltd
Bespoke Aluminium Rainscreen Panels at Wimbledon High School
Dales Fabrications Ltd - Aluminium Eaves Products
Project type: EducationLocation: Wimbledon High School, London, SW19 4ABProject Cost: £21mProduct: Rainscreen with ExtrusionsFinish (Extrusions): Syntha Pulvin RAL 7047 Matt Telegrau 4Finish (Panel): Syntha Pulvin RAL 7021 Matt Black GreyProduct: Fascia Soffit to Eaves, Verge & RIdgeFinish: Syntha Pulvin RAL 7021 Matt Black GreyProduct: Vertical Feature FinsFinish: Syntha Pulvin RAL 7021 Matt Black GreyProduct: Copings & Rainwater PipesFinish: Syntha Pulvin RAL 7021 Matt Black GreyFire Rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Product: Monocoque Support System (Galv)Fire Rating: A1 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Neilcott Construction LTDArchitect: IID ArchitectsContractor: Neilcott Construction LTDPhotography: IID Architects & John Nason
Bingham Methodist Church
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Bingham, NottinghamshireProject Type: EcclesiasticalDevelopment Cost: £1.6mProduct: Meridian Coping Curved to 2-RadiiAluminium Fascia SoffitMonocoque Support System100mm Round Contemporary Rainwater PipeFinish: Syntha Pulvin RAL 7043 Matt Verkehrsgrau BFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Bingham Methodist ChurchArchitect: Allan Joyce ArchitectsMain Contractor: A & S Enterprises Limited
Bullnose Fascia and Meridian Coping at Osborne Gate
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Bracknell, BerksProject Type: ResidentialDevelopment Cost: £33mProduct: 600m Bullnose FasciaRaking Secret-Fix Panel Soffit320m Meridian Coping250m Balcony FasciasFinish: Syntha Pulvin RAL 7005 Satin Mouse GreyFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Redrow Homes LtdArchitect: Vista ArchitectureMain Contractor: Redrow Homes LtdSub Contractor: Stafford Rainwater Systems Ltd
Complete Aluminium Eaves System at BMW Dealership, Cheltenham
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Cheltenham, GloucestershireProject Type: Automotive & RetailDevelopment Cost: £10mProduct: Complete Aluminium Eaves System2000m² Secret Fix Soffit PanelsOriel window surroundsFinish: Syntha Pulvin RAL 9016 Matt Traffic WhiteRAL 9005 Matt Jet BlackFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Cotswold BMWArchitect: MDG ArchitectsMain Contractor: Revival Developers LtdSub Contractor: Cladceil Ltd
Complete Eaves System at St Sidwell's Leisure Centre
Dales Fabrications Ltd - Aluminium Eaves Products
Project type: Leisure Centre Location: Sidwell’s Leisure Centre, Paris Street, Exeter, EX1 2JX Project Cost: £44m Product: Complete Eaves System Including: Fascia Soffit (Facetted and Tapered), Hidden Aluminium Gutter Finish: United Anodisers Anodised Aluminium: Anolok Bronze 541 Fire Rating: A1 – Non-combustible Support method: Dales Monocoque Support System Architect: Space & Place Architects Architect: Gale & Snowden Architects Contractor: Kier Western Ltd Sub Contractor: Massey Cladding Solutions Ltd
Curved Aluminium Fascia and Rainscreen Panels at Terrace Mount, Bournemouth
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Bournemouth, DorsetProject Type: Mixed use – Housing, Hotels & RetailDevelopment Cost: £20mProduct: 800m Meridian Aluminium Wall CopingsCurved Aluminium FasciaSecret Fix Soffit Panels Rainscreen PanelsFinish: Syntha Pulvin RAL 9007 Matt Anthracite Grey Aluminium: QC2 Powder & Marine Specification Fire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: McAleer & RusheArchitect: White Ink ArchitectsMain Contractor: McAleer & RusheSub Contractor: Rollecate Facades Ltd
Curved Solar Shade System at Hyde Park Corner Underpass
Dales Fabrications Ltd - Aluminium Eaves Products
Dales designed & manufactured curved aluminium solar shading units installed above digital advertising screens positioned over each side of the Hyde Park Corner underpass near Knightsbridge.
The 260mm Shadex elliptical aluminium blade extrusions were rotated 45° and then curved to multiple radii horizontally before being manufactured into cassettes. The complete structure covers an area 15 by 13 metres with the cassettes bolted into cantilevered structural steels.
Gary Newton, Director for Outdoor Plus, providers of the digital screens commented that the curved solar shades:
“..certainly do finish it off to a very high specification adding to the overall high-quality aesthetic appearance”
Dove Gutter at Village Hotel, Maidstone
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Maidstone, KentProject Type: HotelProduct: Dales Dove Gutter75mm Square Contemporary Rainwater PipeArchitect: D.L.A. ArchitectureSub Contractor: Hills Electrical & Mechanical
Elliptical Fascia with THX Soffit Panel at Empress Heights, Southampton
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Southampton City CentreProject Type: HousingDevelopment Cost: £20mProduct: Complete Aluminium Eaves SystemElliptical Fascia with THX Soffit Panels100mm Round Contemporary Rainwater PipesFinish: Syntha Pulvin RAL 7012 Matt Basalt Grey: Marine SpecificationFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Crest Nicholson PlcArchitect: HNW ArchitectMain Contractor: Crest Nicholson PlcSub Contractor: Roweaver Developments Ltd
Faceted Verge Raking Soffit at Bremont Watches HQ
Dales Fabrications Ltd - Aluminium Eaves Products
Project type: Commercial Location: Bremont Watches Headquarters, Sheephouse Farm, Oxfordshire, RG9 4JF Product: Highline Gutter Finish: Syntha Pulvin RAL 9006 Matt White Aluminium Product: Meridian Coping System Finish: Syntha Pulvin RAL 9006 Matt White Aluminium Product: Faceted Verge Raking Soffit Finish: Syntha Pulvin RAL 9006 Matt White Aluminium Fire Rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018) Client: Bremont Watches Architect: Spratley & Partners Contractor: A&H Construction Sub Contractor: Vertec Roofing & Cladding Ltd
Fascia SFP Soffit at Green Park, Reading
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Green Park, Reading, BerkshireProject Type: HousingProduct: Raking Fascia with Secret Fix Panel SoffitFinish: Syntha Pulvin RAL 7015 Matt Slate GreyProduct: Meridian CopingsFinish: Syntha Pulvin RAL 9003 Matt Signal WhiteFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Berkeley HomesArchitects: Broadway MalyanMain Contractor: St Edwards Homes Ltd
Fascia Soffit System and Contemporary Diameter Rainwater Pipes at Justice Court, Norfolk
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Cromer, NorfolkProject Type: Retirement HousingDevelopment Cost: £12mProduct: Stone Corbel Profile Fascia Soffit SystemFinish: Powdertech Corby: Sandstone Product: 75mm Contemporary Round Rainwater PipesFinish: Syntha Pulvin RAL 9011 Satin Client: McCarthy & Stone Retirement HomesArchitects: FB Architecture LtdMain Contractor: McCarthy & StoneSub Contractor: Roweaver Developments Ltd
Hidden Aluminium Gutter at Marriott Courtyard Sandy Park Hotel
Dales Fabrications Ltd - Aluminium Eaves Products
Project type: Hotel Location: Marriott Courtyard Sandy Park Hotel, Sandy Park Way, Exeter, EX2 7NN Project Cost: £35mProduct: Complete Eaves System Including: Meridian Coping System, Fascia Soffit, Hidden Aluminium Gutter Finish: Syntha Pulvin RAL 7016 Anthracite Grey Fire Rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018) Support method: Monocoque Support System Architect: Kensington Taylor Architects Contractor: DNA Intergrated Construction Sub Contractor: T.A. Colbourne Projects
Meridian Coping at Ashton Interchange
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Ashton Interchange, Ashton-under Lyne, OL6 6DP Project Type: Transport Development Cost: £32.7mProducts: Meridian Coping, Stepped Fascia, Kwikfix Plank SoffitFinish: RAL 9003 Matt Signal White RAL 8019 Matt Grey Brown Client: Transport for Greater Manchester Architect: Austin Smith Lord Main Contractor: Vinci Construction Ltd Sub Contractor: Stafford Rainwater Systems Ltd
Meridian Coping at Skelton Lakes
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Skelton Lakes Motorway Services, Leeds Project Type: Retail, Infrastructure, Leisure, Mixed-use Development Cost: £60m Products: Meridian Coping, Fascia Soffit, Privacy Screens, Rainscreen Cladding Finish: RAL 7014 Graphite Grey Client: Extra MSA Group Architect: Architecture 519 Main Contractor: Morgan Sindall Group PLC Sub Contractor: Cawston Roofing Ltd
Meridian Wall Coping and DF Rainscreen Panels at Waterford Place, Wiltshire
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Chippenham, WiltshireProject Type: Retirement HousingDevelopment Cost: £10mProduct: Meridian Wall CopingDF Rainscreen PanelsWindow SurroundsFinish: Syntha Pulvin RAL 7036 Matt Platinum GreyFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: McCarthy & Stone Retirement HomesArchitects: HGP LtdMain Contractor: McCarthy & StoneSub Contractor: Stafford Rainwater Systems Ltd
Meridian Wall Copings at Admiral's Quay, Southampton
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Southampton City Centre, HampshireProject Type: HousingProduct: Meridian Wall CopingsFinish: Syntha Pulvin RAL 7016 Matt Anthracite Grey: Marine SpecificationFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Main Contractor: Bouygues UK
New Spalding-Micro Aluminium Rainscreen System Installed on Voco St John's Hotel Refurbishment
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Solihull, West Midlands
Project Type: Hotel, Leisure
Product: Spalding-Micropanel
Material: Solid Sheet Aluminium 1050 AlloyFinish: Syntha Pulvin Architectural Polyester Powder Coating System in RAL 8002 Matt, RAL 8004 Matt, RAL 8012 Matt and RAL 8016 Matt
Other products: System Flashings, Weatherstruck Coping, Window Surround System (inc. Jamb, Head flashing & Cill flashing inc. ventilation) in Syntha Pulvin RAL 7016 Matt, Column-Casings Syntha Pulvin RAL 7001 Matt
Support system: Helping Hand Bracket & Rails
Architects: Nixon Development Consultants
Contractor: T. N. V. Construction Ltd
Sub Contractor: G. F. S. Supplies Ltd
Question of Scale: 400mm Elliptical Blade with 6m Span
Dales Fabrications Ltd - Aluminium Eaves Products
The steel beams are 1000mm deep: The elliptical aluminium solar shade blades are 400mm and the blades span up to 5700mm. The exit door on the bottom left illustrates the scale of the installation. Replacement solar shade system designed and manufactured by Dales Fabrications Limited and installed by Roweaver Developments Ltd
Rainscreen Cladding at Lyons Place, Westminster
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Lyons Place, Westminster, London NW8 8NLProject Type: Mixed Use Development Cost: £36m Products: S-Canopy SFX Soffit Cladding, SFX Rainscreen Vertical Cladding, SFX Soffit Cladding, SFX Support System, Circular Column Casings Finish: S-Canopy, Soffit & Rainscreen: Syntha Pulvin RAL 9002 Matt Grey WhiteColumn Casing: Syntha Pulvin RAL 8080 Matt Metallic Bronze Fire rating: A2 s1, d0 Non-combustible(Reaction to Fire EN BS 13501-1:2018). Client: Almacantar Ltd Architect: Farrells Main Contractor: Galliford Try Sub Contractor: CCS Facades
Rainscreen Cladding at Spreytonway & Moberly House
Dales Fabrications Ltd - Aluminium Eaves Products
Project type: Student Accommodation Location: Spreytonway & Moberly House, St Germans Road, Exeter, EX4 6TJ Project Cost: £41m Product: Meridian Coping System Finish: Syntha Pulvin RAL 7016 Anthracite Grey Fire Rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018) Product: Rainscreen Cladding (Dales DF-System Panels) Finish: Powdertech Corby Peat Fire (Corten) Fire Rating:A2-s1, d0 (EN BS 13501-1). Architect: Willmore Iles Architects Contractor: Vinci Construction UK Ltd Sub Contractor: Longworth Building Services Ltd
Rainscreen Panels with Relief Motif at Great Peter Street, Westminster
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Westminster, LondonProject Type: Housing & Retail unitDevelopment Cost: £7mProduct: Rainscreen Panels with Relief MotifMeridian Wall CopingsVertical KwikFix CladdingKwikFix Soffit Planks to Balconies & Winter GardensFinish: IGP Dura XAL 4201 Style 26 MetallicClient: Taylor Wimpey Central LondonArchitect: Darling AssociatesMain Contractor: McAleer & Rushe LtdSub Contractor: KTD Facades Ltd
Savoy cinema, Grantham, Lincolnshire
Dales Fabrications Ltd - Aluminium Eaves Products
Project type: CinemaLocation: St Catherine’s Road, Grantham, LincolnshireProduct: Shadex 150 Brise Soleil Horizontal (First Fix Brackets off Curtain Walling)Finish: Syntha Pulvin RAL 7046 Matt Telegrau 2Fire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Architect: N. B. D. A.Contractor: G. F. TomlinsonSub Contractor: Optimus Architectural Ltd
Shadex 100 Brise Soleil at Harrow Business Centre
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Harrow Business Centre Project: CommercialProduct: Shadex 100 Brise Soleil, 700mm projection Finish: Syntha Pulvin RAL 7046 Matt Telegrau 2 Fire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018) Support method: First Fix Brackets & Isol8 Chucks: Curtain-walling mullions Architect: KDS Associates Ltd Contractor: Brennan Group Sub Contractor: HKL Specialists Limited
Shadex 100 Brise Soleil at McDonalds, Ilkeston
Dales Fabrications Ltd - Aluminium Eaves Products
Project type: RestaurantLocation: Rutland Street, Ilkeston, DerbyshireProduct: Shadex 100 Brise Soleil Horizontal Support method: First Fix Brackets: Through CladdingFirst Fix Brackets: Curtain-walling MullionsFirst Fix Brackets: Blockwork, Before RenderFinish: Syntha Pulvin RAL 5012 Matt Light BlueFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Architect: Peart Bradley ArchitectsContractor: Coxmoor Projects LtdSub Contractor: R. & J. Projects Ltd
Shadex 150 Brise Soleil Horizontal (First Fix Brackets) at The Wing Memorial
Dales Fabrications Ltd - Aluminium Eaves Products
Location: Folkestone, KentProject Type: Educational & Historial monumentDevelopment Cost: Educational & Historial monument, £3.5mProduct: Shadex 150 Brise Soleil Horizontal (First Fix Brackets)Finish: Syntha Pulvin RAL 7040 Matt Window Grey: Marine SpecificationFire rating: A2 s1, d0 Non-combustible (Reaction to Fire EN BS 13501-1:2018)Client: Battle of Britain Memorial TrustArchitect: Godden Allen LawnSub Contractor: John Nason Fascia, Soffit & Guttering
