Coopers Fire Ltd

Application for Fire and Smoke Curtains and the Coopers Fire Product Range Available

Certificate number FSB 411.04.

Coopers Fire offer a standard range of fire curtains and smoke curtains tested to BS EN and UL standards. Our range branches into vertical fire and smoke curtain products (FireMaster and SmokeStop), horizontal fire curtain products (FireMaster Horizontal), multi-sided fire and smoke curtain products (FireMaster Concertina) and angled fire curtain products. Coopers can of course also design a bespoke product where required.

From architects to homeowners, Coopers domestic fire curtain barriers provide you with the means to help create modern, open plan living environments compliant with stringent fire regulations without compromising design. Sympathetic to interior aesthetics, the domestic fire curtain barrier will remain hidden until deployed and is used to replace non-loadbearing walls, fire doors and un-insulated glazing. Increasingly specified by designers as an integral component for facilitating open plan environments, Coopers fire curtains are the modern alternative to heavy and cumbersome fire doors and is an aesthetically pleasing replacement for traditional, industrial looking shutters.

The FireMaster® active fire curtain barrier is a vertical fire curtain barrier compliant to BS, EN, AS and GB standards and in accordance with BS 8524-1:2013 and BS EN 1634-1 and 1634-3 standards. Developed to work with all building types, including domestic houses, the FireMaster® active fire curtain barrier is supplied with the Coopers Total Gravity Fail Safe (TGFS) system and features variable speed, controlled descent, limits radiation, smoke leakage, emergency egress and side channels. Available in unlimited widths and drops up to 8 meters and with fixing options to suit all types of ceiling configurations, the FireMaster® active fire curtain barrier can be integrated with both solid and suspended ceilings and will remain hidden within the ceiling until deployed.

Bespoke to each project, the FireMaster Concertina 'open' and 'closed' fire curtains are available in shapes, such as curves and L shaped, ciruclar and square, and available in any width with a maximum drop of 8 metres (5 metre drop if 240 minute integrity is required). Developed by Coopers to protect all building types, the FireMaster Concertina can be applied to atria, escalators, openings in walls, stairs and lobbies and cross corridor separation and will remain hidden within the ceiling until deployed. The FireMaster Concertina fire curtain is our unique folded vertical fire curtain barrier compliant to EN, AS, and Independently Third Party Accredited to protect from fire for 240 minutes in accordance with PAS 121 and BS and BS EN.

The FireMaster NVS™ Horizontal fire curtain can be manufactured in a number of standard sizes to a maximum length of 14 metres with widths up to 7.5 metres and is supplied with integrity and radiation, variable speeds, side channels and controlled closure. Tensioned between rollers mounted at either end of the void opening, the FireMaster NVS horizontal fire curtain has been developed to remain hidden within the ceiling or floor using the Coopers 'No Visual Supports' (NVS) system, closing only when activated by a fire alarm. Coopers FireMaster NVS Horizontal has Independent Third Party Certification horizontal fire curtain compliant with PAS 121* to BS EN*, AS* to protect from fire for 120 minutes.

Available in widths up to 20 metres with a drop of 8 metres, the FireMaster Plus² is supplied with the Coopers Total Gravity Fail Safe system (TGFS), insulation zone, variable speeds, side channels, smoke leakage, emergency egress and controlled descent. With fixing options to suit all types of ceiling configurations, the FireMaster Plus² fire curtain can be integrated with both solid and suspended ceilings and will remain hidden within the ceiling until deployed. The FireMaster Plus² fire curtain barrier is a vertical fire curtain barrier that is compliant to BS EN, AS, Independently Third Party Accredited and approved in accordance with BS 8524-1:2013 to resist fire for 180 minutes whilst providing radiation of EW90 (90 minutes).

The main purpose of the lift and staircase lobby is to prevent the spread of fire and smoke from an accommodation floor to other levels via penetrations. Where lifts are sent to their safe level in the event of an alarm, the simplest and most effective way of overcoming the need for a lobby is by the installation of a fire curtain with smoke control in front of the lift door on all floors except the escape level. Thus providing fire resistance and smoke containment in one.

SmokeStop evacU8 active 'WALKTHRU' smoke curtain barrier unique overlapping panel system provides unlimited widths with a maximum drop of 6.7 metres. With fixing options to suit all types of ceiling configurations, the SmokeStop evacU8 active “WALKTHRU” can be integrated with both solid and suspended ceilings and will remain hidden within the ceiling until deployed. Coopers SmokeStop evacU8 active “WALKTHRU” smoke curtain barrier is a vertical deploying smoke curtain that allows for egress. Compliant to BS EN and ISO to control smoke for 150 minutes integrity.

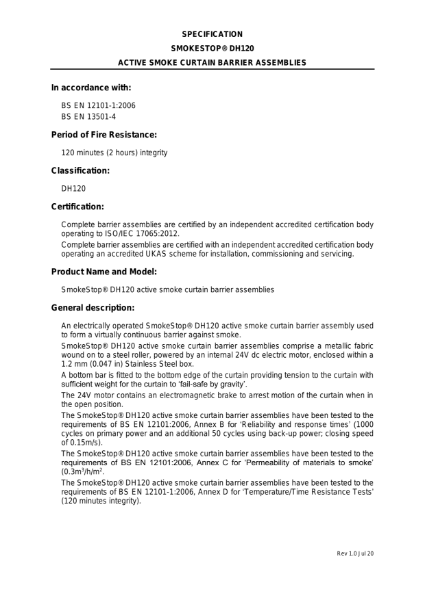

SmokeStop™ smoke curtain barrier is supplied as standard with Coopers’ Total Gravity Fail Safe (TGFS) system, variable speed, integrity, warning systems and controlled descent the SmokeStop™ smoke curtain barrier is available in a number of standard sizes, but can also be manufactured to meet any width requirement to a maximum drop of 12 metres. SmokeStop™ smoke curtain can be supplied as a vertical smoke curtain or an upside down system and is compliant to BS 7346-3 and BS 476-20 to control smoke for up to 30 minutes. Developed and manufactured by Coopers, the SmokeStop™ smoke curtain barrier is approved to provide compartmentation and to protect escalators and atria in any standard commercial building from smoke migration.
