ARC Cavity Stop Sock
ARC Building Solutions Limited
ARC Cavity Stop Sock restricts the spread of smoke and flames within the cavity of external masonry walls. It is ideally suited for providing a cavity barrier within the external wall cavity, in line with a separating wall or floor as specified in Approved Document B, and for closing the cavity at eaves level.
» Up to 4 hours fire integrity
» Horizontal and vertical options
» Specified in terraced, semi-detached, apartments and major projects
» Meets requirements of Robust Detail Part E and Approved Document B
» Maximum cavity width available: 300mm
» Easily installed with compression fit; no mechanical fix is required
» Third-party certificated by Certifire

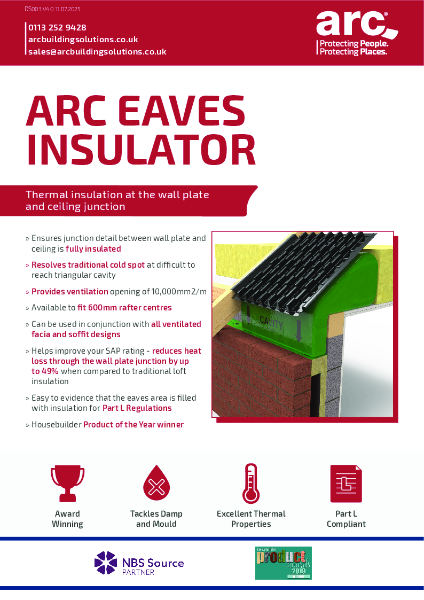

ARC Eaves Insulator
ARC Building Solutions Limited
ARC's award-winning Eaves Insulator ensures the junction detail between the wall plate and ceiling is fully insulated, a traditionally difficult area to insulate correctly on site.
Minimises cold bridging
Compatible with ventilation openings of 10,000mm2/m and 25,000mm2/m. Can be used in conjunction with all ventilated facia and soffit designs.
ARC Contract Closer
ARC Building Solutions Limited
ARC Contract-Closer closes the cavity around window and door openings. The rigid PVCu
profile is insulated with extruded polystyrene insulation (XPS) offering excellent thermal
properties. The Contract-Closer helps prevent moisture, mould and staining from around
windows and doors.
ARC Smart-Closer
ARC Building Solutions Limited
ARC Eco-Closer
ARC Building Solutions Limited
The ARC Eco-Closer is designed to close off the cavity around window and door reveals without the need for a return block and where a fire rating of up to one hour is required. It prevents cold bridging and eliminates moisture, mould and staining from around windows and doors. The 2.4m lengths are manufactured from a rigid PVCu profile that is insulated with non-combustible rockfibre mineral wool which provides fire, thermal and acoustic properties as well as being ODP and GWP zero rated.
Closes off cavities around window and door reveals
Available to suit cavity widths from 50 to 150mm
Supplied in 2.4m lengths
Prevents cold bridging
Insulated with non-combustible rockfibre mineral wool
ARC Rockfibre Insulated DPC
ARC Building Solutions Limited
ARC Rockfibre Insulated DPC is a fire rated cavity closer designed to close the cavity around
window and door reveals in conjunction with a return block, fitting between the return
block and inner edge of the outer skin of brickwork. The rockfibre insulation will help
prevent cold bridging and eliminate moisture, mould and staining from around windows
and doors, while the DPC is embossed to assist mortar adhesion.
ARC Flexi-Closer
ARC Building Solutions Limited
ARC Curtain Wall Barrier
ARC Building Solutions Limited
ARC Curtain Wall Barrier is a cavity fire barrier
for use behind curtain wall cladding
» Up to two hours fire integrity
» Foil faced to provide a smoke barrier
» Cut to size on site or factory finished
» Available to suit cavity widths up to
300mm
ARC Party Wall DPC
ARC Building Solutions Limited
The ARC Fire and Acoustic Party Wall DPC is manufactured from lengths of rockfibre mineral wool bonded to a polyethylene DPC. It is designed to enable the closing of an external cavity both vertically at the junction with a party wall and horizontally at separating floor levels, where building regulations require the use of a mineral wool closer for acoustic insulation purposes. The ARC Party Wall DPC also restricts the spread of flames along the cavity with a four hour fire integrity as tested by Warrington Fire Research.
ARC Soffit Slab
ARC Building Solutions Limited
ARC Soffit Slab provides fire stopping
within the soffit
» Provides fire stopping within the soffit at
the party wall junction
» Excellent thermal and acoustic properties
» One size fits most roof pitches and soffit
dimensions
» Manufactured from foil faced mineral
wool
ISO 45001 Occupational Health & Safety Management Certificate
ARC Building Solutions Limited
ISO 14001 Environmental Management Certificate
ARC Building Solutions Limited
ARC U-Barrier
ARC Building Solutions Limited
ARC Spandrel Barrier seals the top of the party wall cavity, allowing a zero U-value to be achieved when used in conjunction with ARC T-Barrier vertically. Spandrel Barrier is compressed between the top of the party wall blockwork and underside of the spandrel panel, creating a fire and thermal break.
Enhances fire protection at the junction between the spandrel panel and roof
Easy to install before the spandrel panel is fitted
Use in conjunction with ARC Spandrel Barrier to provide complete fire stopping around the spandrel panel
Complies with building regulations and NHBC 7.2.16
ARC Fire Stop Strip
ARC Building Solutions Limited
ARC Fire Stop Strip offers a fire rated void filler
for masonry construction
» Up to four hours fire integrity
» Ideal for closing voids at the top of
masonry walls
» Suitable for both vertical and horizontal
applications
» Excellent acoustic properties
» Robust Detail compliant
ARC Fire Stop Slab
ARC Building Solutions Limited
ARC Fire Stop Slab provides a cavity fire barrier
for masonry construction
» Up to two hours fire integrity
» Foil faced to provide a smoke barrier
» Suitable for horizontal or vertical
applications
» Cut to size on site or factory finished
» Available to suit cavity widths up to
300mm
ARC TCB
ARC Building Solutions Limited
ARC TCBs have been designed to restrict the spread of smoke and flames within external timber frame walls, and to further minimise the effect of flanking noise pollution at wall junctions. They are produced from low resin, non-combustible rockfibre mineral wool and sleeved in polythene for on-site protection.
ARC T-Barrier Timber Frame
ARC Building Solutions Limited
The ARC T-Barrier® achieves a zero U-value at the party wall junction by sealing the party wall cavity. This minimises the effect of thermal bypass as well as reducing flanking noise in the cavity. The ARC T-Barrier for Timber Frame provides a 1 hour fire integrity at the party wall junction and meets the Robust Detail's requirement for a barrier where a separating party wall meets an external cavity wall, significantly reducing sound transmission along the cavity.
Provides effective edge seal to the party wall cavity
Zero U value at the party wall junction can be achieved
Reduces flanking noise
Minimises thermal bypass
Easy to install
ARC Spandrel Barrier
ARC Building Solutions Limited
ARC Spandrel Barrier seals the top of the party wall cavity, allowing a zero U-value to be achieved when used in conjunction with ARC T-Barrier vertically. Spandrel Barrier is compressed between the top of the party wall blockwork and underside of the spandrel panel, creating a fire and thermal break.
Up to four hours fire integrity around edge of party wall
Up to one hour fire integrity between the spandrel panel and blockwork
Use in conjunction with ARC T-Barrier vertically to create an effective edge seal around the party wall cavity
Zero U-value can be achieved
ISO 9001 Quality Management Certificate
ARC Building Solutions Limited
ARC T-Barrier Pitched Roof
ARC Building Solutions Limited
ARC T-Barrier Pitched Roof provides fire stopping between the party wall and roof covering
» Provides fire stopping at the head of a
block party wall
» Complies with NHBC 2017 7.2.16
» Held in position by compression fit within
the party wall cavity
» Sits in compression directly under the
roofing membrane
ARC Rainscreen Barrier
ARC Building Solutions Limited
ARC Rainscreen Barrier is a cavity fire barrier for
rainscreen cladding applications
» Up to two hours fire integrity
» Provides a 25mm airspace behind
rainscreen cladding
» Foil faced to provide a smoke barrier
» Suitable for horizontal applications
» Available to suit cavity widths from
75mm to 300mm

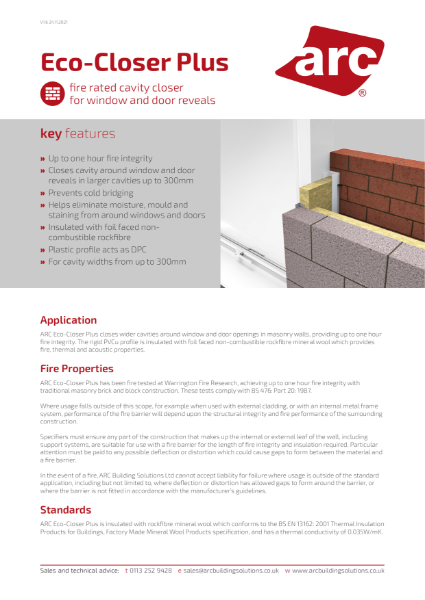

ARC Eco-Closer-Plus
ARC Building Solutions Limited
The ARC Eco-Closer Plus is designed to close off the cavity around window and door reveals where larger cavity widths exist, up to 300mm. It prevents cold bridging and eliminates moisture, mould and staining from around windows and doors. The 2.4m lengths are manufactured from a rigid PVCu profile that is insulated with non-combustible rockfibre mineral wool which provides fire, thermal and acoustic properties as well as being ODP and GWP zero rated.
Closes off cavities around window and door reveals. Available to suit cavity widths up to 300mm. Supplied in 2.4m lengths. Prevents cold bridging
Insulated with non-combustible rockfibre mineral wool.
ARC T-Barrier Masonry
ARC Building Solutions Limited
The ARC T-Barrier® achieves a zero U-value at the party wall junction by sealing the party wall cavity. This minimises the effect of thermal bypass as well as reducing flanking noise in the cavity. The ARC T-Barrier provides a 4 hour fire integrity at the party wall junction and meets the Robust Detail's requirement for a barrier where a separating party wall meets an external cavity wall, significantly reducing sound transmission along the cavity.
Provides effective edge seal to the party wall cavity
Zero U value at the party wall junction can be achieved
Reduces flanking noise
Minimises thermal bypass
Easy to install
