Underfloor Heating Cable Systems
Underfloor Heating Cable Systems

Last verified by manufacturer over a year ago

Heat Mat Ltd

In-screed 6 mm heating cable

Last verified by manufacturer over a year ago

Heat Mat Ltd

Universal underfloor 3 mm heating cable

Summary
Range of underfloor heating cable systems.
Range of underfloor heating cable systems.
Application

Universal underfloor 3 mm heating cable:

  • Suited to small or complicated areas, where heating mats are difficult to install, and conservatories.

In-screed 6 mm heating cable:

  • Suitable for any situation where a new screed floor is to be laid
  • Suitable for large areas such as warehouses or sports halls.

Universal underfloor 3 mm heating cable:

  • Suited to small or complicated areas, where heating mats are difficult to install, and conservatories.

In-screed 6 mm heating cable:

  • Suitable for any situation where a new screed floor is to be laid
  • Suitable for large areas such as warehouses or sports halls.
Description

Underfloor heating system which includes heating cable, thermostat, sensors and thermal insulation board plus accessories.


System includes:

  • Underfloor heating cable.
  • Decoupling membrane for holding the cable in place.
  • A range of thermostats are available including touchscreen, wireless and simple digital controllers.
  • Thermal insulation board (600 x 1200 mm): Consists of a rigid foam core (high density extruded polystyrene) and a cementitious hard coat.


Universal underfloor 3 mm heating cable:

A flexible easy-to-fit 3 mm heating cable designed to provide energy efficient floor warming or a full heating system.

  • When installed at 200 W/m² this system will provide full room heating, even in high heat loss areas e.g. conservatories.
  • When installed at 160 W/m² this system is perfect for floor warming or room heating in standard rooms.
  • Suitable for use under tile and stone.
  • Low build height.
  • The heat output can be altered for individual requirements – outputs from 80–230 W/m² are possible.
  • Quicker to install than some alternative systems.


In-screed 6 mm heating cable:

The 6 mm in-screed heating cable is a robust and cost effective cable designed for new build and major renovation projects, where a 65 mm screed will be laid. The indoor cable will provide energy efficient room heating and floor warming beneath nearly any floor covering. 6 mm cables are fast to install and adds no build height to the construction.

  • Fast to install and cost effective.
  • This cable is only suitable for indoor use. Not UV resistant or suitable for outdoor use.
  • Three-phase systems and bespoke sizes of heating cable are available where required.
  • Alter the distance between heating cables to alter the output.
  • Dual conductor cable design with one connection lead.
  • Supplied with a lifetime warranty.
  • Building Regulations (E&W) Approved Document L compliant.
  • Compliant with 18th Edition IEE Wiring Regulations, EN 60335-2-96, EN 60800 M1.
  • Made in Denmark in BEAB Approved Factory.


Decoupling membrane:

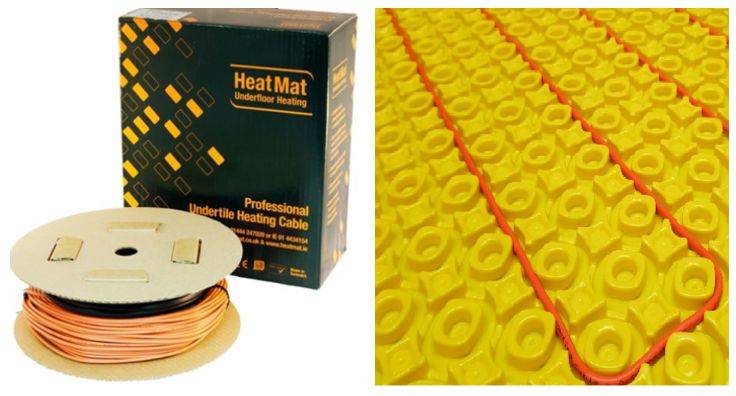

Anti-fracture membrane for use with the 3 mm heating cable, usually fixed to the sub-floor with a thin-bed, water-based adhesive. The membrane acts as a holder for the cable, and is especially suited for use under tiles.

The cable will slot into place between the studs, allowing cables to be quickly and evenly spaced where the heat is required most in the room. Heating cables are usually fitted at an output of approximately 150 W/m² by alternating a three stud and five stud spacing on the membrane to provide approximately 11 runs of heating cable per linear metre - consult manufacturer for details.

  • Quick to install with no need for additional fixing materials.
  • The membrane protects the cables during the installation of floor tiles and during trowel work.
  • The output can be altered to ensure heat is concentrated in areas that need it the most.
  • Decoupling membrane is available in 15 m² or 5 m² rolls, and 1 m² panels.
  • An adhesive should be used to fix the membrane to the floor base - consult manufacturer for details.

Underfloor heating system which includes heating cable, thermostat, sensors and thermal insulation board plus accessories.


System includes:

  • Underfloor heating cable.
  • Decoupling membrane for holding the cable in place.
  • A range of thermostats are available including touchscreen, wireless and simple digital controllers.
  • Thermal insulation board (600 x 1200 mm): Consists of a rigid foam core (high density extruded polystyrene) and a cementitious hard coat.


Universal underfloor 3 mm heating cable:

A flexible easy-to-fit 3 mm heating cable designed to provide energy efficient floor warming or a full heating system.

  • When installed at 200 W/m² this system will provide full room heating, even in high heat loss areas e.g. conservatories.
  • When installed at 160 W/m² this system is perfect for floor warming or room heating in standard rooms.
  • Suitable for use under tile and stone.
  • Low build height.
  • The heat output can be altered for individual requirements – outputs from 80–230 W/m² are possible.
  • Quicker to install than some alternative systems.


In-screed 6 mm heating cable:

The 6 mm in-screed heating cable is a robust and cost effective cable designed for new build and major renovation projects, where a 65 mm screed will be laid. The indoor cable will provide energy efficient room heating and floor warming beneath nearly any floor covering. 6 mm cables are fast to install and adds no build height to the construction.

  • Fast to install and cost effective.
  • This cable is only suitable for indoor use. Not UV resistant or suitable for outdoor use.
  • Three-phase systems and bespoke sizes of heating cable are available where required.
  • Alter the distance between heating cables to alter the output.
  • Dual conductor cable design with one connection lead.
  • Supplied with a lifetime warranty.
  • Building Regulations (E&W) Approved Document L compliant.
  • Compliant with 18th Edition IEE Wiring Regulations, EN 60335-2-96, EN 60800 M1.
  • Made in Denmark in BEAB Approved Factory.


Decoupling membrane:

Anti-fracture membrane for use with the 3 mm heating cable, usually fixed to the sub-floor with a thin-bed, water-based adhesive. The membrane acts as a holder for the cable, and is especially suited for use under tiles.

The cable will slot into place between the studs, allowing cables to be quickly and evenly spaced where the heat is required most in the room. Heating cables are usually fitted at an output of approximately 150 W/m² by alternating a three stud and five stud spacing on the membrane to provide approximately 11 runs of heating cable per linear metre - consult manufacturer for details.

  • Quick to install with no need for additional fixing materials.
  • The membrane protects the cables during the installation of floor tiles and during trowel work.
  • The output can be altered to ensure heat is concentrated in areas that need it the most.
  • Decoupling membrane is available in 15 m² or 5 m² rolls, and 1 m² panels.
  • An adhesive should be used to fix the membrane to the floor base - consult manufacturer for details.

Specification

Rating
22 W/m.
21 W/m.

Additional properties

Product Reference
Underfloor Heating Cable System
Underfloor Heating Cable System
Heating element
In-screed 6 mm heating cable.
3 mm underfloor heating cable.
Decoupling membrane
Not required., 1 m² panel., 5 m² roll., 15 m² roll.
Not required., 1 m² panel., 5 m² roll., 15 m² roll.
Power requirement
160 W/m²., 200 W/m²., Submit proposals.
160 W/m²., 200 W/m²., Submit proposals.
Thermostat
Colour touchscreen thermostat., Manual thermostat., Programmable thermostat., Wi-Fi touchscreen thermostat.
Colour touchscreen thermostat., Manual thermostat., Programmable thermostat., Wi-Fi touchscreen thermostat.
Colour/ Finish
Special order.
Special order.
Thermal insulation board
Not required., Required.
Not required., Required.
Thickness
Not applicable., 6 mm., 10 mm., 12.5 mm., 20 mm., 30 mm., 40 mm., 50 mm., 60 mm., 70 mm., Submit proposals.
Not applicable., 6 mm., 10 mm., 12.5 mm., 20 mm., 30 mm., 40 mm., 50 mm., 60 mm., 70 mm., Submit proposals.
Accessories
None., 10 m roll of sealing tape., Self-levelling compound.
None., 10 m roll of sealing tape., Self-levelling compound.
NominalSupplyVoltage
230 V (±10%).
230 V (±10%).
Ingress protection (IP) rating
IPX7.
IPX7.
Output
120–3530 W.
130–2406 W.
Coverage
1.0–28.2 m² at 125 W., 0.7–20.1 m² at 175 W.
1.3–18.8 m² at 160 W., 1.1–15.0 m² at 200 W.
Cable
Coldtail lead: 2 m double insulated cable., Cable flexibility: Minimum radius 50 mm., Cable reinforcement: Fibreglass strands.
Coldtail lead: 2 m double insulated cable., Cable flexibility: Minimum radius 50 mm., Cable reinforcement: Fibreglass strands.
Wire
6 mm thickness.
6.8–7.2 mm thickness.
Insulation
Inner insulation: 0.8 mm silicon rubber (2G).
, Outer insulation: PVC (105) 90°C.
Inner insulation: 0.8 mm silicon rubber (2G).
, Outer insulation: PVC (105) 90°C.
HasProtectiveEarth
true
true
UV stabilization
Not UV resistant or suitable for outdoor use.
Confirmed UV stable by VDE Test Institute.
Fixing
Heat Fix metal bands.
Heat Fix metal bands.
