Summary
Fixed smoke curtain for limiting or channelling combustion gases in the event of a fire. The curtain forms permanent barriers and thus prevents the spread and cooling of smoke gases.
Fixed smoke curtain for limiting or channelling combustion gases in the event of a fire. The curtain forms permanent barriers and thus prevents the spread and cooling of smoke gases.
Fixed smoke curtain for limiting or channelling combustion gases in the event of a fire. The curtain forms permanent barriers and thus prevents the spread and cooling of smoke gases.
Application
Provision of smoke and heat protection for most kinds of industrial and commercial buildings.
Provision of smoke and heat protection for most kinds of industrial and commercial buildings.
Provision of smoke and heat protection for most kinds of industrial and commercial buildings.
Description

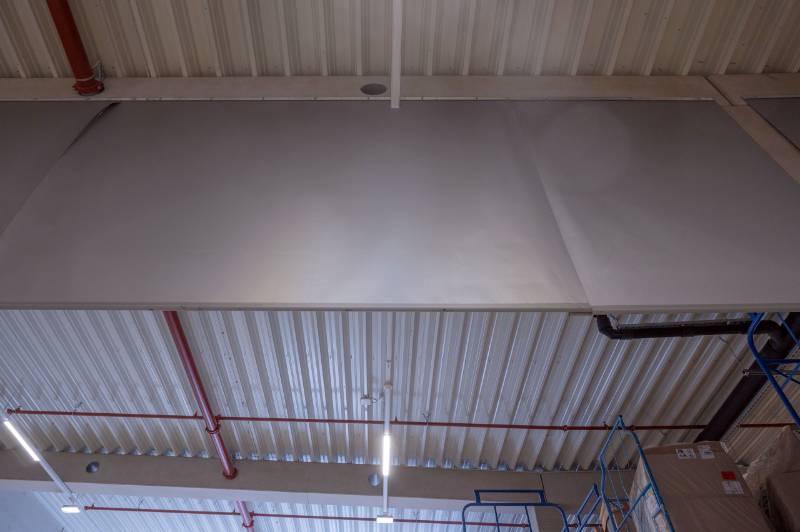

SmokeMaster SM-ST curtains consist of adjacent smoke curtains fixed together with a clamping profile. The fabric is mechanically fixed to the profiles and kept taut with a weight at the bottom.
SmokeMaster SM-ST curtains are commonly used in high industrial buildings where a permanent barrier is not inconvenient and does not interfere with production processes. They can also be used in other building types and fixed within the roof area due to its low weight.
Product Highlights:
- SmokeMaster SM-ST curtains have been tested and certified according to EN 12101-1:2005+A1:2006 and is CE marked.
- Low weight and therefore easy to attach to the building structure.
- Pre-fabricated assembly delivered with a modular design.
- Unit length: 1.0 m to an infinite length.
- Unit height: 0.5 m to 15 m.
Product Technical Information:
Versions:
The compact and lightweight SmokeMaster SM-ST can be installed into many different kinds of roofs and shapes. Due to its low weight it places an insignificant load onto the building.
The ducting of building services cables through the smoke curtain is possible without any problems. Residual openings are closed off to maintain temperature resistance, for example by means of galvanised steel sleeves for round ducting or galvanised steel angle profiles for straight ducting.
Classifications:
In accordance with EN 12101-1: Temperature / time classification: D120 / DH60 / DH120.
SmokeMaster SM-ST curtains consist of adjacent smoke curtains fixed together with a clamping profile. The fabric is mechanically fixed to the profiles and kept taut with a weight at the bottom.
SmokeMaster SM-ST curtains are commonly used in high industrial buildings where a permanent barrier is not inconvenient and does not interfere with production processes. They can also be used in other building types and fixed within the roof area due to its low weight.
Product Highlights:
- SmokeMaster SM-ST curtains have been tested and certified according to EN 12101-1:2005+A1:2006 and is CE marked.
- Low weight and therefore easy to attach to the building structure.
- Pre-fabricated assembly delivered with a modular design.
- Unit length: 1.0 m to an infinite length.
- Unit height: 0.5 m to 15 m.
Product Technical Information:
Versions:
The compact and lightweight SmokeMaster SM-ST can be installed into many different kinds of roofs and shapes. Due to its low weight it places an insignificant load onto the building.
The ducting of building services cables through the smoke curtain is possible without any problems. Residual openings are closed off to maintain temperature resistance, for example by means of galvanised steel sleeves for round ducting or galvanised steel angle profiles for straight ducting.
Classifications:
In accordance with EN 12101-1: Temperature / time classification: D120 / DH60 / DH120.
SmokeMaster SM-ST curtains consist of adjacent smoke curtains fixed together with a clamping profile. The fabric is mechanically fixed to the profiles and kept taut with a weight at the bottom.
SmokeMaster SM-ST curtains are commonly used in high industrial buildings where a permanent barrier is not inconvenient and does not interfere with production processes. They can also be used in other building types and fixed within the roof area due to its low weight.
Product Highlights:
- SmokeMaster SM-ST curtains have been tested and certified according to EN 12101-1:2005+A1:2006 and is CE marked.
- Low weight and therefore easy to attach to the building structure.
- Pre-fabricated assembly delivered with a modular design.
- Unit length: 1.0 m to an infinite length.
- Unit height: 0.5 m to 15 m.
Product Technical Information:
Versions:
The compact and lightweight SmokeMaster SM-ST can be installed into many different kinds of roofs and shapes. Due to its low weight it places an insignificant load onto the building.
The ducting of building services cables through the smoke curtain is possible without any problems. Residual openings are closed off to maintain temperature resistance, for example by means of galvanised steel sleeves for round ducting or galvanised steel angle profiles for straight ducting.
Classifications:
In accordance with EN 12101-1: Temperature / time classification: D120 / DH60 / DH120.
Material
Glass Fibre
Glass Fibre
Glass Fibre
Shape
Rectangle
Rectangle
Rectangle
Specification
Classification data
Standard
To BS EN 12101-1.
To BS EN 12101-1.
To BS EN 12101-1.
Third-party certification
EU certificate 0672-CPD-0146. General building approval (AbZ) no. 56-4211-949.
EU certificate 0672-CPD-0206. General building approval (AbZ) no. 56-4211-949.
EU certificate 0672-CPD-0207. General building approval (AbZ) no. 56-4211-949.
Classification categories
-
-
-
Standard temperature
D 120.
D 60.
D 120.
Form
Flexible, 455 g/m².
Flexible, 690 g/m².
Flexible, 690 g/m².
Sustainability data
Material
Glass Fibre
Glass Fibre
Glass Fibre
