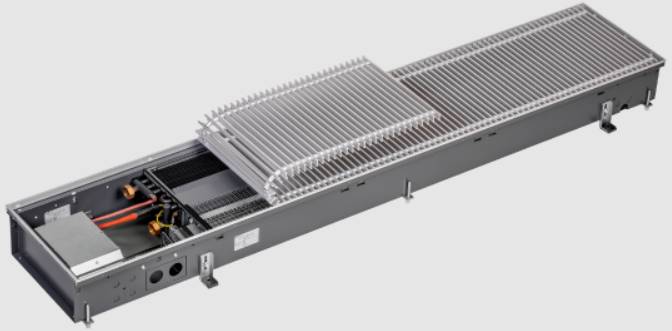

Katherm HK E
Katherm HK E
Katherm HK E

Last verified by manufacturer over a year ago

Kampmann UK Ltd.

Last verified by manufacturer over a year ago

Kampmann UK Ltd.

Last verified by manufacturer over a year ago

Kampmann UK Ltd.
Summary
Fan-assisted trench heating/cooling system with an electric heating element.
-
-
Application

Suitable for large office complexes.

-
-
Description

State-of-the-art EC tangential fans with low power consumption ensure energy-saving operation combined with low sound levels. The fixing system in the floor trench, perfected over many years, which also incorporated sound decoupling ensures that the unit can be quickly and easily removed for cleaning and maintenance. It can be cleaned simply and easily, thanks to its well thought-out design in accordance with the requirements of the Hygiene Directive VDI 6022. Electric heating with a continuously variably controllable electric heating coil is possible in addition to water-based heating and cooling with the 2-pipe Katherm HK E Version with an integrated electric heating could. Compared to a pure 2-pipe system, the room user has the option of individually determine their room climate independently of the heating or cooling system setting. The unit comes with a factory-fitted BMS interface to allow precise control of the performance.


Features and benefits:

  • Energy-saving, with flow-optimized impellers, cascaded arrangement as a continuous fan belt.
  • Easily removeable, plug and play fan.
  • Even air flow through convector.
  • Robust and whisper-quiet motor design.
  • Continuously variable control via external 0-10 V signal.
  • Unit width: 320 mm.
  • Unit height: 130 mm.
  • Unit lengths: 915, 1200, 1700, 2000, 2500, 3000 mm.
-
-
Color
Grey
-
-
Finish
Anodized
-
-
Material
Steel
-
-
Shape
Rectangle
-
-
Size
-
-
-
Length
915 mm, 1200 mm, 1700 mm, 2000 mm, 2500 mm, 3000 mm
-
-
Width
320 mm
-
-
Height
130 mm
-
-

Specification

Standards
-
-
-
Heating
To BS EN 16430.
-
-
Cooling
To BS EN 16430.
-
-
Arrangement
Fan assisted.
-
-
Mounting
Fully recessed.
-
-
Output
1960 W., 1813 W., 1551 W., 1248 W., 767 W.
-
-
Outlet grilles
Roll-up grille.
-
-

Additional properties

Model
KaControl.
-
-
Width
320 mm.
-
-
Height
130 mm.
-
-
Length
915 mm.
-
-
Grille finish
Aluminium, natural anodized.
-
-

Sustainability data

Country of product manufacture
Germany
-
-
