Summary

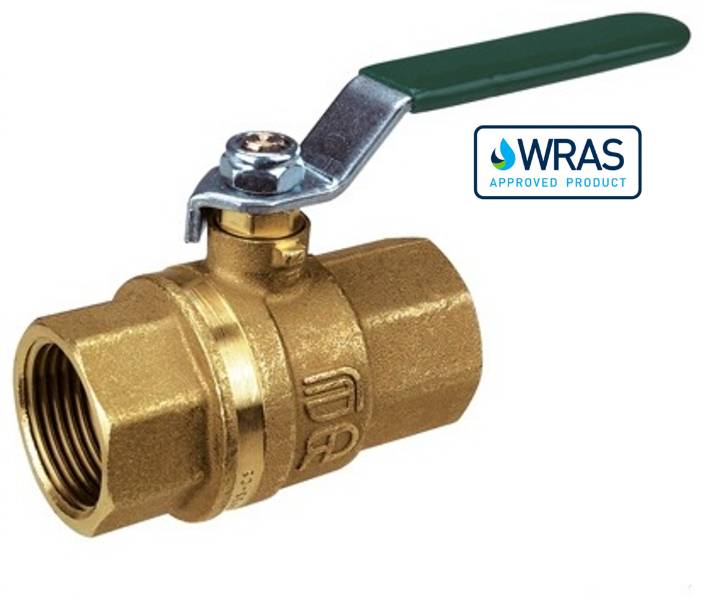

WRAS-approved DZR ball valve.
-
-
Application
Fluids. Installations where aggressive water causes dezincification in standard brass alloys and weakens the material molecular structure. Hot and chilled water applications in building services, including domestic water applications and sea water installations.
-
-
Description
WRAS-approved DZR ball valve.
Features and benefits:
- WRAS-approved DZR full bore Ball Valve
- ISO 6957 Corrosion Proof
- Temperature rating: -15° to +120°
- Maximum Working Pressure for fluids:
- ¼” – 2” PN40
- 2 ½” – 4” PN20
- 1/4″ – 4″ standard female threaded connection ISO 7/1 with alloy steel lever, extended aluminium lever, composite T-handle or lock shield.
-
-
Digital objects
-
-
Color
Gold
-
-
Finish
Brass
-
-
Material
Brass
-
-
Warranty description
18 months
-
-
SKU Code
2411V204
-
-
Specification
Classification data
Material
Body, Stem, Chromium polished Ball CW602N(Pb<2.2%). Gland CW617N. Seats high resistance virgin PTFE • Stem Packing O-ring EPDM. Lever & Self locking Fixing Screw: Zinc-plated steel.
-
-
Connections
Standard female according to UNI ISO 7/1 (UNI EN 10226).
-
-
Finish
Chrome-plated.
-
-
Additional properties
Type:
Lever.
-
-
WorkingPressure
Up to 2”: PN40 up to 20ºC, PN25 up to 70ºC, PN16 up to 100ºC. 2 1/2”-4”: PN20 up to 20ºC, PN16 up to 90ºC.
-
-
Working temperature
-15°C to 120°C.
-
-
NominalDiameter
∅8 mm.
-
-
Flowrate
6 Kv.
-
-
Handle length (mm)
85 mm.
-
-
Length
49 mm.
-
-
Sustainability data
Country of product manufacture
Italy
-
-
