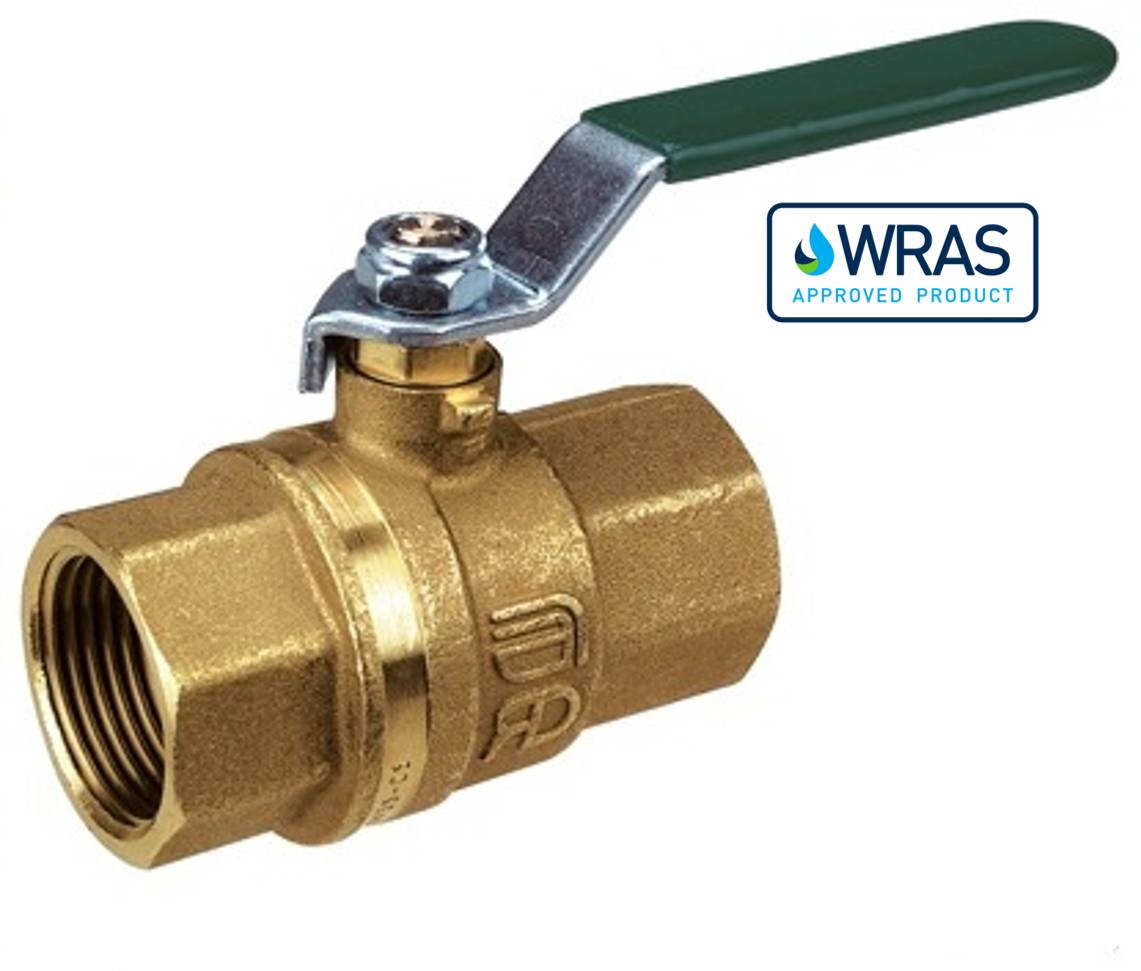

Female Threaded WRAS-Approved Series 2411V DZR Ball Valve

Name: Female Threaded WRAS-Approved Series 2411V DZR Ball Valve
Brand: FLOCONTROL LTD
SKU: dQsU7tAwSrk21MN6zJExc3

Verified by manufacturer 5 months ago

2411V202 - Lever DN 10

FLOCONTROL LTD

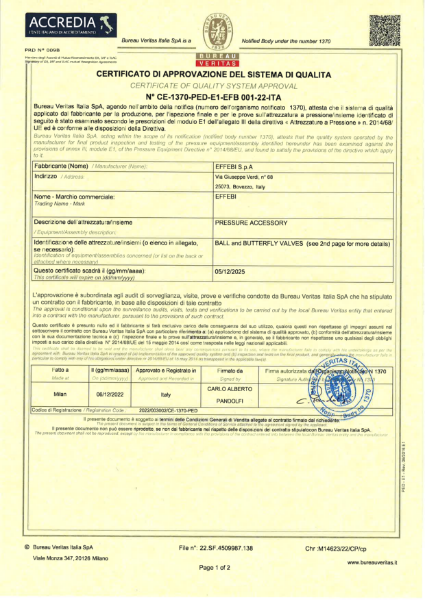

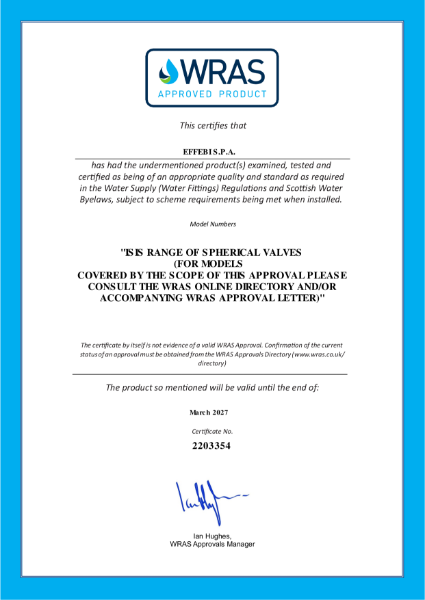

Third party certifications:

WRAS
Certificate type
Statement of compliance
Certificate type

WRAS-approved DZR ball valve.

Jump to:

BOS

+44 1282 564425 Website

Application

Fluids. Installations where aggressive water causes dezincification in standard brass alloys and weakens the material molecular structure. Hot and chilled water applications in building services, including domestic water applications and sea water installations.

Description

WRAS-approved DZR ball valve.

Features and benefits:

WRAS-approved DZR full bore Ball Valve
ISO 6957 Corrosion Proof
Temperature rating: -15° to +120°
Maximum Working Pressure for fluids:
¼” – 2” PN40
2 ½” – 4” PN20
1/4″ – 4″ standard female threaded connection ISO 7/1 with alloy steel lever, extended aluminium lever, composite T-handle or lock shield.

General information

Color	Gold
Finish	Brass Guidance for specification option: Chromium polished ball.
Material	Brass Guidance for specification option: DZR brass.
Warranty description	18 months

Uniclass	Pr_65_54_95_06 Ball valvesPrimary

Product range	FloControl range of General Valves for hydronic systems in commercial buildings

Specification data - Ball valves

Material	Body, Stem, Chromium polished Ball CW602N(Pb<2.2%). Gland CW617N. Seats high resistance virgin PTFE • Stem Packing O-ring EPDM. Lever & Self locking Fixing Screw: Zinc-plated steel.
Connections	Standard female according to UNI ISO 7/1 (UNI EN 10226).
Finish	Chrome-plated.

Type:	Lever.
WorkingPressure	Up to 2”: PN40 up to 20ºC, PN25 up to 70ºC, PN16 up to 100ºC. 2 1/2”-4”: PN20 up to 20ºC, PN16 up to 90ºC.
Working temperature	-15°C to 120°C.
NominalDiameter	∅8 mm.
Flowrate	6 Kv.
Handle length (mm)	85 mm.
Length	49 mm. Manufacturer guidance Length without handle.
