Summary
Contract plasterboard faced steel access panels for plasterboard walls or ceilings.
Contract plasterboard faced steel access panels for plasterboard walls or ceilings.
Application
Provide plasterboard faced protected openings in ceilings and walls for access to building engineering services.
Note:
These panels must be fitted prior to plastering so the metal beaded frame parts of the door and frame can be incorporated into the ceiling or wall membrane in the same way as a conventional stop bead.
Provide plasterboard faced protected openings in ceilings and walls for access to building engineering services.
Note:
These panels must be fitted prior to plastering so the metal beaded frame parts of the door and frame can be incorporated into the ceiling or wall membrane in the same way as a conventional stop bead.
Description

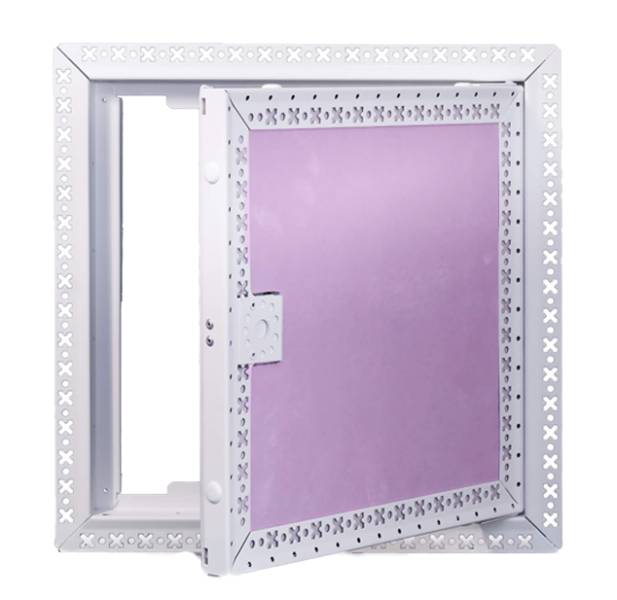

Contract range plasterboard access panels provide a protected plasterboard faced low profile access solutio for use through plasterboard walls and ceilings for access to building engineering services where space is at a premium.
Features and benefits:
- The door tray encapsulates a layer of 12.5 mm plasterboard with a simulated beaded edge which provides a key for the tape and joint or skim coat.
- The beaded frame type (SBF) has a perforated flange to key into the surrounding membrane. This is used where the surface has yet to be skimmed or tape and jointed.
- Outwardly the door face can be skimmed or tape and jointed for a minimalist aesthetic.
- Fire rated options are available.
- The narrow profile provides protected openings in ceilings and walls where space is at a premium.
- Lightweight, robust solution.
Contract range plasterboard access panels provide a protected plasterboard faced low profile access solutio for use through plasterboard walls and ceilings for access to building engineering services where space is at a premium.
Features and benefits:
- The door tray encapsulates a layer of 12.5 mm plasterboard with a simulated beaded edge which provides a key for the tape and joint or skim coat.
- The beaded frame type (SBF) has a perforated flange to key into the surrounding membrane. This is used where the surface has yet to be skimmed or tape and jointed.
- Outwardly the door face can be skimmed or tape and jointed for a minimalist aesthetic.
- Fire rated options are available.
- The narrow profile provides protected openings in ceilings and walls where space is at a premium.
- Lightweight, robust solution.
Color
White, Other
White, Other
Finish
Galvanized, Powder-coated
Galvanized, Powder-coated
Material
Steel, Plasterboard
Steel, Plasterboard
Shape
Rectangle, Square
Rectangle, Square
Length
200 mm, 300 mm, 450 mm, 550 mm, 600 mm, 900 mm, 1200 mm
200 mm, 300 mm, 450 mm, 550 mm, 600 mm, 900 mm, 1200 mm
Width
200 mm, 300 mm, 450 mm, 600 mm
200 mm, 300 mm, 450 mm, 600 mm
Warranty description
Five year
Five year
Specification
Fire performance
-
-
Fire resistance
Non fire rated.
60 minutes., 120 minutes.
Reaction to fire classification
To BS476:Part22:1987.
To BS476:Part22:1987.
Position
Ceiling mounted., Wall mounted.
Wall mounted.
Size
200 x 200 mm., 300 x 300 mm., 450 x 450 mm., 550 x 550 mm., 600 x 300 mm., 600 x 600 mm., 900 x 600 mm., 1200 x 550 mm., 1200 x 600 mm., Custom.
200 x 200 mm., 300 x 300 mm., 450 x 450 mm., 550 x 550 mm., 600 x 300 mm., 600 x 600 mm., Custom.
Frame
Beaded (SBF).
Beaded (SBF).
Panel
-
-
Material
Steel and plasterboard.
Steel and plasterboard.
Integral finish
Powder coated.
Powder coated.
Latch or lock type
Square drive operated lock with ‘SLIK’ invisible keyhole., Euro cylinder., Radial pin tumbler., Three point lock.
Square drive operated lock with ‘SLIK’ invisible keyhole., Euro cylinder., Radial pin tumbler., Three point lock.
Operation
Pivot hinge, outward opening.
Pivot hinge, outward opening.
Sustainability data
Contains Red List materials
No
No
Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
Recyclability
Recyclable
Recyclable
