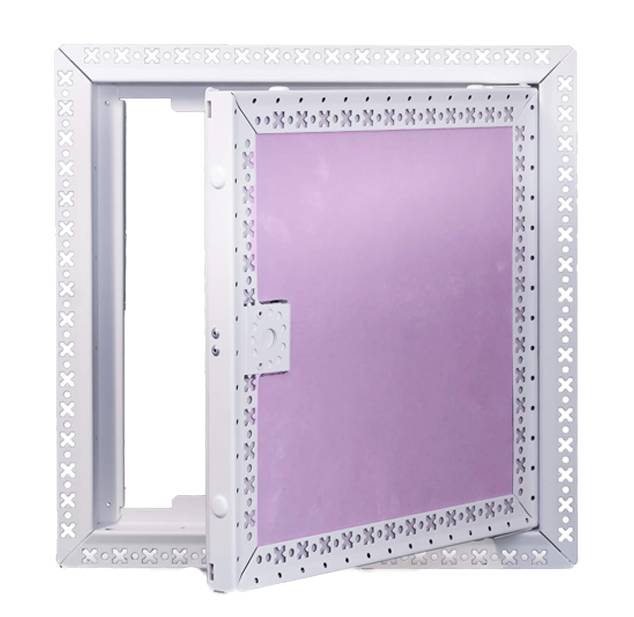

Contract Range Plasterboard Faced Access Panel

Verified by manufacturer 1 day ago

Non Fire Rated

The Access Panel Company Ltd Variant:

Contract plasterboard faced steel access panels for plasterboard walls or ceilings.

Jump to:
+44 (0)1724 853 090 Website

Application

Provide plasterboard faced protected openings in ceilings and walls for access to building engineering services.


Note:

These panels must be fitted prior to plastering so the metal beaded frame parts of the door and frame can be incorporated into the ceiling or wall membrane in the same way as a conventional stop bead.

Description

Contract range plasterboard access panels provide a protected plasterboard faced low profile access solutio for use through plasterboard walls and ceilings for access to building engineering services where space is at a premium.


Features and benefits:

  • The door tray encapsulates a layer of 12.5 mm plasterboard with a simulated beaded edge which provides a key for the tape and joint or skim coat.
  • The beaded frame type (SBF) has a perforated flange to key into the surrounding membrane. This is used where the surface has yet to be skimmed or tape and jointed.
  • Outwardly the door face can be skimmed or tape and jointed for a minimalist aesthetic.
  • Fire rated options are available.
  • The narrow profile provides protected openings in ceilings and walls where space is at a premium.
  • Lightweight, robust solution.

General information

Color

White

Other

Finish

Galvanized

Powder-coated

Material

Steel

Guidance for specification option:

Zintec steel.

Plasterboard

Guidance for specification option:

Plasterboard faced.

Shape

Rectangle

Square

Length

200 mm

300 mm

450 mm

550 mm

600 mm

Show more

Width

200 mm

300 mm

450 mm

600 mm

Warranty description

Five year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/15 Lining on timber

K10/215 Suspended ceiling system

K10/220 Proprietary suspended ceiling system

K10/245 Ceiling lining on timber

K10/25 Ceiling lining on timber

K10/30 Metal stud

K10/430 Access panels

K10/50 Suspended ceiling system on metal framing

L20/630 Hatches

Specification data - Access panels

Fire performance

-

Fire resistance

Non fire rated.

Reaction to fire classification

To BS476:Part22:1987.

Position

Ceiling mounted.

Wall mounted.

Size

200 x 200 mm.

300 x 300 mm.

450 x 450 mm.

550 x 550 mm.

600 x 300 mm.

600 x 600 mm.

900 x 600 mm.

1200 x 550 mm.

1200 x 600 mm.

Custom.

Guidance for specification option:

Bespoke sizes available, consult with manufacturer.

Frame

Beaded (SBF).

Panel

-

Material

Steel and plasterboard.

Guidance for specification option:

Formed from 1.0 and 1.2 mm Zintec electrogalvanized mild steel with a 25 mm wide frame and plasterboard face side.

Integral finish

Powder coated.

Guidance for specification option:

White, RAL 9010, 20% gloss. Can be overpainted to blend into the surrounding wall surface.

Latch or lock type

Square drive operated lock with ‘SLIK’ invisible keyhole.

Euro cylinder.

Radial pin tumbler.

Three point lock.

Operation

Pivot hinge, outward opening.

Guidance for specification option:

Using the "T" key supplied, push the SLIK invisible keyhole system aside, engage the key into the locks then open and close while supporting the door. The SLIK system springs back automatically to conceal the keyhole.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Recyclable
