Suitable for use in hospitals, laboratories and manufacturing

facilities, where a ready supply of steam exists.

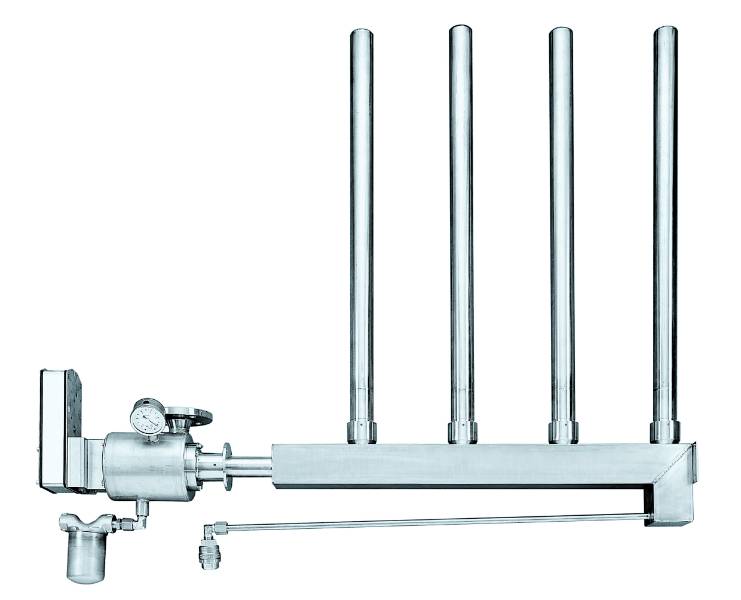

Live steam humidifier with 100% steam tight rotary valve, able to deliver 1000 kg/hour of pure, dry steam to an air handling unit or duct, using a building's existing steam network of up to 4 bar.

Features and benefits:

• Patented precision nozzles ensure condensate-free steam.
• Standardized flange connections enable simple and safe connection to a steam network.
• Rotary disk valve is completely leak proof once closed.
• Valve designed to provide 0-100% modulation, delivering very close humidity control.
• Primary and secondary condensate drain.
• Modular builds, with no need for thread sealants on site, making it easy to install and leak-free.
• Available in cast iron (GGG40) and stainless steel (AISI304), for special requirements on the steam circuit.
• Offers a choice of steam distribution pipes, depending on the required absorption distance and duct dimensions.
