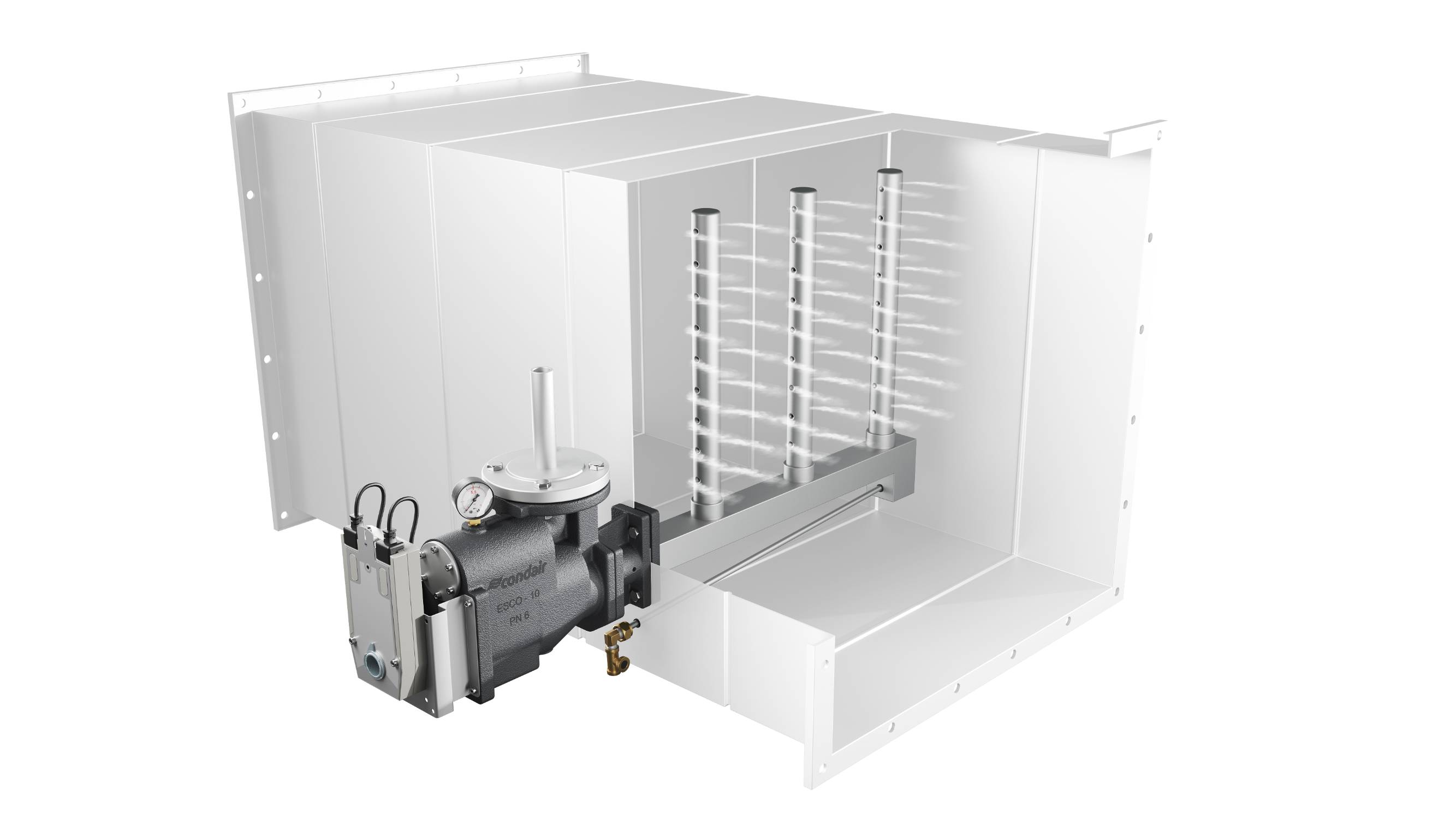

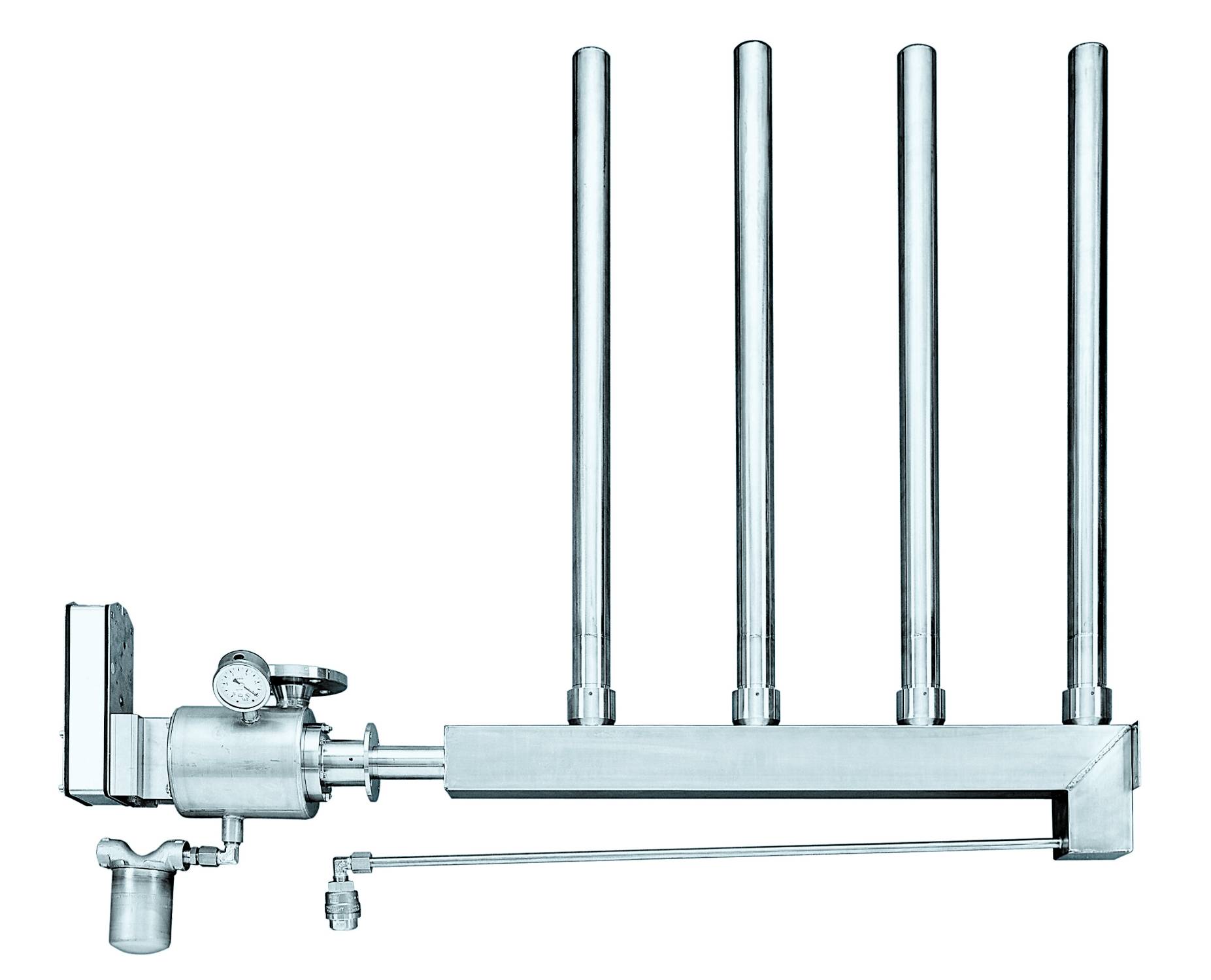

Condair ESCO - Live Steam Humidifier
Compare variants

Application

Suitable for use in hospitals, laboratories and manufacturing

facilities, where a ready supply of steam exists.

Description

Live steam humidifier with 100% steam tight rotary valve, able to deliver 1000 kg/hour of pure, dry steam to an air handling unit or duct, using a building's existing steam network of up to 4 bar.


Features and benefits:

  • Patented precision nozzles ensure condensate-free steam.
  • Standardized flange connections enable simple and safe connection to a steam network.
  • Rotary disk valve is completely leak proof once closed.
  • Valve designed to provide 0-100% modulation, delivering very close humidity control.
  • Primary and secondary condensate drain.
  • Modular builds, with no need for thread sealants on site, making it easy to install and leak-free.
  • Available in cast iron (GGG40) and stainless steel (AISI304), for special requirements on the steam circuit.
  • Offers a choice of steam distribution pipes, depending on the required absorption distance and duct dimensions.

General information

Color

Silver

Material

Stainless steel

Steel

Cast iron

Uniclass

Pr_65_67_39_84 Steam humidifiersPrimary

Specification data - Steam humidifiers Enhanced data

Steam source

Mains steam.

Material

Cast iron, GGG 40.

Standard.

Stainless steel, AISI 304.

For special requirements on the steam circuit.

Performance

Maximum steam capacity.

127 kg/h.

Type/ Size

Esco 5.

Pressure

0.2–4.0 bar.

Steam pressure.

Width

Maximum width of air duct.

4000 mm.
