Compare variants
Summary
A rigid steel pipe for district heating and industrial applications.
A rigid steel pipe for district heating and industrial applications.
Application
- Above-ground and underground pipes for district and local heating networks
- Thermally insulated transport of liquids
- Waste Water
- Cooling
- Above-ground and underground pipes for district and local heating networks
- Thermally insulated transport of liquids
- Waste Water
- Cooling
Description
PREMANT is a rigid, thermally insulated and monitorable pipe system with a robust PE casing. It offers maximum operational reliability for the transport of district heating and other media.
Features and benefits:

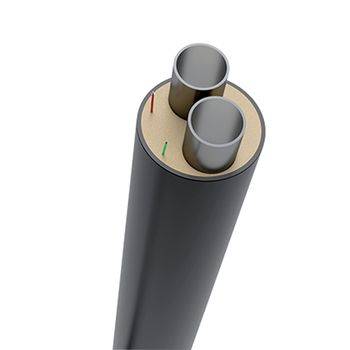

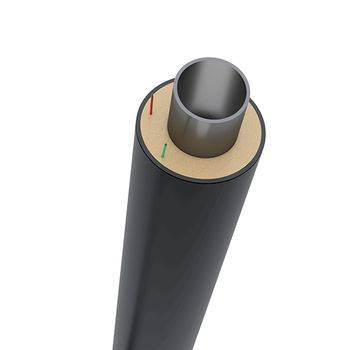

- UNO and DUO pipes available.
- Operating temperature: up to a maximum 144°C (UNO); 130°C (DUO).
- Operating pressure: up to 25 bar.
- Dimensions: DN 20–DN 1000 (UNO); DN 20–DN 250 (DUO).
- Carrier pipe: steel.
- Insulation: polyurethane (PUR).
PREMANT is a rigid, thermally insulated and monitorable pipe system with a robust PE casing. It offers maximum operational reliability for the transport of district heating and other media.
Features and benefits:
- UNO and DUO pipes available.
- Operating temperature: up to a maximum 144°C (UNO); 130°C (DUO).
- Operating pressure: up to 25 bar.
- Dimensions: DN 20–DN 1000 (UNO); DN 20–DN 250 (DUO).
- Carrier pipe: steel.
- Insulation: polyurethane (PUR).
Product certifications
Color
Black
Black
Material
High density polyethylene (HDPE), Steel, Stainless steel, Polyurethane (PUR)
High density polyethylene (HDPE), Steel, Stainless steel, Polyurethane (PUR)
Shape
Circle
Circle
Length
Bespoke
Bespoke
Width
90 mm, 110 mm, 125 mm, 140 mm, 160 mm, 180 mm, 200 mm, 225 mm, 250 mm, 280 mm, 315 mm, 355 mm, 400 mm, 450 mm, 500 mm, 560 mm, 630 mm, 670 mm, 710 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm
90 mm, 110 mm, 125 mm, 140 mm, 160 mm, 180 mm, 200 mm, 225 mm, 250 mm, 280 mm, 315 mm, 355 mm, 400 mm, 450 mm, 500 mm, 560 mm, 630 mm, 670 mm, 710 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm
Height
90 mm, 110 mm, 125 mm, 140 mm, 160 mm, 180 mm, 200 mm, 225 mm, 250 mm, 280 mm, 315 mm, 355 mm, 400 mm, 450 mm, 500 mm, 560 mm, 630 mm, 670 mm, 710 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm
90 mm, 110 mm, 125 mm, 140 mm, 160 mm, 180 mm, 200 mm, 225 mm, 250 mm, 280 mm, 315 mm, 355 mm, 400 mm, 450 mm, 500 mm, 560 mm, 630 mm, 670 mm, 710 mm, 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm
Specification
Classification data
Standards
-
-
Pipes
Pipe assembly of steel service pipes, polyurethane thermal insulation and outer casing of polyethylene to EN 253.
Pipe assembly of steel service pipes, polyurethane thermal insulation and outer casing of polyethylene to EN 253.
Fittings
Fitting assemblies of steel service pipes, polyurethane thermal insulation and outer casing of polyethylene, to EN 448.
Fitting assemblies of steel service pipes, polyurethane thermal insulation and outer casing of polyethylene, to EN 448.
Joint assembly
Joint assembly for steel service pipes, polyurethane thermal insulation and outer casing of polyethylene, to EN 489-1.
Joint assembly for steel service pipes, polyurethane thermal insulation and outer casing of polyethylene, to EN 489-1.
Valve assembly
Steel valve assembly for steel service pipes, polyurethane thermal insulation and outer casing of polyethylene, to EN 488.
Steel valve assembly for steel service pipes, polyurethane thermal insulation and outer casing of polyethylene, to EN 488.
Environmental performance
-
-
Environmental rating
Manufacturer's standard.
Manufacturer's standard.
Embodied carbon
Manufacturer's standard.
Manufacturer's standard.
Recycled content
Manufacturer's standard.
Manufacturer's standard.
Recyclability
Manufacturer's standard.
Manufacturer's standard.
Third-party certification
Euroheat & Power Certified.
Euroheat & Power Certified.
Additional properties
Accessories
Elbow pipe., Bend, with equal legs 90°., Bend, with equal legs 90° short., Bend, with equal legs 45°., Bend, with equal legs 45° short., Bend, 1.0 x 2.0 m 90°., T-piece, angled 45°., Parallel T-piece., Parallel T-piece; heating., Fixed point., Reduction piece., Vent., Drainer., Ball valve., Shut-off fitting, ball valve., Joint, shrink sleeves., Joint, shrink-on reduction sleeve/ end sleeve., EWELCON electro-welding joint., BRUGG INDUCON - welding joint., Fitting bend., Wall sealing ring., Pipe warning tape., Shrink-on closure., Rigid foam beam., Ring seal., Expansion pad.
Elbow pipe., Bend, with equal legs 90°., Bend, with equal legs 45°., T-piece, 90°., Y-pipe, type G; straight., Y-pipe, type W; angled., Fixed point., Vent., Ball valve., Sleeve joint, shrink sleeve, non-cross-linked., Sleeve joint, shrink sleeve, cross-linked., Sleeve joints, reduction sleeves., Sleeve joints, fitting sleeves., Sleeve joints, shrink-on end sleeve., Brugg VISUCON., Wall sealing ring., Pipe warning tape., Shrink-on closure/ end cap., Rigid foam bar., Ring seal., Expansion pad.
Pipe diameter
DN 20., DN 25., DN 32., DN 40., DN 50., DN 65., DN 80., DN 100., DN 125., DN 150., DN 200., DN 250., DN 300., DN 350., DN 400., DN 450., DN 500., DN 600., DN 700., DN 800., DN 900., DN 1000.
DN 20., DN 25., DN 32., DN 40., DN 50., DN 65., DN 80., DN 100., DN 125., DN 150., DN 200.
Pipe material
Carrier: steel.
Insulation: polyurethane (PUR).
Casing: high-density polyethylene (PE-HD).
Insulation: polyurethane (PUR).
Casing: high-density polyethylene (PE-HD).
Carrier: steel.
Insulation: polyurethane (PUR).
Casing: high-density polyethylene (PE-HD).
Insulation: polyurethane (PUR).
Casing: high-density polyethylene (PE-HD).
Operating pressure (maximum)
25 bar.
25 bar.
Insulation
Thickness category 1., Thickness category 2., Thickness category 3.
Thickness category 1., Thickness category 2., Thickness category 3.
Integral accessories
Monitoring wires.
Monitoring wires.
Sustainability data
Country of product manufacture
Switzerland
Switzerland
Material
High density polyethylene (HDPE), Steel, Stainless steel, Polyurethane (PUR)
High density polyethylene (HDPE), Steel, Stainless steel, Polyurethane (PUR)
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Certified
A1–A3 ('Production stage') :
40.8
Certified
A1–A3 ('Production stage') :
40.8
Recycled content
14 %
14 %
Expected Life
30 year
30 year
