Summary
A coated steel self-drilling screw for fixing fibre cement board/ timber to steel.
A coated steel self-drilling screw for fixing fibre cement board/ timber to steel.
Application
- Used for fixing to steel only.
- Maximum steel thickness 3 mm.
- Fibre cement board to steel.
- Cement board to steel.
- Timber to steel.
- Used for fixing to steel only.
- Maximum steel thickness 3 mm.
- Fibre cement board to steel.
- Cement board to steel.
- Timber to steel.
Description

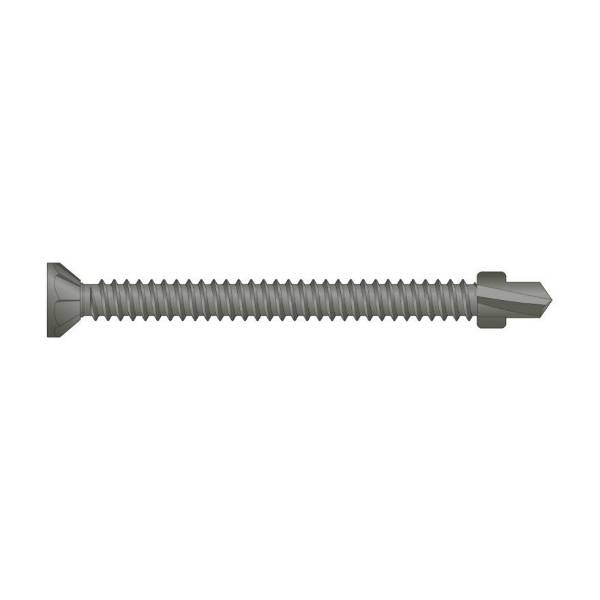

The CBSDQ screw is suitable for fixing fibre cement board/timber to steel such as modular housing construction. It has a countersunk ribbed flat head, fine thread and drill point with wings. The wings ream a hole larger in the cement board/timber and break off when they hit the steel. This allows the cement board/timber to be pulled tight to the steel. Suitable for steel up to 3 mm thick.
Features and benefits:
- Quik Guard® coated steel.
- CE marked to EN 14566.
- Countersunk ribbed flat head for neat finish.
- Drill point with wings to clear debris from hole.
- Self tapping fine thread.
- Driver bit included (BIT2SUE).
The CBSDQ screw is suitable for fixing fibre cement board/timber to steel such as modular housing construction. It has a countersunk ribbed flat head, fine thread and drill point with wings. The wings ream a hole larger in the cement board/timber and break off when they hit the steel. This allows the cement board/timber to be pulled tight to the steel. Suitable for steel up to 3 mm thick.
Features and benefits:
- Quik Guard® coated steel.
- CE marked to EN 14566.
- Countersunk ribbed flat head for neat finish.
- Drill point with wings to clear debris from hole.
- Self tapping fine thread.
- Driver bit included (BIT2SUE).
Color
Grey
Grey
Finish
Coated
Coated
Material
Steel
Steel
Shape
Circle
Circle
Length
41 mm, 57 mm
41 mm, 57 mm
Width
4.2 mm, 4.8 mm
4.2 mm, 4.8 mm
Specification
Standard
To BS EN 14566.
To BS EN 14566.
Material
Steel.
Steel.
Finish
Quik Guard® coated.
Quik Guard® coated.
Screw type
Self drilling.
Self drilling.
Head type
Countersunk ribbed flat head.
Countersunk ribbed flat head.
Length
41 mm.
57 mm.
Additional properties
Diameter
4.2 mm.
4.8 mm.
Service class
2.
2.
