CBSDQ:Self Drilling Fibre Cement Screw
Verified by manufacturer 6 months ago
CBSDQ55E
CBSDQ55E
DoP
Certificate type
A coated steel self-drilling screw for fixing fibre cement board/ timber to steel.
Application
- Used for fixing to steel only.
- Maximum steel thickness 3 mm.
- Fibre cement board to steel.
- Cement board to steel.
- Timber to steel.
Description

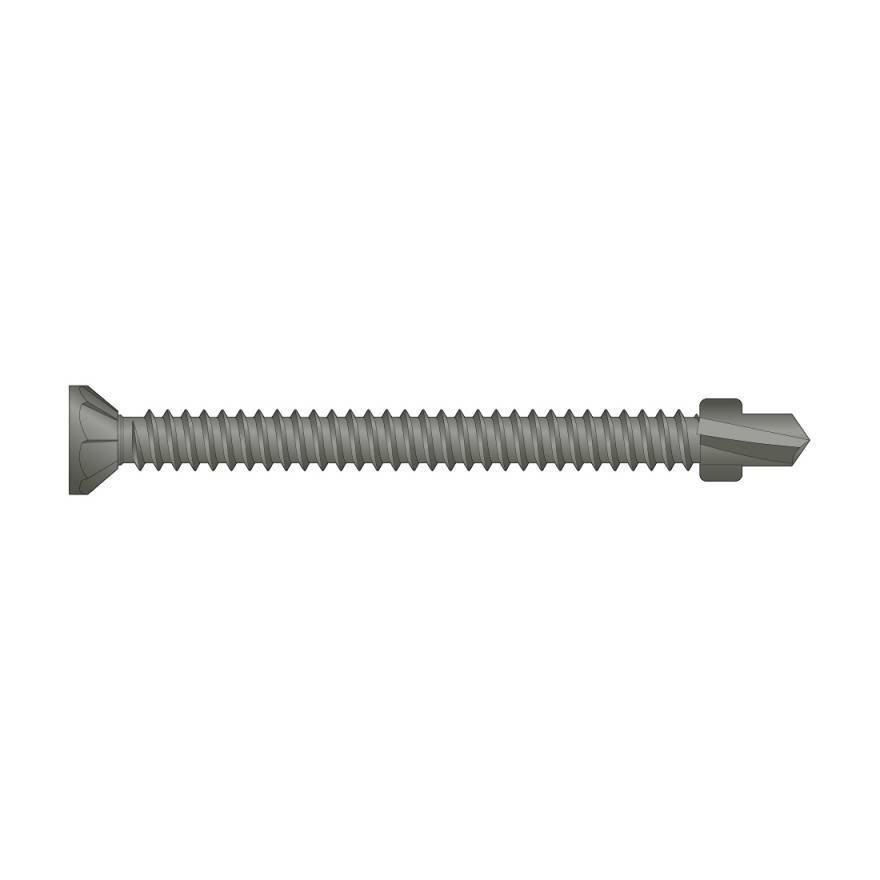

The CBSDQ screw is suitable for fixing fibre cement board/timber to steel such as modular housing construction. It has a countersunk ribbed flat head, fine thread and drill point with wings. The wings ream a hole larger in the cement board/timber and break off when they hit the steel. This allows the cement board/timber to be pulled tight to the steel. Suitable for steel up to 3 mm thick.
Features and benefits:
- Quik Guard® coated steel.
- CE marked to EN 14566.
- Countersunk ribbed flat head for neat finish.
- Drill point with wings to clear debris from hole.
- Self tapping fine thread.
- Driver bit included (BIT2SUE).
General information
Color | Grey |
Finish | Coated |
Material | Steel |
Shape | Circle |
Length | 41 mm 57 mm |
Width | 4.2 mm 4.8 mm |
Uniclass |

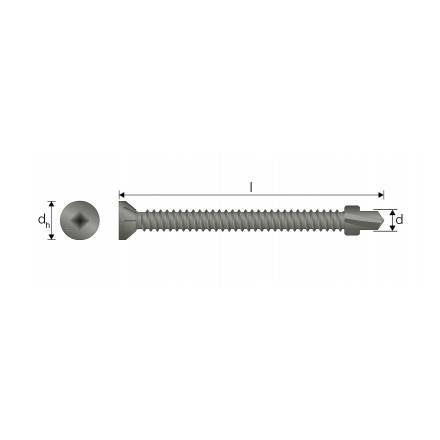

Specification data - Plasterboard screws
Standard | To BS EN 14566. |
Material | Steel. |
Finish | Quik Guard® coated. |
Screw type | Self drilling. |
Head type | Countersunk ribbed flat head. |
Length | 57 mm. |
Diameter | 4.8 mm. |
Service class | 2. |
Third party certifications
DoP
Declaration of Performance DoP-h19/0017
Literature
CBSDQ:Self Drilling Fibre Cement Screw Technical Data Sheet
