Summary
Decentralized school ventilation unit, cabinet version, with supply air, extract air with head and humidity recovery functions. Outside air supply via a facade connection.
-
-
Application
Suitable for use in schools.
-
-
Description

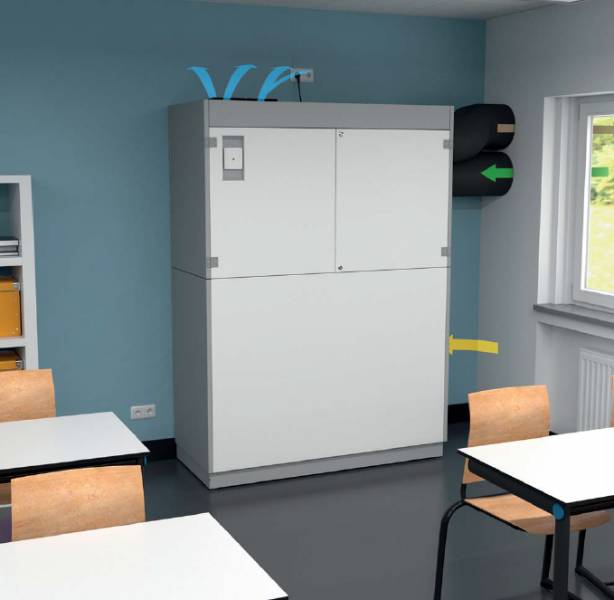

The Kampmann WZA, a decentralized ventilation unit, replaces polluted room air with fresh outside air. The integral CO2 sensor in the unit measures the fresh air requirement. This is crucial to reduce any possible viruses and also promote pupils' ability to concentrate. Too high a CO2 content in room air gives rise to what is referred to as "muggy air".
Features and benefits:
- Easy installation.
- Easy commissioning intuitive operation.
- Quiet operation.
- Air quality constantly monitored.
- Safe operation.
- Outside air supply through a façade connection.
-
-
Color
Grey, White
-
-
Length
660 mm
-
-
Width
1512 mm
-
-
Height
2100 mm
-
-
Specification
Duty
-
-
-
Air volume
-
-
-
Supply
1000 m³/h.
-
-
Sound power level
51 (db) A.
-
-
Environment
Internal.
-
-
Components
-
-
-
Filters
Outside air filter and extract air filter.
-
-
Heat recovery
-
-
-
Heat recovery equipment
Not required., Electrical supplementary heating coil.
-
-
Extract fan
-
-
-
Fan type
Radial fan.
-
-
Additional properties
SupplyAirTemperatureHeating
17.0 °C.
-
-
SpaceRelativeHumidity
37%.
-
-
Power consumption
312 W.
-
-
SoundPressure
39 (db) A.
-
-
Height
2100 mm.
-
-
Width
1512 mm.
-
-
Depth
660 mm.
-
-
Outlet
Built in., External.
-
-
Sustainability data
Country of product manufacture
Germany
-
-
