Aluminium Window CS 104 Concept System
Aluminium Window CS 104 Concept System

Last verified by manufacturer over a year ago

Reynaers Aluminium

Double glazing

Last verified by manufacturer over a year ago

Reynaers Aluminium

Triple glazing

Summary
Single and composite, highly insulated aluminium windows in a choice of colour and finish.
Single and composite, highly insulated aluminium windows in a choice of colour and finish.
Application

Inward opening window system, designed to increase comfort and decrease energy consumption to a minimum.

Suitable large dimensions, even with the application of triple glazing making it suitable for Passivhaus applications.

Can be combined with CS 104 doors.

Inward opening window system, designed to increase comfort and decrease energy consumption to a minimum.

Suitable large dimensions, even with the application of triple glazing making it suitable for Passivhaus applications.

Can be combined with CS 104 doors.

Description

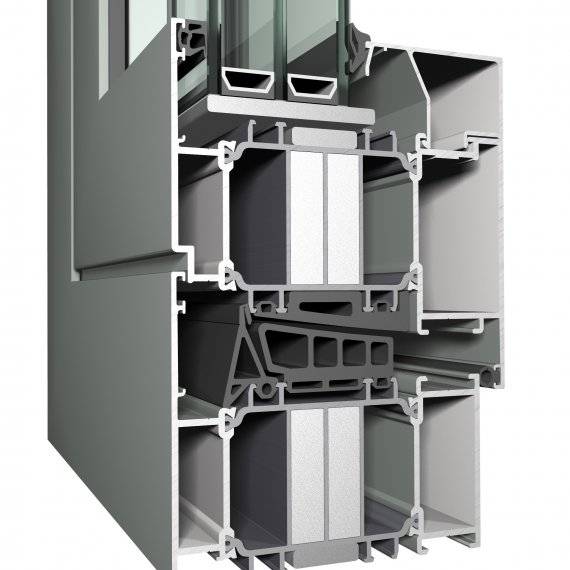

Concept System® 104 is Reynaers latest and most innovative inward opening window system, designed to increase comfort and decrease energy consumption to a minimum.

The increased built-in depth (104 mm) contributes to the strength and stability of the elements, allowing large dimensions, even with the application of triple glazing making it ideal for Passivhaus applications.


Features and benefits:

  • Inward opening casement windows.
  • Drained and ventilated glazing with EPDM synthetic rubber gaskets.
  • Choose from a full range of polyester powder coat colours and anodized finishes.
  • Dual colour available offering a different colour inside and out.
  • Weather stripped profiles with polyamide thermal breaks.
  • High insulation variant available as standard.
  • Ten-year systems guarantee provided as standard.
  • Awarded the coveted Swiss Minergie® component accreditation for thermal performance.
  • Uf values down to 0.8 W/m²K making it suitable for Passivhaus applications.
  • Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A, Element Number 1231500007.
  • CAD and BIM details available on request.

Concept System® 104 is Reynaers latest and most innovative inward opening window system, designed to increase comfort and decrease energy consumption to a minimum.

The increased built-in depth (104 mm) contributes to the strength and stability of the elements, allowing large dimensions, even with the application of triple glazing making it ideal for Passivhaus applications.


Features and benefits:

  • Inward opening casement windows.
  • Drained and ventilated glazing with EPDM synthetic rubber gaskets.
  • Choose from a full range of polyester powder coat colours and anodized finishes.
  • Dual colour available offering a different colour inside and out.
  • Weather stripped profiles with polyamide thermal breaks.
  • High insulation variant available as standard.
  • Ten-year systems guarantee provided as standard.
  • Awarded the coveted Swiss Minergie® component accreditation for thermal performance.
  • Uf values down to 0.8 W/m²K making it suitable for Passivhaus applications.
  • Corresponds to the BRE Global Green Guide online generic specification for windows and achieves a summary rating of A, Element Number 1231500007.
  • CAD and BIM details available on request.
Finish
Anodized, Powder coated
Anodized, Powder coated
Material
Aluminium, Glass
Aluminium, Glass
Shape
Rectangle, Square
Rectangle, Square
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke
WarrantyDescription
Ten year
Ten year

Specification

Standard
Non-fire- and/ or smoke-rated windows to BS EN 14351-1 and BS 4873.
Non-fire- and/ or smoke-rated windows to BS EN 14351-1 and BS 4873.
Dimensions and configurations
Fixed., Inward opening, tilt turn., Inward opening, tilt only., Inward opening, turn only.
Fixed., Inward opening, tilt turn., Inward opening, tilt only., Inward opening, turn only.
Product performance
-
-
Weather performance
-
-
Air permeability
Up to 600 Pa (class 4).
Up to 600 Pa (class 4).
Watertightness
Up to 600 Pa (class 9A).
Up to 600 Pa (class 9A).
Resistance to wind load
Up to 2000 Pa (class 5).
Up to 2000 Pa (class 5).
Safety
-
-
Security level
PAS 24:2013 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).
PAS 24:2013 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).
Environmental
-
-
Acoustic performance rating
Rw (C;Ctr) = 36 (-1;-4) to 43 (-2;-5) dB.
Rw (C;Ctr) = 36 (-1;-4) to 43 (-2;-5) dB.
Thermal
-
-
Whole window U-value
1.2 W/m²K.
0.8 W/m²K.
Frame
-
-
Profile
CS 104 Concept System Functional., CS 104 Concept System High.
CS 104 Concept System Functional., CS 104 Concept System High.
Finish as delivered
-
-
Coating
Powder coating to BS EN 12206-1., Powder coating to APA Qualicoat standard., Anodized to EWAA/ EURAS-Qualanod standard., Anodized to BS 3987.
Powder coating to BS EN 12206-1., Powder coating to APA Qualicoat standard., Anodized to EWAA/ EURAS-Qualanod standard., Anodized to BS 3987.
Film thickness (minimum)
Manufacturer's standard.
Manufacturer's standard.
Glazing or infill
-
-
Requirements
Double glazing.
Triple glazing.
Hardware
Horizon handles, anodized., Horizon handles, powder coated., Orchid handles, black., Orchid handles, white., Orchid handles, anodized., Shield handles, unpolished natural anodized., Standard handles.
Horizon handles, anodized., Horizon handles, powder coated., Orchid handles, black., Orchid handles, white., Orchid handles, anodized., Shield handles, unpolished natural anodized., Standard handles.
Operation
-
-
Type
Manual., Remote operation.
Manual., Remote operation.

Additional properties

Accessories
None., Window restrictor.
None., Window restrictor.
