Verified by manufacturer 5 months ago
Single and composite, highly insulated aluminium windows in a choice of colour and finish.
Inward opening window system, designed to increase comfort and decrease energy consumption to a minimum.
Suitable large dimensions, even with the application of triple glazing making it suitable for Passivhaus applications.
Can be combined with CS 104 doors.

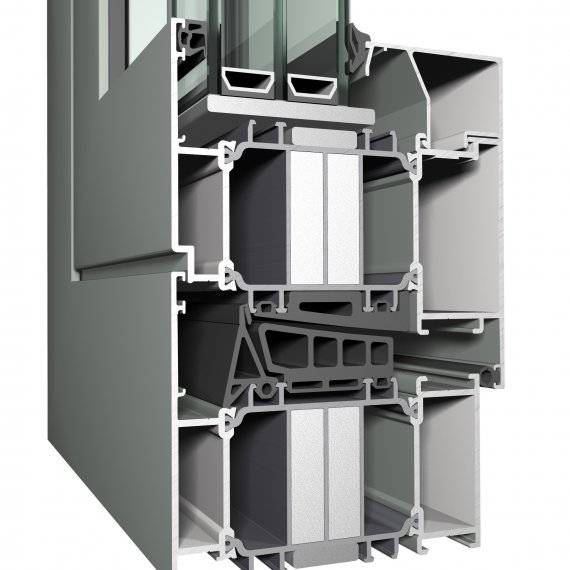

Concept System® 104 is Reynaers latest and most innovative inward opening window system, designed to increase comfort and decrease energy consumption to a minimum.
The increased built-in depth (104 mm) contributes to the strength and stability of the elements, allowing large dimensions, even with the application of triple glazing making it ideal for Passivhaus applications.
Features and benefits:
Frame width 104 mm.
Standard systems guarantee (five year guarantee for wearing parts).
L10/25 Aluminium windows
L10/330 Aluminium windows
Non-fire- and/ or smoke-rated windows to BS EN 14351-1 and BS 4873.
Dimensions and configurations
Inward opening, tilt turn.
Inward opening, tilt only.
Inward opening, turn only.
Up to 600 Pa (class 4).
Up to 600 Pa (class 9A).
Resistance to wind load
Up to 2000 Pa (class 5).
PAS 24:2013 (UK Secured by Design standard) and RC2/ WK2 (European standard EN(V)1627–EN(V)1630 (windows).
Acoustic performance rating
Rw (C;Ctr) = 36 (-1;-4) to 43 (-2;-5) dB.
Depending on the glazing type specified.
Whole window U-value
Depending on the frame/ vent combination and glass unit specification.
CS 104 Concept System Functional.
A thermally improved three-chamber system for windows.
CS 104 Concept System High.
Thermally enhanced variant.
Finish as delivered
Powder coating to BS EN 12206-1.
Powder coating to APA Qualicoat standard.
Anodized to EWAA/ EURAS-Qualanod standard.
Anodized to BS 3987.
Insert requirements based on coating specified.
Profiles can be finished with different internal and external colours, powder coated or anodized:
Film thickness (minimum)
Glazing or infill
Insert details of glazing unit including, spacer type and dimension, glass type (emissivity, safety, solar, G-value and energy factors) and thickness (up to 65 mm).
Glass to be set against extruded EPDM rubber gaskets retained in undercut grooves within the aluminium profile and clip-in glazing beads. Can be glazed from the inside and outside.
Horizon handles, anodized.
Horizon handles, powder coated.
Insert requirements; available in one of 400+ RAL colours.
Orchid handles, black.
Orchid handles, white.
Orchid handles, anodized.
Shield handles, unpolished natural anodized.
Also complies with burglar resistance classes 2 and 3.
Fixings must ensure the window is retained securely within the opening without damage or distortion to the window frame.
Generally, fasteners should be positioned 150 mm from each corner and each mullion/ transom, and at centres not exceeding 600 mm.
