Summary

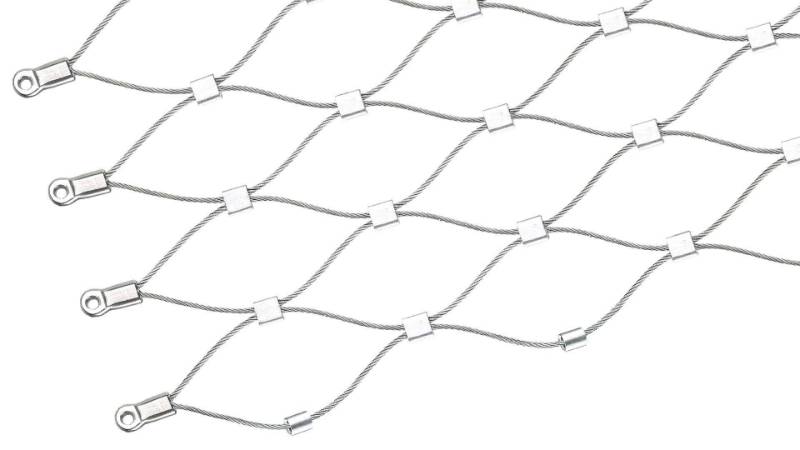

A versatile, pliable, high strength architectural mesh, fabricated from 'marine grade' 316 stainless steel wire rope.
-
-
Application
Multi- functional, suitable for:
- Balustrade, railing and fence infill
- Safety nets - fall prevention and protection i.e:
- On bridges
- Securing Multi Storey Car Parks (MSCP's) openings
- Observation platforms
- Stair wells
- Balconies
- Ball stop catch nets & MUGAs
- Green walls & plant training systems
- Anti bird netting
- Zoo enclosures & aviaries
- Art installations
-
-
Description
Highly durable with exceptional tensile strength, Webnet provides the perfect blend of security, safety and elegance, with the system’s strong yet delicate structure making it inconspicuous yet highly effective.
JAKOB Webnet has been subjected to numerous tests and complies with all applicable architectural net standards, it is also weather-resistant, transparent and requires minimal maintenance.
Available with or without sleeves (ferrules).
Features and benefits:
- Bespoke sizes and shapes - virtually no limits to the shape, size or diamond orientation.
- Highly resistant to corrosion, UV, and the effects of weather.
- Coatings – options of natural 316 stainless steel finish, spectral/black oxide colouring, or powder coating available.
- Available in a wide variety of rope diameters and mesh apertures
-
-
Color
Silver, Other
-
-
Finish
Natural, Anodized, Powder-coated, Other
-
-
Material
Stainless steel
-
-
Shape
Diamond, Other
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Warranty description
Two year
-
-
SKU Code
20261, 20256
-
-
Specification
Classification data
Material
Grade 316 stainless steel.
-
-
Gauge
1 mm diameter., 1.5 mm diameter., 2 mm diameter., 3 mm diameter., 5 mm diameter., 4 mm diameter.
-
-
Mesh size
20 mm., 25 mm., 30 mm., 40 mm., 50 mm., 60 mm., 70 mm., 80 mm., 100 mm., 120 mm., 140 mm., 160 mm., 180 mm., 200 mm.
-
-
Finish
None., Powder-coated., Spectral/black oxide processing.
-
-
Additional properties
Panel/ mesh type
Webnet A, AISI 316 stainless steel rope, AISI 316 sleeve.
-
-
Orientation
Vertical mesh., Horizontal mesh.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
Vietnam
-
-
Country of product manufacture
Switzerland
-
-
Manufacturing plant location
Dorfstrasse 34, 3555 Trubschachen, Switzerland
-
-
Material
Stainless steel
-
-
Recyclability
100%
-
-
Expected Life
Lifetime
-
-
