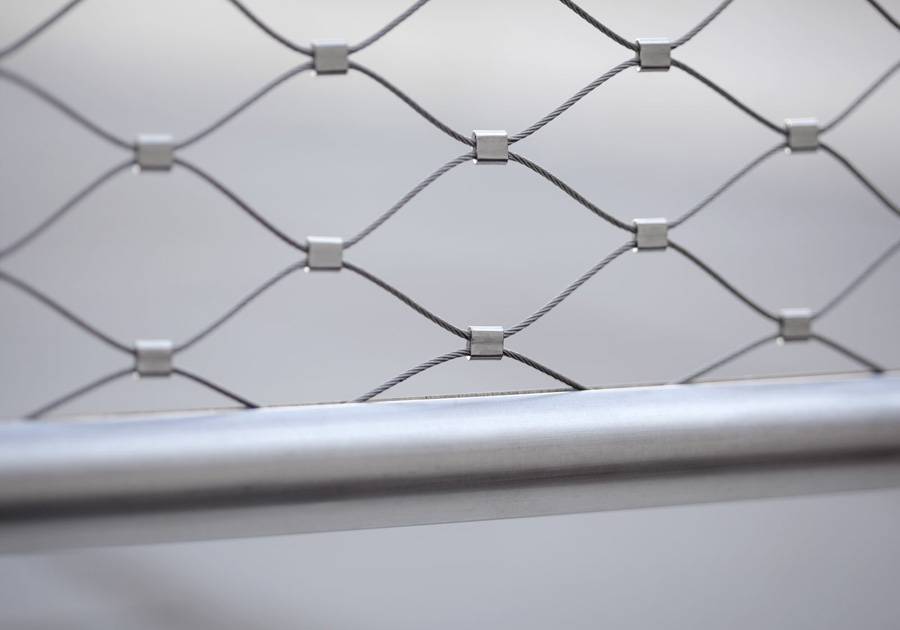

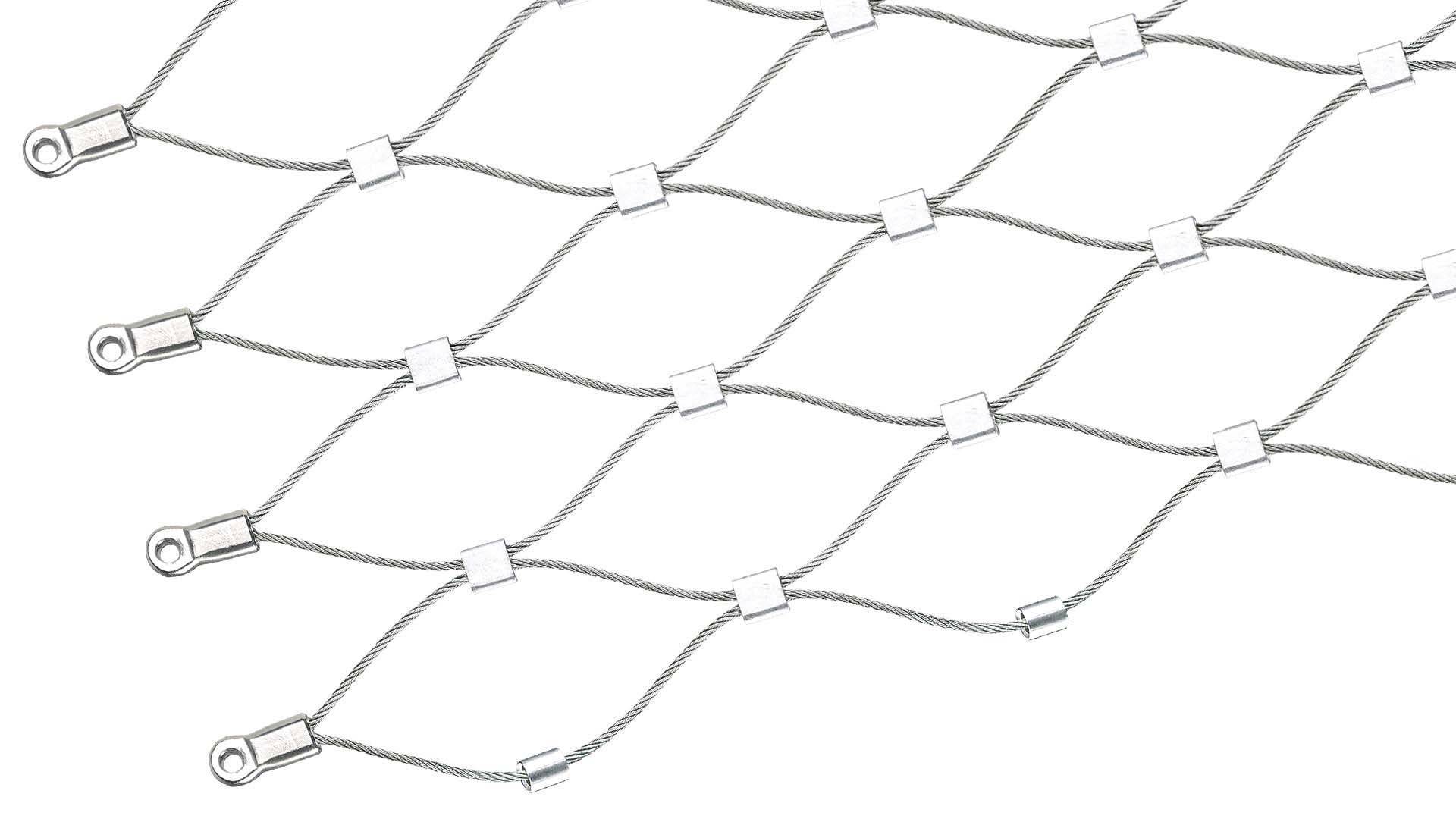

JAKOB Webnet - Wire Mesh (Stainless Steel) - Metal Nets
Verified by manufacturer 29 days ago
Certificate of Compliance
Certificate type
A versatile, pliable, high strength architectural mesh, fabricated from 'marine grade' 316 stainless steel wire rope.
Application
Multi- functional, suitable for:
- Balustrade, railing and fence infill.
- Safety nets - fall prevention and protection i.e.:
- On bridges;
- Securing Multi Storey Car Parks (MSCPs) openings;
- Observation platforms;
- Stair wells;
- Balconies.
- Ball stop catch nets & MUGAs.
- Green walls and plant training systems.
- Anti bird netting.
- Zoo enclosures and aviaries.
- Art installations.
Description
Highly durable with exceptional tensile strength, Webnet provides the perfect blend of security, safety and elegance, with the system’s strong yet delicate structure making it inconspicuous yet highly effective.
JAKOB Webnet has been subjected to numerous tests and complies with all applicable architectural net standards, it is also weather-resistant, transparent and requires minimal maintenance.
Available with or without sleeves (ferrules).
Features and benefits:
- Bespoke sizes and shapes - virtually no limits to the shape, size or diamond orientation.
- Highly resistant to corrosion, UV, and the effects of weather.
- Coatings – options of natural 316 stainless steel finish, spectral/black oxide colouring, or powder coating available.
- Available in a wide variety of rope diameters and mesh apertures
General information
Color | Silver Other |
Finish | Natural Powder-coated Other |
Material | Stainless steel |
Shape | Diamond Other Circle Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Two year |
Uniclass | |
CAWS | N25/260 Material/ protection net L30/55 Proprietary balustrades L37/160 External balustrades L3/308 Guarding infill N25/250 Safety net L30/560 Proprietary balustrades L35/170 Guarding system Q55/390 Guarding |
SKU Code | 20261, 20256 |
Specification data - Metal nets
Classification data | |
Material | Grade 316 stainless steel. |
Gauge | 1 mm diameter. 1.5 mm diameter. 2 mm diameter. 3 mm diameter. 4 mm diameter. 5 mm diameter. |
Mesh size | 20 mm. 25 mm. 30 mm. 40 mm. 50 mm. 60 mm. 70 mm. 80 mm. 100 mm. 120 mm. 140 mm. 160 mm. 180 mm. 200 mm. Manufacturer guidance20 mm mesh width up to 400 mm mesh width is available. Some mesh width and rope diameter combinations are not possible - but most are (e.g. the smallest mesh width for a 3 mm diameter rope is 40 mm). |
Finish | None. Guidance for specification option: For natural 316 stainless steel finish. Powder-coated. Guidance for specification option: Insert colour requirements below. Spectral/black oxide processing. |
Colour | Guidance for specification option: Available in any RAL or NCS colour on request. Insert requirements (powder-coated only) or omit. |
Accessories | Manufacturer guidanceConsult manufacturer for the full range of suspension/perimeter ropes, connectors, clamps, tube systems, rods and fasteners and insert requirements. |
Panel/ mesh type | Webnet A, AISI 316 stainless steel rope, AISI 316 sleeve. |
Orientation | Vertical mesh. Horizontal mesh. |
Perimeter | Manufacturer guidanceDifferent perimeter design configurations are needed depending on the periphery structure. Consult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Vietnam |
Country of product manufacture | Switzerland |
Manufacturing plant location | |
Material | Stainless steel |
Recyclability | 100% |
Expected Life | Lifetime |
Product certifications
Certificate of Compliance
Webnet Certificate of Conformity
Literature
Literature type

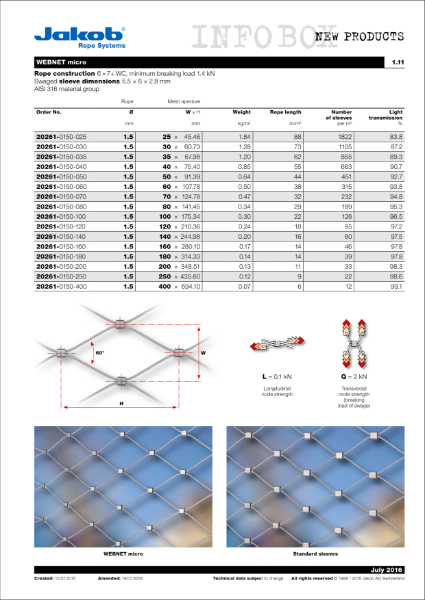

Webnet Variants for 1.5mm & 2mm rope Ø.
2024 Webnet Catalogue
Webnet Black Oxidising Process
Webnet Bridge Safety, Project References
Webnet Balustrade & Safety, Project References
Webnet Zoo Enclosure, Project References
Case studies
Webnet used as Balustrade Infill at the Queen Elizabeth Olympic Park
