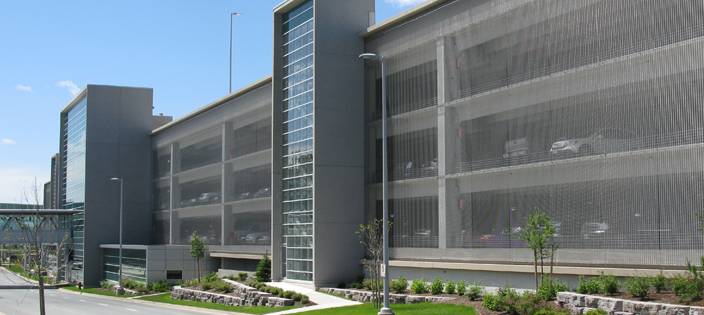

A key feature of this car park is the combination of the woven wire mesh facade at the east and west facade and "woven" concrete at the north and south elevations. 108 elements of weave type DOGLA-TRIO 1010 cover an area exceeding 3,800 m² . The standard length of each elements is 12,430 mm, the width is 3,040 mm. The attachment system consists of flat tension profiles with clevis bolts. Additional tension springs allow for a consistent tensioning. For this project the springs were placed at the top in a less visible area of the facade.
Contact HAVER Architectural Woven Wire Mesh by clicking the button below to find out which products were used in this case study.
