PERIMETER SECURITY FOR WATER TREATMENT WORKS

One of the UK’s largest utility companies required adequate security protection to their portable water sites. Water is treated from the local river supply at the site, which then supplies the local area. Therefore, it is important to ensure that the site is protected from any trespassers or any other miscreants who may be up to no good. Sites of this nature must be kept safe and secure to ensure that the water supplies to the public are kept as clean and safe as possible. The site is operated 24/7 and required additional security support to ensure the large site is kept safe and secure.

Project Brief for Water Treatment Works Security

The site is required to be protected in line with the company Risk-Based Approach (RBA) and security requirements from DEFRA with recommended security upgrades to the physical perimeter security fencing, video surveillance systems (VSS), access control and intruder detection systems.

Perimeter security fencing was required to be upgraded to at least LPS 1175 SR2 (B3) level with detection and access control and careful consideration to the surrounding forest, home to several animals, including Wild Boar. This causes several problems for the site, including damage to the existing fence and potential water quality issues. In addition, the Drinking Water Inspectorate (DWI) are particularly interested in the vermin and pest control for the site, so designing the security solution had to consider this.

The Solution

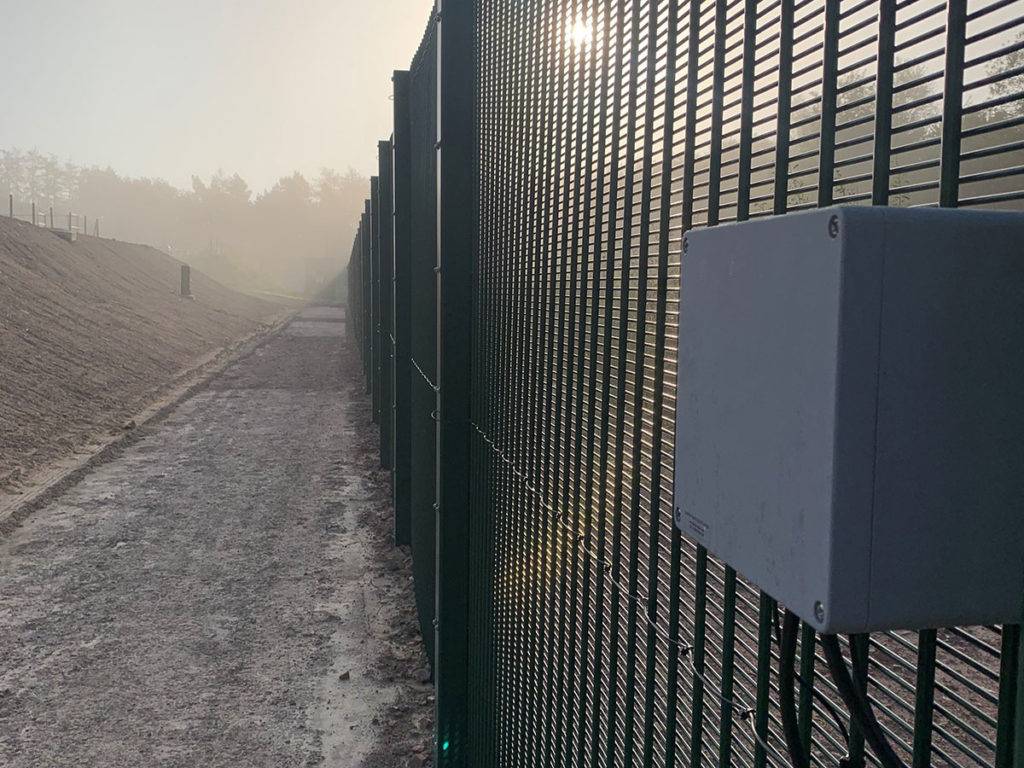

Binns Security was appointed as principal contractor for CDM and project managed the whole project from start to finish, including coordinating works. Based on the site's requirements, Zaun’s HiSec Super SR2 fencing was selected to upgrade the existing non-rated perimeter fencing and gates to LPS1175 SR2 standards, providing the client with perimeter fencing system with a guaranteed delay of at least 3 minutes.

Designed with a height of 2.4m as a minimum with a 358 anti-climb mesh configuration makes it very difficult to scale and prevents climbing aids. To combat vermin and pest control, the perimeter

fencing is also required to be buried at 300mm, which stops the vermin and also prevents burrowing from any potential intruders.

Both pedestrian and vehicular gates were also upgraded to LPS1175 SR2 to match the fence line and provide operational access without compromising the site's security. This single layered LPS1175 SR2 rated fencing system was accompanied by Harper Chalice’s perimeter intrusion detection system (PIDS) FenceSecure, which provides an early warning for any unauthorised access. Additionally, this system provided a full perimeter PID system covering fencing, gates and pedestrian access points.
