Mechanical smoke ventilation at Local Blackfriars

OVERVIEW

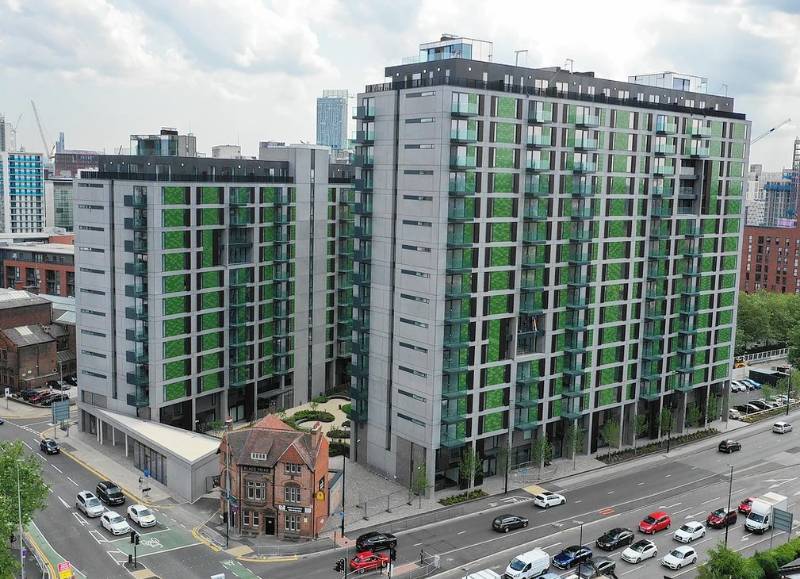

Local Blackfriars is a gated community in Salford, providing 380 apartments. A unique aspect of the residential scheme is the Grade II listed Black Friar pub merged into the development.


D+H UK were asked to supply and install mechanical smoke ventilation systems for the apartment blocks and the underground car parks. D+H UK worked closely with Fire Design Solutions and Domis Construction over the course of the project to provide a successful outcome.


When a floor goes into fire, the dampers in both shafts on the affected floor open. The chain drive on the AOV window on the affected floor opens to provide fresh inlet air. The vent at the head of the stairwell will also open. Both sets of fans work to extract the smoke and poisonous gases.


On activation of a thermostat on a single floor, both the dampers on the affected floor will open. One set of fans will extract on trickle mode and the other shaft will provide fresh inlet air for the system. The vent at the head of the stair will also partly open.

If the rain sensor is activated this will override and close the roof vent.

If more than one thermostat operates, the dampers on the affected floors will open and be balanced to provide an equal air flow on each floor.

Smoke detection in any zone will override the natural ventilation system and smoke extract will take priority.


D+H UK provided an eco-park® mechanical ventilation system. Advanced components and control systems allows for efficient energy usage.

No featured products in this case study

Contact D+H UK by clicking the button below to find out which products were used in this case study.
