London Aquatic Centre - Smoke & Natural Ventilation

Project Background

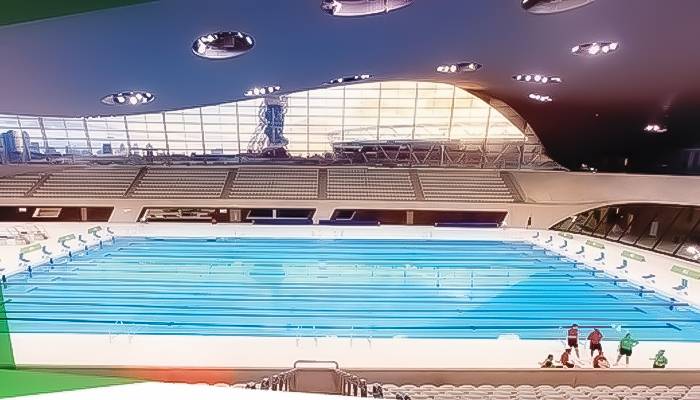

Designed by Pritzker Prize-winning architect Zaha Hadid in 2004, before London won the bid for the 2012 Summer Olympics, the London Aquatics Centre is an indoor facility with two 50-metre (160-foot) swimming pools and a 25-metre (82-foot) diving pool. Its iconic wave-like roof sweeps up from the ground and was inspired by the fluid geometry of water in motion, creating spaces and a surrounding environment in sympathy with the river landscape of the Olympic Park.

Project Solution

Powrmatic Wall Opensky louvred ventilators were at the heart of the smoke and natural ventilation system at the London Aquatic centre in the Queen Elizabeth Olympic Park in Stratford, east London. The ventilation systems were designed and installed by Air Design Systems Ltd.

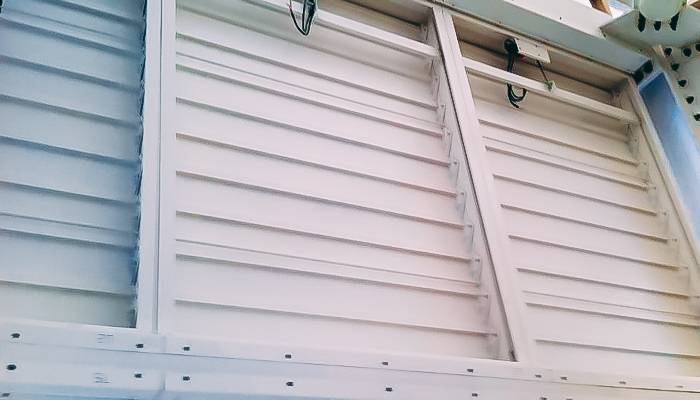

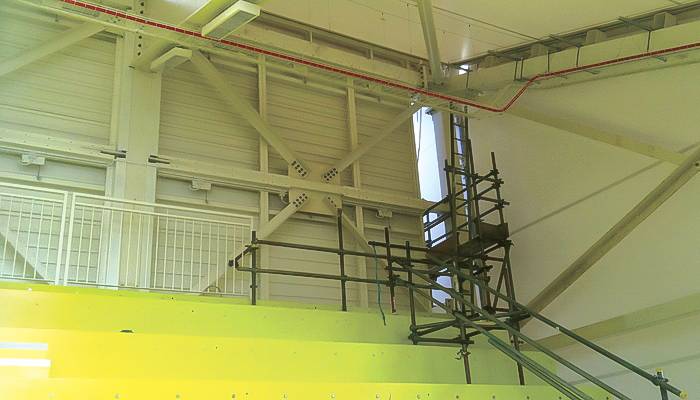

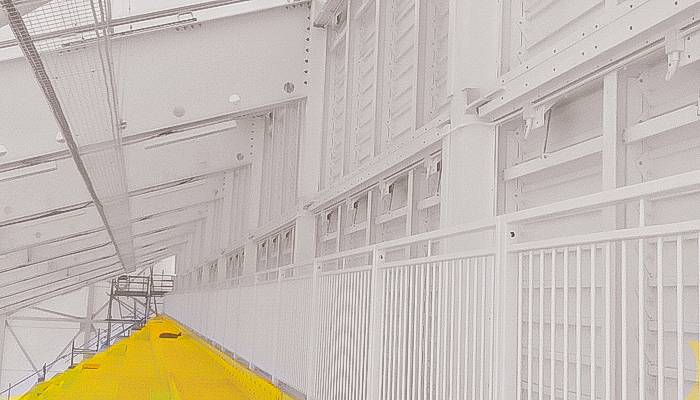

The wall mounted Opensky louvred ventilators are used to provide a high-free area at the back of the stands for heat exhaust and smoke extract. The units were double-stacked and provided with a white polyester powder-coated finish.

Air Design Systems Ltd also made provision for the control system that included local control panels, electrical wiring, override switches and full commissioning and demonstration of the system.

Project Result

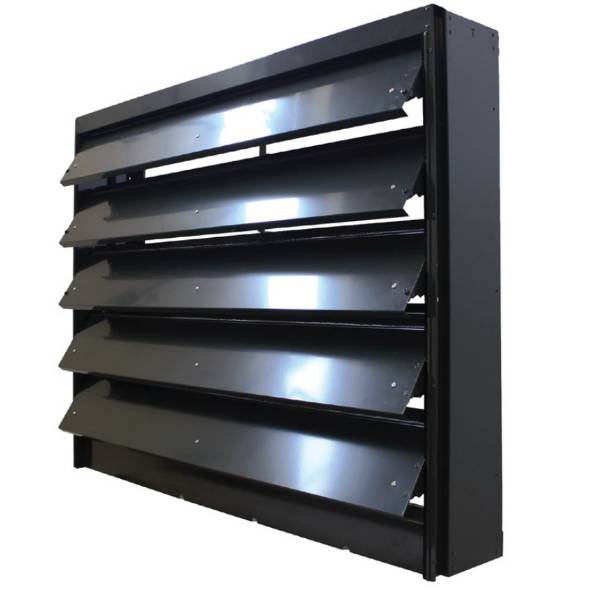

Tested for use as smoke ventilators to BS EN 12101-2, Powrmatic’s Opensky ventilators can be roof or wall mounted for exhaust or inlet and can be supplied with a hinged base for use as an access hatch. They have been specifically designed for both smoke and heat exhaust and natural ventilation applications and combine an attractive style with a discreet, low profile.
