Friars Road Student Accommodation Smoke Ventilation

OVERVIEW

Overview

Head of stairwell High Rise Student Accommodation Ventilation designed and installed by ADS (Air Design Systems) at a brand new student accommodation on Friars Road, Coventry.


Project Background

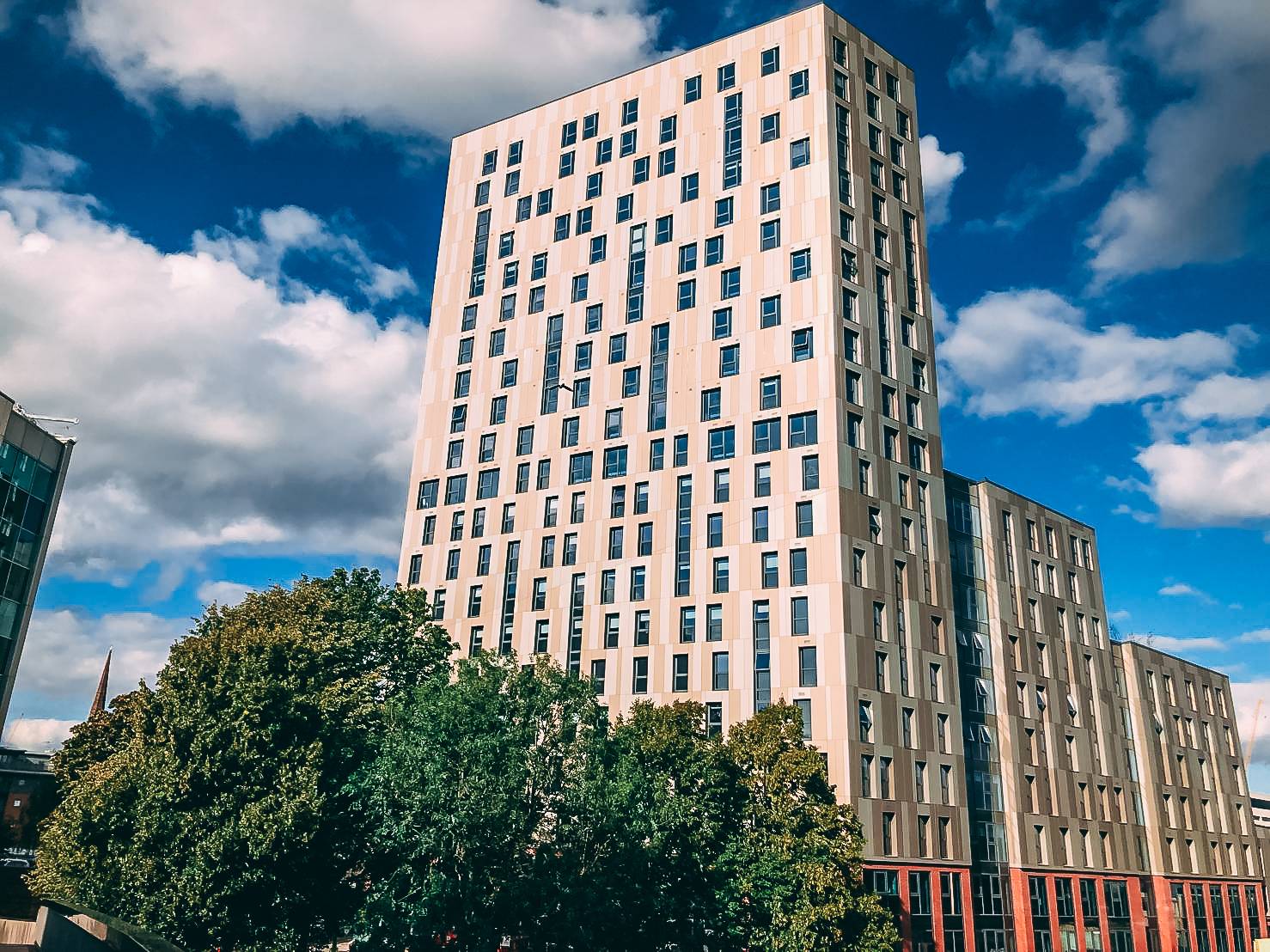

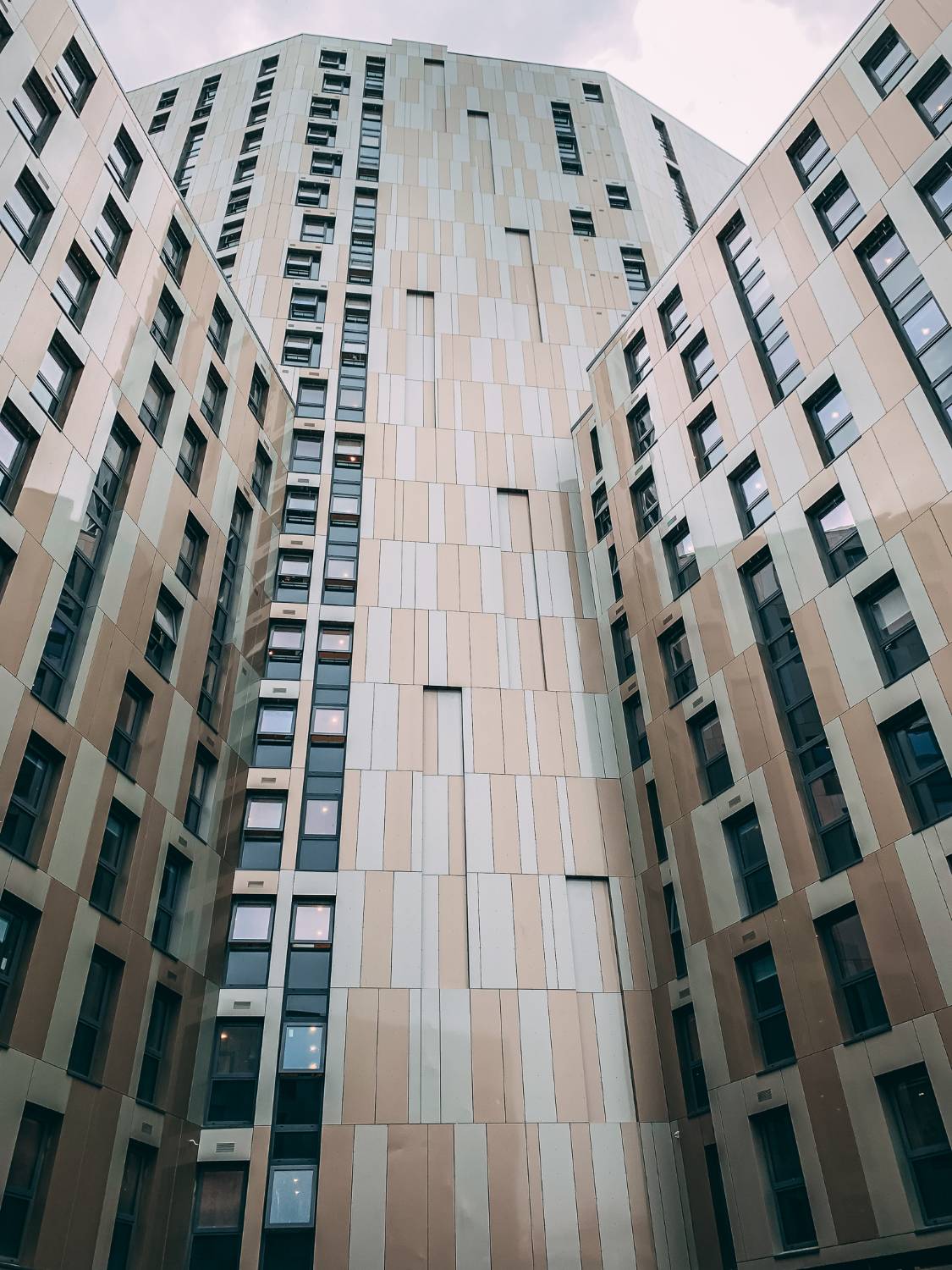

Trinity View is a brand-new student accommodation in Coventry with Six iconic blocks for 614 students, all set around a private courtyard which required a smoke ventilation system.


Project Solution

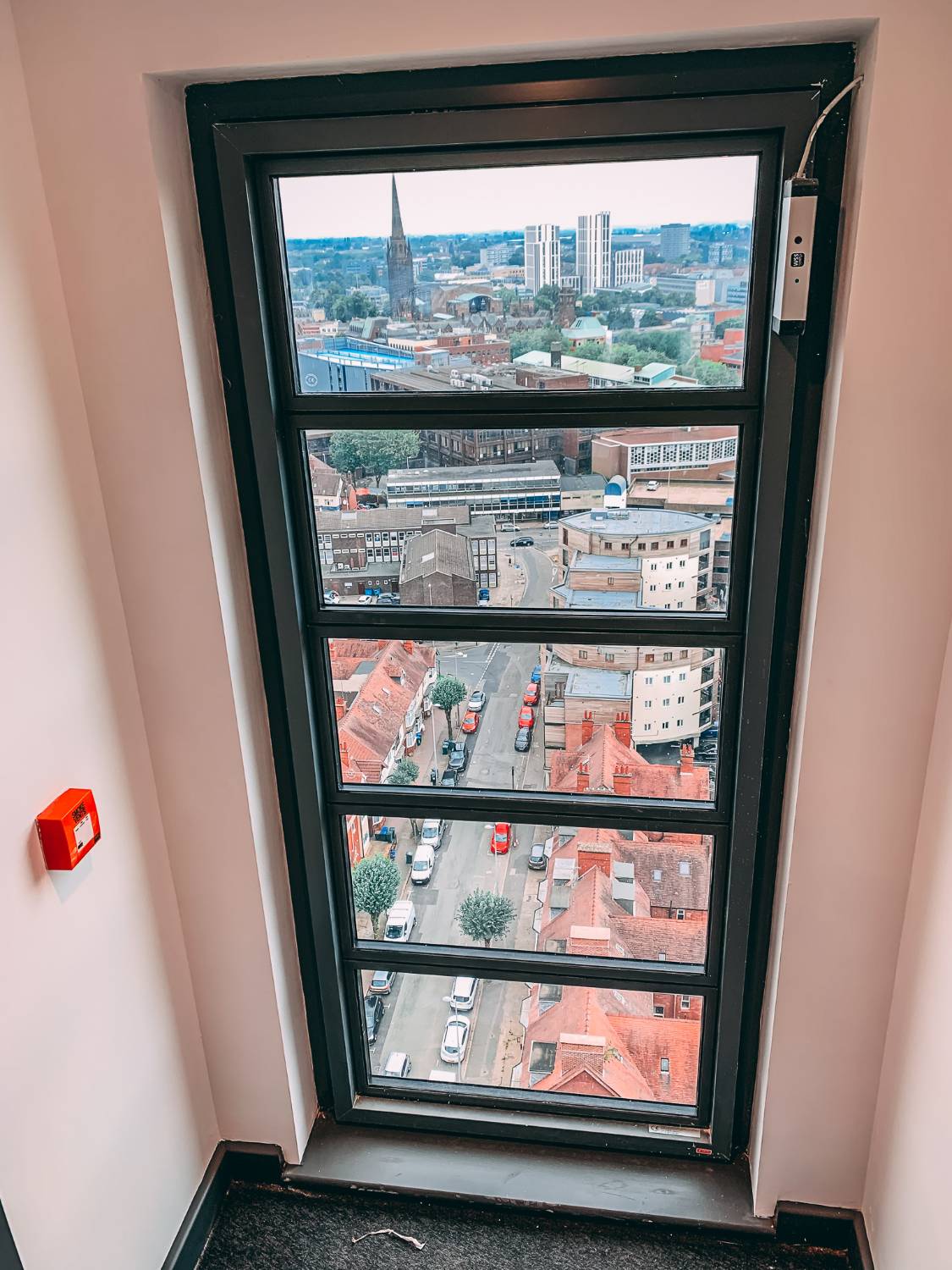

ADS (Air Design Systems)  installed Powrmatic N-SHEV Stirling natural and smoke ventilators at the head of three stairs along with Stirling vents above the smoke extract fans in two smoke shafts. Along side these smoke ventilators, a Powrmatic N-SHEV Wall Opensky was installed at the head of a separate smoke shaft that terminated in the Façade. The Stirling Casement Ventilators were operated by 24v drive open/drive close actuators opening to 90° and painted to a RAL 7016 colour to match the existing building. The Roof Opensky N-SHEV ventilator was also operated by an electric 24v drive open/drive close actuator with single skin aluminium blades mounted on a turndown base.


Project Result

ADS (Air Design Systems)  delivered an expectational high rise student accommodation smoke ventilation installation which was handed over on time and in budget with their customer. The student accommodation now benefits from a life safety smoke ventilation system. ADS also provided the smoke shaft dampers, the facade FLW Fieger louvred vents and the full control system for the accommodation. The 4 different sized Stirling Casement ventilators offered 1.04m² (x2) , 1.32m², and 1.15m² Free area to Approved Document B.

Products featured in this case study

View all products (16)
Opensky Roof AOV - Louvred Smoke & Natural Ventilator NSHEV

Opensky Roof AOV - Louvred Smoke & Natural Ventilator NSHEV

Stirling Roof Casement AOV - Single Flap - Smoke & Natural Ventilator NSHEV

Stirling Roof Casement AOV - Single Flap - Smoke & Natural Ventilator NSHEV
