APL Case Study - AP65ZS Zipseam™ Roofing & Sinusoidal, Slimwall™ & Louvre Cladding - CMR Medical

Project: CMR Medical

Date: 2022

Background:

·        APL were engaged with the building owner and architect early in the project design and specification process, having worked on a number of previous projects together

·        Due to APL’s strong supply-chain relationships, all material was able to be secured ahead of the tender process to ensure that the very tight project programme was met

·        APL provided all thermal, acoustic and structural calculations

Systems:

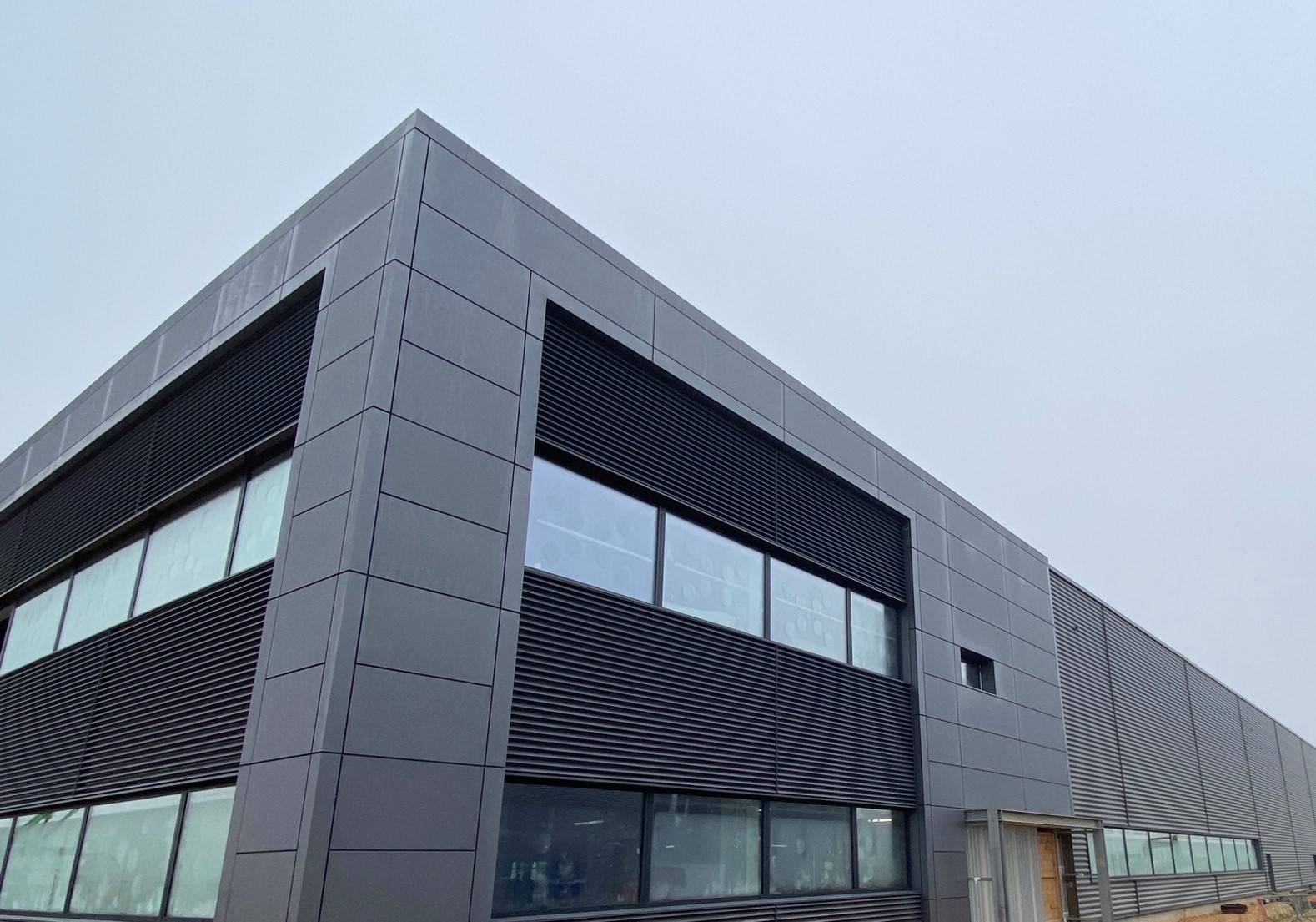

·        9,000m² of APL built-up acoustic 65ZS standing seam system (site-rolled) in stucco-embossed mill-finished aluminium, along with PV support system

·        4,000m² of APL built-up wall system with steel sinusoidal AP45HR in custom colour APL Dusk as the external profile

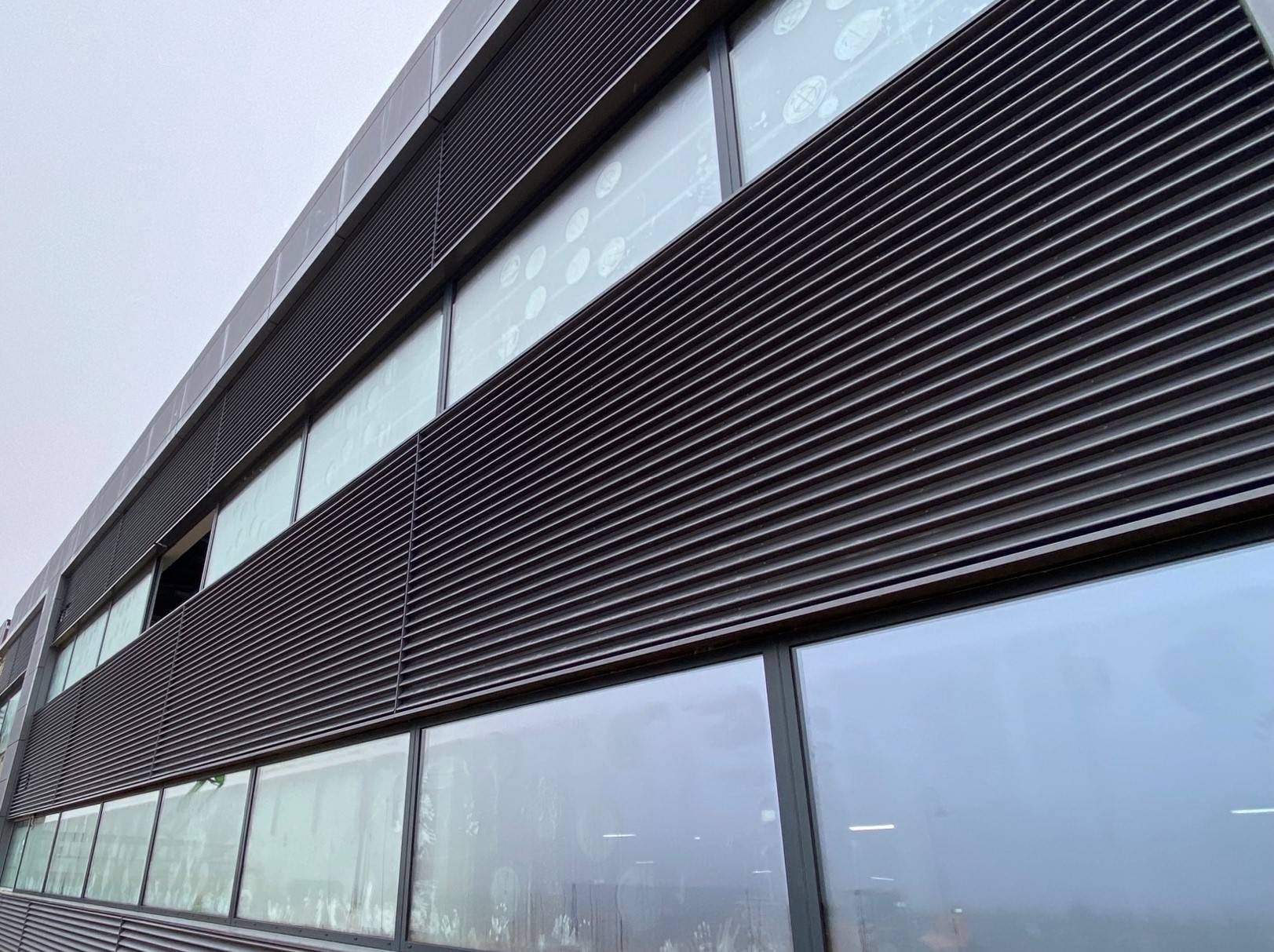

·        1,100m² of APL built-up wall system with steel louvre profile AP70LCP in custom colour APL Dusk as the external profile

·        500m² of APL Slimwall™ CPS/SSF routed flat panel system in aluminium with a Class 2 PPC costing in custom colour APL Dusk

·        LB4 live louvre system

·        APL Tritherm™ GALV sub-framing

·        All flashings, fixings and accessories

Building Location:

·        Ely
